Exploded Views And Parts List - Toshiba Ras-B13B2Kvg-E1 Service Manual

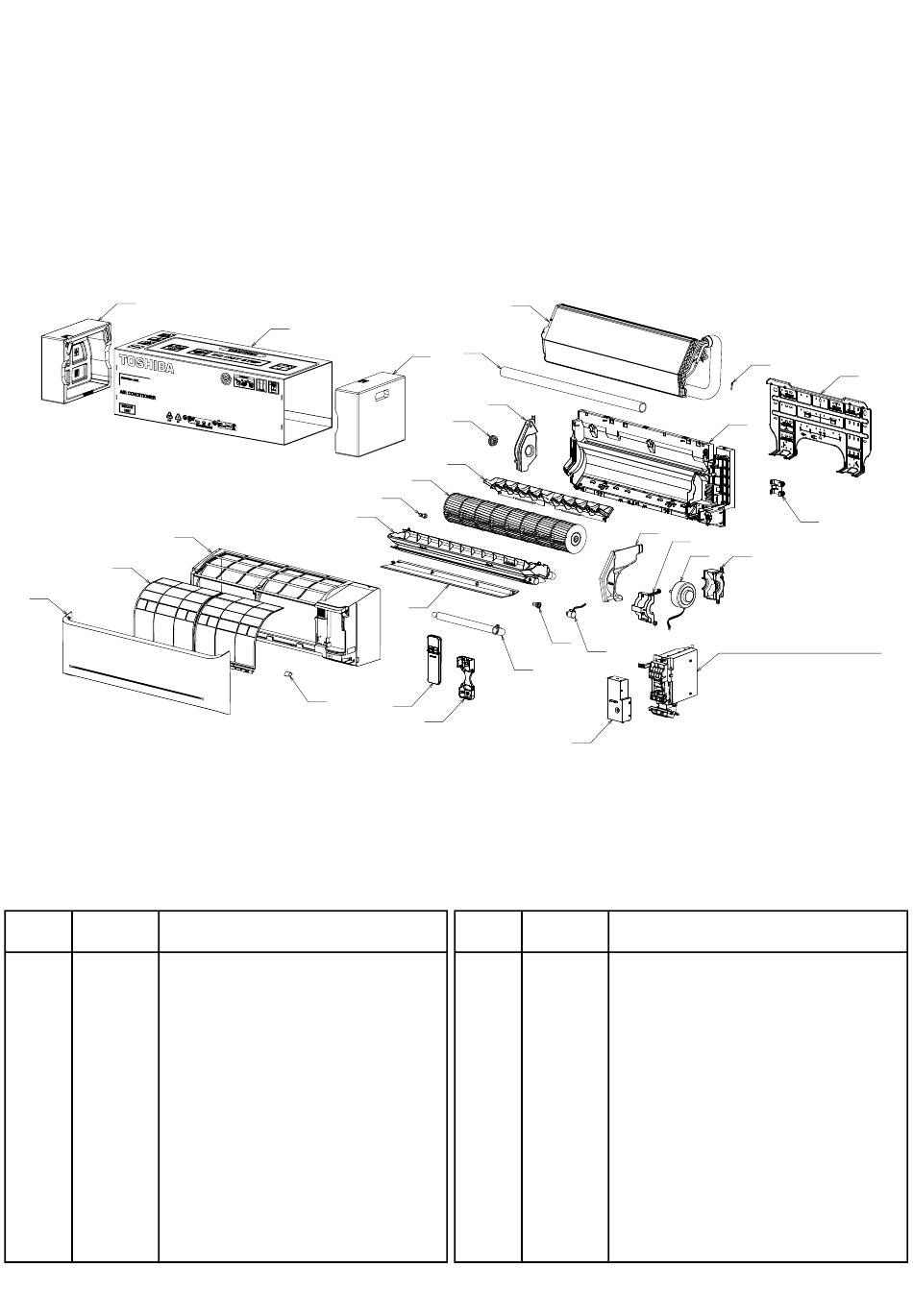

13-1. Indoor Unit
229
201
203
202
Location Part
No. No.
201 43T00863 FRONT PANEL ASSY
202 43T09613 GRILLE OF AIR INLET ASSY
203 43T80357 AIR FILTER
204 43T03417 BACK BODY ASSY
205 43T22343 VERTICAL LOUVER ASSY
206 43T72413 DRAIN PAN ASSY
207 43T22345 HORIZONTAL LOUVER
208 43T70321 DRAIN HOSE
209 43T79322 DRAIN CAP
210 43T21546 STEPPING-MOTOR (24BYJ48-STHL)
211 43T21543 FAN-MOTOR(WDF-340-30CA)
212 43T20344 CROSS FLOW FAN ASSY
213 43T39365 BASE BEARING
214 43T22312 BEARING ASSY, MOLD
215 43T39364 MOTOR COVER

13. EXPLODED VIEWS AND PARTS LIST

227
209
206
207
232
225
Description
218
221
228
213
214
205
212
237
208
226
224
Location Part
No. No.
216 43T39441
217 43T39369
218 43T44830
220 43T19333
221 43T11341
222 43T82332
223 43T49368
224 43T62360
225 43T66433
226 43T83305
227 43T91305
228 43T91306
229 43T91307
232 4301V149
237 4301V148
- 107 -
220
204
215
217
211 216
210
ELECTRICAL PARTS ASSEMBLY
Description
MOTOR BAND BACK ASSY
MOTOR BAND FRONT
REFRIGERANT CYCLE ASSEMBLY
HOLDER, SENSOR
PIPE-SHIELD
INSTALLATION PLATE
PIPE HOLDER
TERMINAL COVER ASSY
WIRELESS REMOCO (WH-TG01NE)
HOLDER, REMOTE CONTROL
PACKING SLEEVE
PACKING CUSHION RIGHT
PACKING CUSHION LEFT
CAP-SCREW
COVER-AXIS
222
223
