Guidelines
for unit
installation
141021

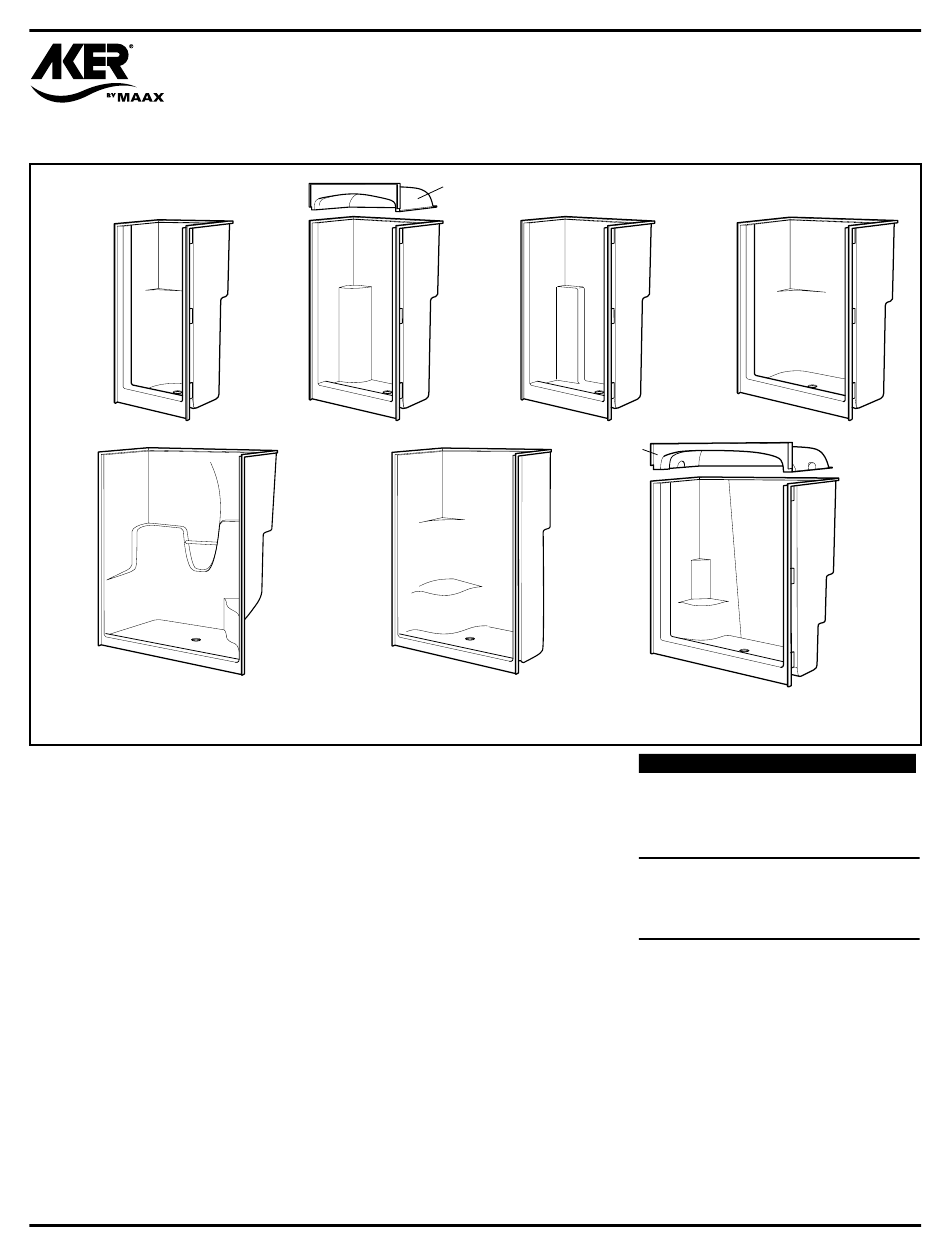

S-32
141134
SHW-36
141036
SHLS-60 / SHRS-60 (Shown)

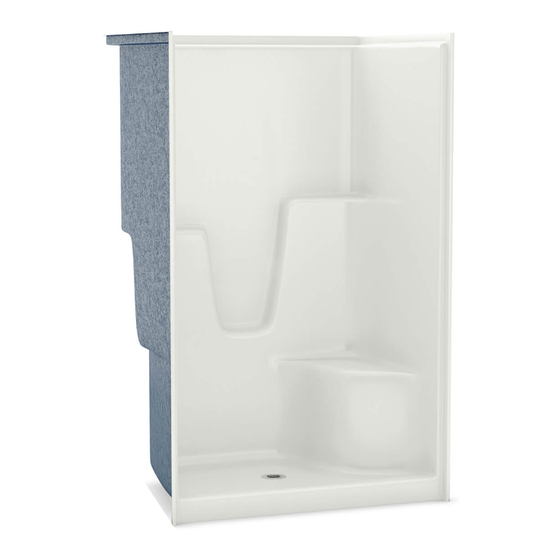

141033
SHLS-48 / SHRS-48
these guidelines are recommended by Maax
Bath inc. (hereafter "MaaX") for the proper
installation of their product. a careful review
of these procedures (and any referenced
publications) before starting is important in
avoiding unnecessary problems resulting in
an improper assembly or installation.
NOTE: all drawings in this publication are
typical, and may appear different than the
actual items being installed. in addition,
optional items may be shown on the units
which may not have been ordered on the
unit being installed.
141021
141022
s-32
s-36
141033
sHls/rs-48 sHls/rs-60
141022
S-36
141135
RS-HW48
LS-HW48 (Shown)
NS-HW48
Special Notes to Installer
Üit is the sole responsibility of the installer
to determine, prior to the installation, the
requirements necessary for compliance
with all codes involving the unit or the
installation!
Üall paperwork packaged with the unit and
any associated options or accessories
should be saved and presented to the
homeowner upon completion of the
installation!
Üall published unit dimensions are for
reference only. Any critical dimensions
required for installation should be
taken directly from the unit being
installed!
Üany independent changes made to the
unit (or to any options and accessories
supplied with the unit) beyond those
required for normal installation can void
all warranties! (refer to warranties for
further information.)
141025
s-42
141036
Optional
Unit Cap
141157
SH-4242
Optional
Unit Cap
141027
S-48
141029
S-60 (Shown)
Shower Modules
141026
141027
ns-48
s-48
141134
141135
sHW-36
sHW-48
141025
S-42
141026
NS-48
Inspection Guidelines
a careful check of the unit should be
conducted upon receipt. notify your supplier
immediately if any questions or problems are
encountered during this process.
DO NOT INSTALL ANY UNIT
WITHOUT FIRST ADDRESSING
QUESTIONS WHICH ARISE DURING
THE INSPECTION!
Basic Module Check
ü Check that the unit drain corresponds to
the bathroom drain location.
ü Check for unit surface damage.
ü Check unit color for coordination to
other bathroom fixtures.
ü Check for proper options and accessories.
Options/Accessories Check
an individual check list is included with
the assembly and installation guidelines of
factory authorized options. refer to listed
publications for further information before
continuing.
Page 1
141029
s-60
141157
sH-4242
10023055
