2.3 Position

Indoor Unit
 Install the indoor unit level on a strong wall that
is not subject to vibrations.
 The inlet and outlet ports should not be
obstructed. The air should be able to blow all
over the room.
 Do not install the unit near a source of heat,
steam, or flammable gas.
 Do not install the unit in places that are too
windy or dusty.
Do not install the unit where people often pass.

Select a place where the air discharge and
operating sound level will not disturb the
neighbors.
Install the unit in a location that simplifies the

connection process for the indoor and outdoor
units.
Install the unit where it is easy to drain the

condensed water.
Check the machine operation regularly and

leave the necessary spaces as shown in the
picture.
Install the indoor unit where the filter can be

easily accessible.
Outdoor Unit
 Do not install the outdoor unit near sources of
heat, steam, or flammable gas.
 Do not install the unit in places that are too
windy or dusty.
 Do not install the unit where people often pass.
Select a place where the air discharge and
operating sound level will not disturb the
neighbors.
 Avoid installing the unit where it will be exposed
to direct sunlight. If needed, use protection that
will not interfere with the air flow.
 Leave spaces, as shown in the picture, for the
air to circulate freely.
 Install the outdoor unit in a safe and solid place.
 If the outdoor unit is subject to vibration, place
rubber gaskets onto the feet of the unit.
 Install the indoor unit in a room that will be air
conditioned. Avoiding installation in corridors or
communal areas.
 Install the indoor unit at a height of at least 8ft
from the ground. Minimum space to be left
(mm) showing in the picture.
Air Conditioner Service Manual

2.4 Electricity and Wiring

Safety Precautions
1) Follow the electric safety regulations when
installing the unit.
2) According to the local safety regulations, use
qualified power supply circuit and air switches.
3) Ensure the power supply matches with the
requirement of air conditioner. Unstable power
supply or incorrect wiring may result in electric
shock, fire hazard, or malfunction. Install proper
power supply cables before using the air
conditioner.
Select the power cord according to the following
specifications sheet:
Appliance Amps(A)

2.5 IDU Installation

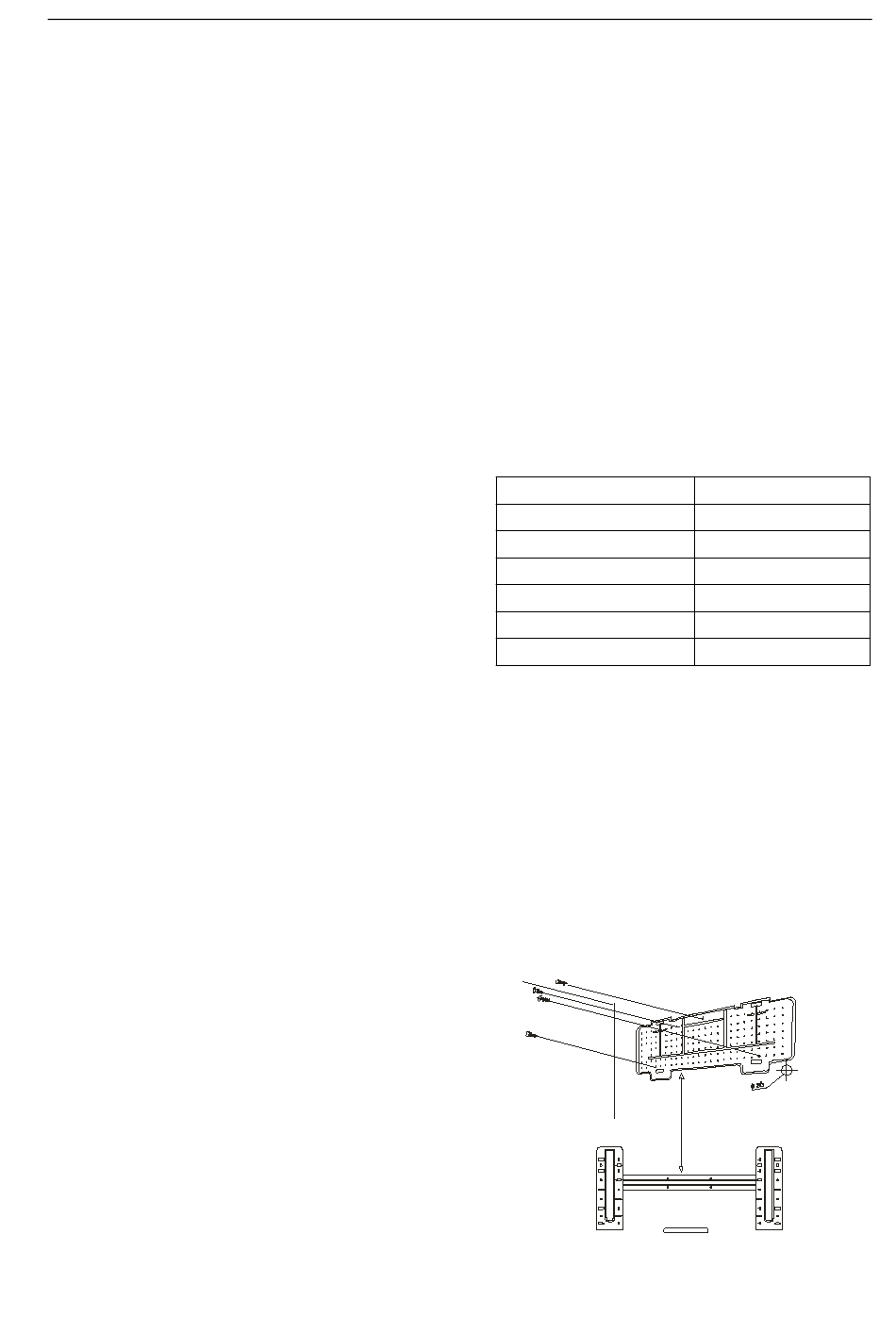

2.5.1 Installation of the Mounting Plate
1) Using a level, place the mounting plate in a
perfect square position vertically and
horizontally.
2) Drill 1.3in deep holes in the wall to fix the plate.
3) Insert the plastic anchors into the hole.
4) Fix the mounting plate by using the provided
tapping screws.
5) Check that the mounting plate is correctly fixed.
Wire Size (mm
5 0.75/0.0012
10 1.0/0.0016
13 1. 5/0.0023
18 1.6/0.0025
25 2.0/0.0031
30 2.5/0.0039
/in )
2 2
