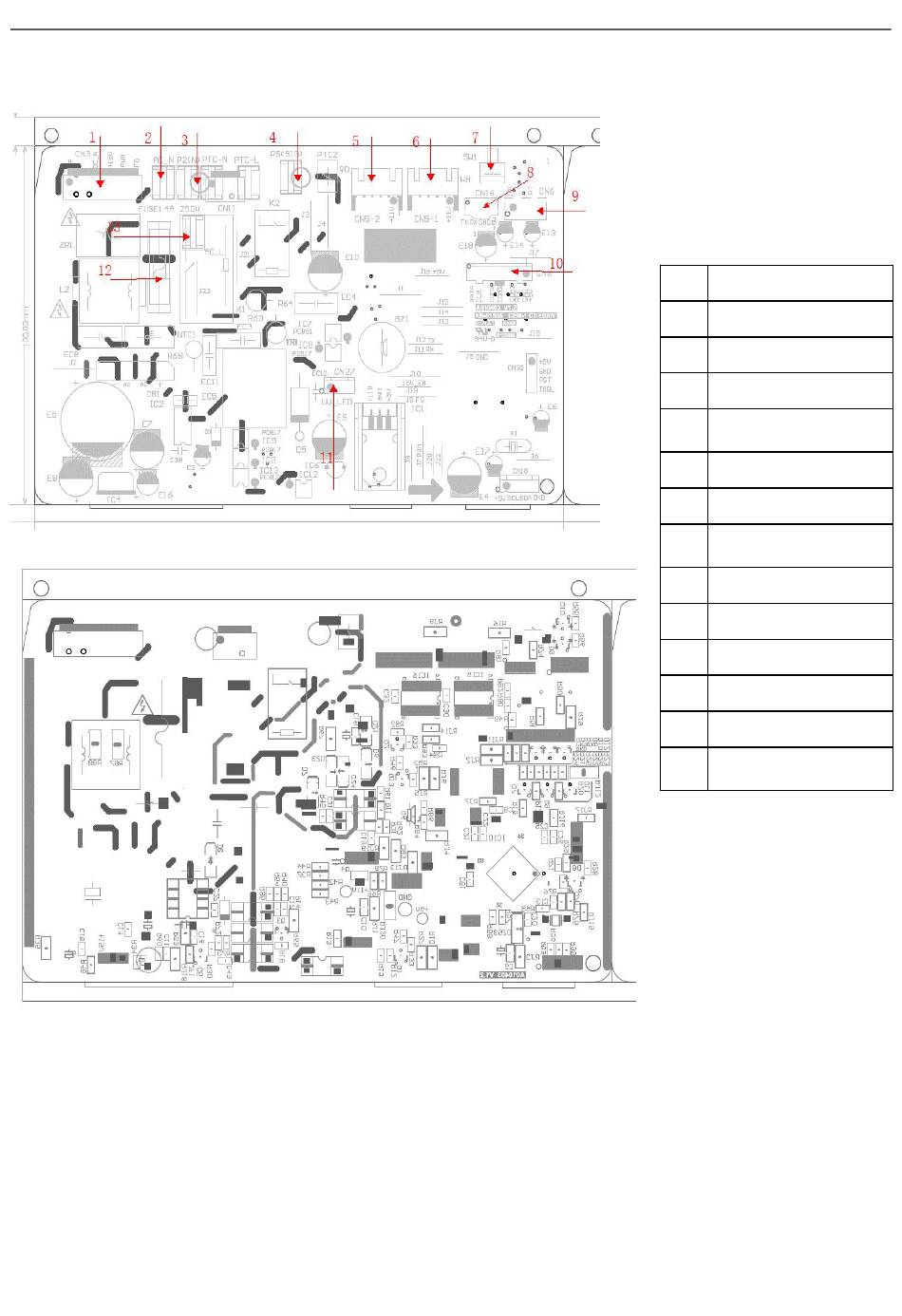

Indoor PCB

WYT024GLSI20RL | WYT030GLSI20RL | WYT036GLSI20RL
Top view
Bottom view
Air Conditioner Service Manual
1
ODU AC Power Output
2
Fuse
3
ODU AC Power Input
4
AC Motor Driver
IDU/ODU Wiring
5
Connection-N Connector
6
Power Supply-N Connector
IDU/ODU Communication
7
Wiring
8
AC Motor Feedback
9
Up-Down Swing Connector
10
Left-Right Swing Connector
11 Display
12
Emergency Button
Temperature Sensor
13
Connector
14
Wi-Fi Connector
12
