Sealey SC10.V3 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. CONTENTS
Section 2. General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
Section 2.1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
Section 2.2. Technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
Section 3. Safety/Operational Instructions. . . . . . . . . . . . . . . . . . .2.
Section 4. Maintenance/Examination/Inspection. . . . . . . . . . . . . .2.
Section 5. Assembly and Storage. . . . . . . . . . . . . . . . . . . . . . . . .3.
Section 6. Owner's & Operator's Responsibilities . . . . . . . . . . . . .3.
2. GENERAL
2.1 IDENTIFICATION
Supplier: Sealey Power Products,
Kempson Way,
Suffolk Business Park,
Bury St Edmunds,
Suffolk, IP32 7AR.
Model No: SC10.V3

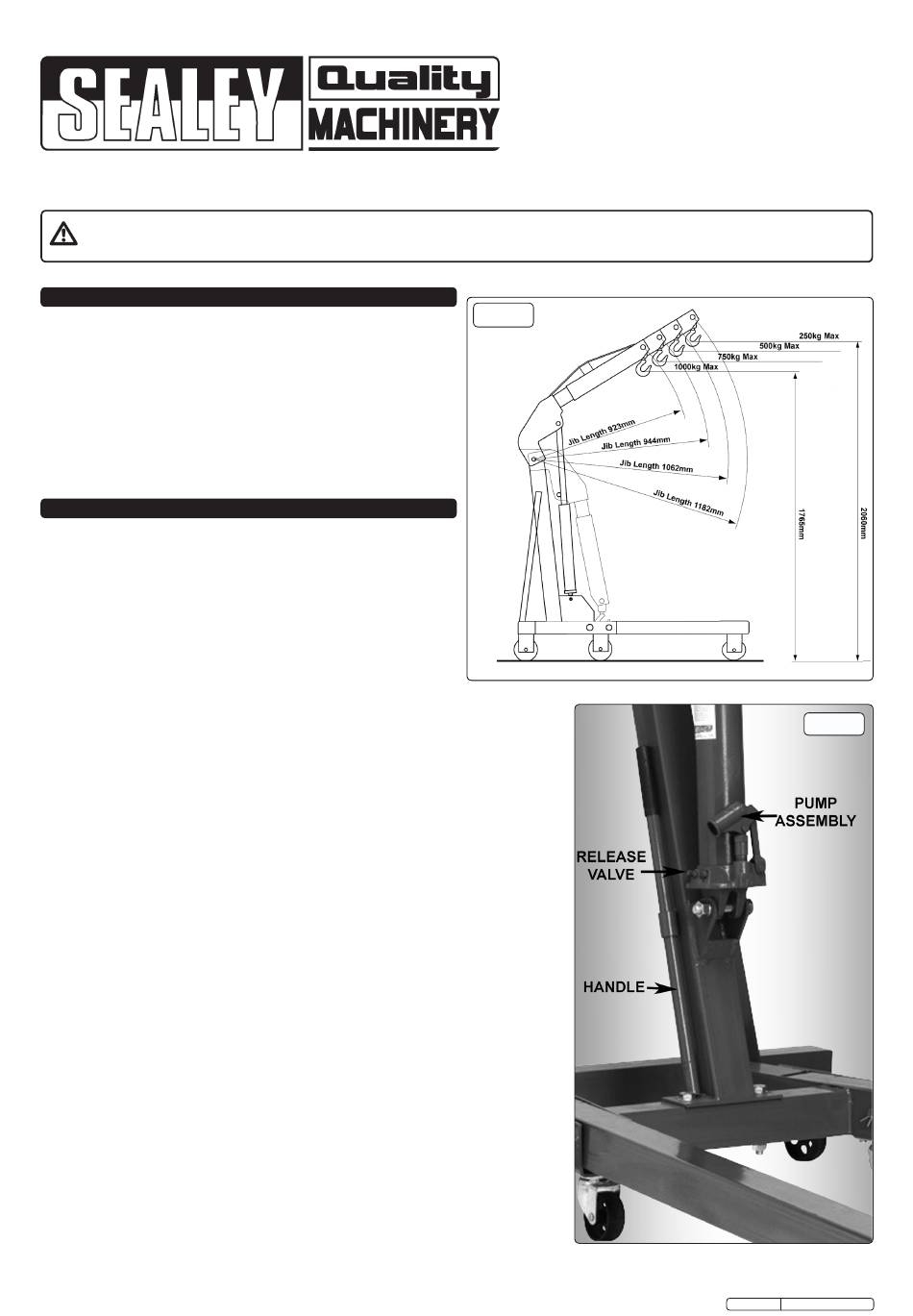

2.2 TECHNICAL DATA (refer to fig.1)
2.2.1 Rated Capacity
Safe Working Load (SWL) 1t (tested to 50% overload).
Working Load Limit (WLL) 1t (tested to 50% overload).
Lifting Cap. in Position 1:. . . . . . . . . . . . . . . . . . . .1000kg
Lifting Cap. in Position 2:. . . . . . . . . . . . . . . . . . . .750kg
Lifting Cap. in Position 3:. . . . . . . . . . . . . . . . . . . .500kg
Lifting Cap. in Position 4:. . . . . . . . . . . . . . . . . . . .250kg
Maximum Lift Ht. at Minimum Jib Extn: . . . . . . . . .1765mm
Maximum Lift Ht. at Maximum Jib Extn: . . . . . . . .2060mm
Length of Jib Position 1: . . . . . . . . . . . . . . . . . . . .923mm
Length of Jib Position 2: . . . . . . . . . . . . . . . . . . . .944mm
Length of Jib Position 3: . . . . . . . . . . . . . . . . . . . .1062mm
Length of Jib Position 4: . . . . . . . . . . . . . . . . . . . .1182mm
Height of Frame: . . . . . . . . . . . . . . . . . . . . . . . . . .190mm
Length of Frame: . . . . . . . . . . . . . . . . . . . . . . . . . .1640mm
Overall Height: . . . . . . . . . . . . . . . . . . . . . . . . . . . .1415mm
Maximum Width of Frame: . . . . . . . . . . . . . . . . . .1014mm
Width Inside Frame:. . . . . . . . . . . . . . . . . . . . . . . .878mm
Distance between Centres of Rear Wheels: . . . . .640mm
Weight:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77kg
2.2.2 Design Capability: Test Load 50% overload.
2.2.3 For a description of in-service and out-of-service conditions
see Section 3 Safety, Section 4 Maintenance and Section 6
Owner's & Operator's Responsibilities.
2.2.4 The crane is fitted with a bypass valve that will prevent the
ram from over extending.
2.2.5 For applications see Section 3 Safety.
2.2.6 For control system, see fig.2 for release valve, pump
assembly and handle. Operation is explained in Section 3.2.
2.2.7 For ground condition requirements, see Section 3 Safety.
2.2.8 For information on parts and materials requiring specialised
repair techniques see Section 4 Maintenance.
INSTRUCTIONS FOR:

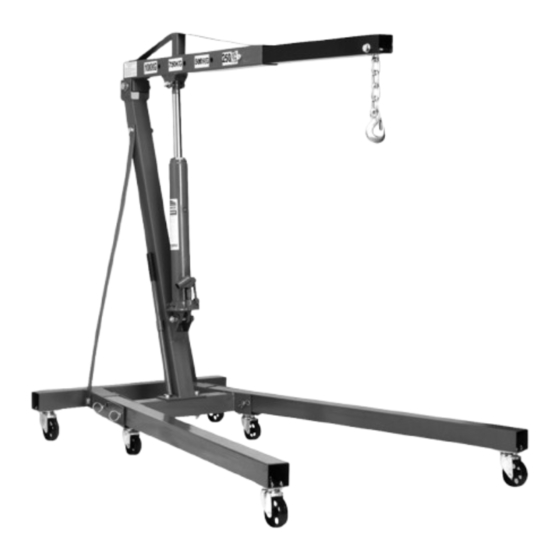

FOLDING WORKSHOP CRANE
1TONNE 'KD' TYPE
MODEL No:
fig.1
Page No.
PAGE 1
Original Language Version
SC10.V3
SC10.V3 Issue: 1 - 25/04/12
fig.2
