LUTEC 6940403012 Owner's Manual

Led solar post lantern
Hide thumbs

Advertisement

Table of Contents

LED SOLAR POST LANTERN
Owners Manual
MODEL #6940403012
IMPORTANT,
RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6940403012 and is the answer not in the manual?

Questions and answers

Related Manuals for LUTEC 6940403012

Summary of Contents for LUTEC 6940403012

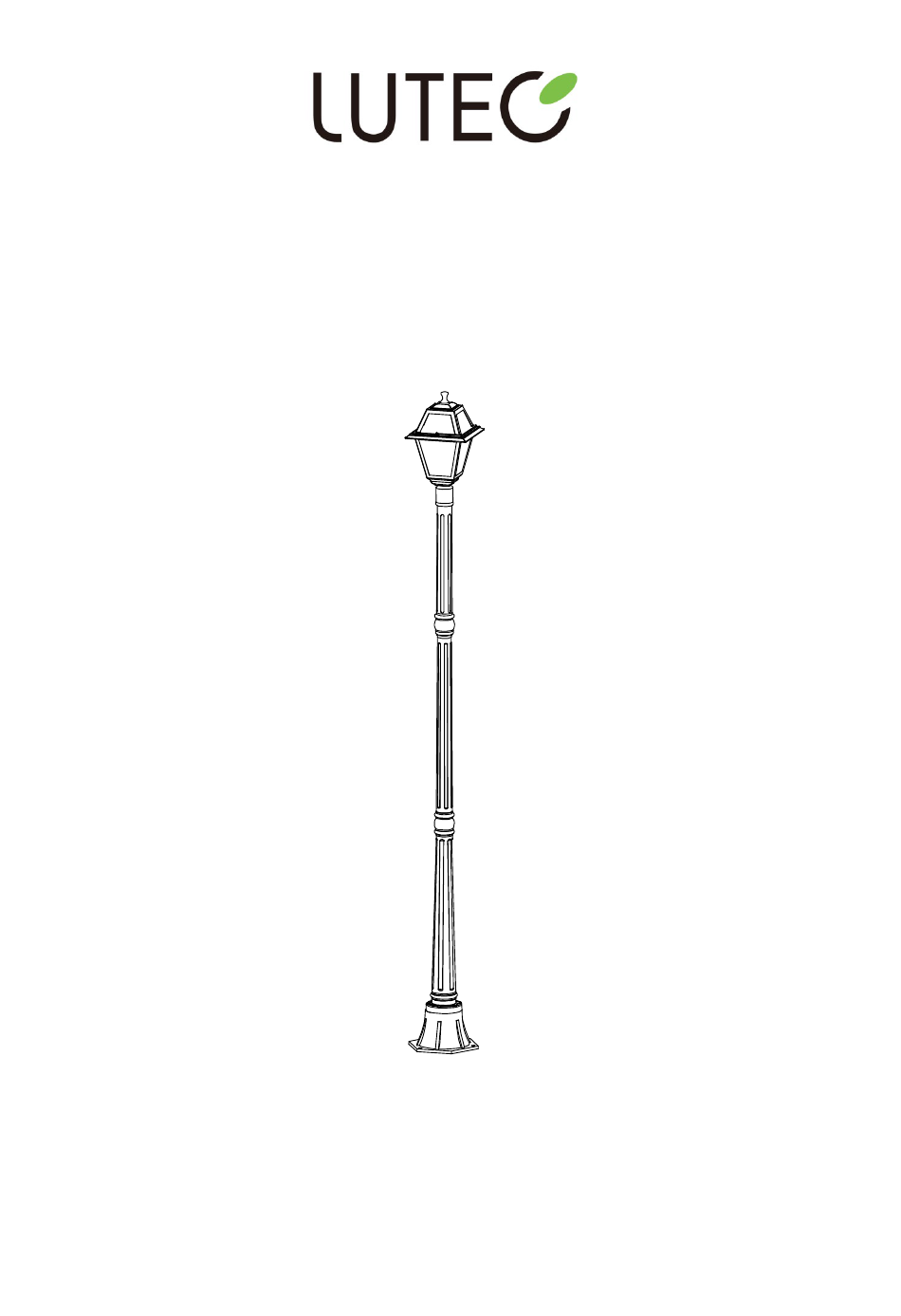

  • Page 1 LED SOLAR POST LANTERN Owners Manual MODEL #6940403012 IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...

  • Page 2: Package Contents

    PACKAGE CONTENTS PART DESCRIPTION QUANTITY Solar Panel Top Lamp Head Top Pole Middle Pole Bottom Pole Base...

  • Page 3: Hardware Contents

    HARDWARE CONTENTS (not shown actual size) Screw Expansion Bolt Allen Wrench Bulb Qty. 3 Qty. 3 Qty. 1 Qty. 1 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING: The solar panel “Post Light” requires sunlight to charge the batteries and should be installed in an area with a minimum of 8 hours of direct sun exposure.
  • Page 4 ASSEMBLY INSTRUCTIONS Detach the solar panel top (A) from lamp head (B) by rotating the nuts counterclockwise. Install the bulb (DD). Hardware Used Bulb 3. Turn ON the switch in solar panel top (A). Attach solar panel top (A) to lamp head (B) with the previously removed two nuts.
  • Page 5 Mark 3 points on the ground by using the base (F) holes. 6. Drill with a suitable drill bit (Ø14mm/0.5in.). 7. Remove the preassembled nuts and washers from the expansion bolts (AA). Then put the expansion bolts (AA) into the drill holes. Leave 50mm outside. 50mm 1.97in.
  • Page 6 Rotate the top pole (C) clockwise onto the middle pole (D). Rotate the middle pole (D) clockwise onto the bottom pole (E). Secure the bottom pole (E) to the base (F) with the screws (BB) by using the Phillips screwdriver. Hardware Used Screw 11.
  • Page 7 MAXIMIZING SOLAR LIGHT POST PERFORMANCE 8 hrs Charging: Charge in direct sunlight for 8-10 hours. Location: Choose location with minimum 6-8 hours sunlight. When choosing a spot for your solar light, ensure that the device is not placed near nighttime light sources such as porch lighting, landscape lighting or street lighting.
  • Page 8 BATTERY/BULB REPLACEMENT Warning: The supplied LED bulbs have been specially developed for use with the solar post light model 6940403012 and must be replaced with model 170200150. The use of any other type bulbs will not function in the fixture.
  • Page 9 Remove the old battery. If the LED bulb is broken, remove the broken solar LED bulb and replace. 5. Insert new battery into battery compartment. 6. Attach the battery cover to solar panel top with battery cover screw removed in step 3. Tighten with a Phillips screwdriver (not included).

  • Page 10: Care And Maintenance

    LUTEC USA LLC.. This warranty is void if damage or defect has resulted from accident, abuse, misuse or faulty repair.
  • Page 11 LUTEC USA LLC: 149B Houston Rd Troutman NC 28166 Ningbo UTEC Electric Co.,LTD CN8, Far East Industry Park, Yuyao, China www.lutec.com service@lutec.com Please call our Customer Service line at 877-714-8669 for assistance Monday - Friday 9 a.m. to 5 p.m. EST...
