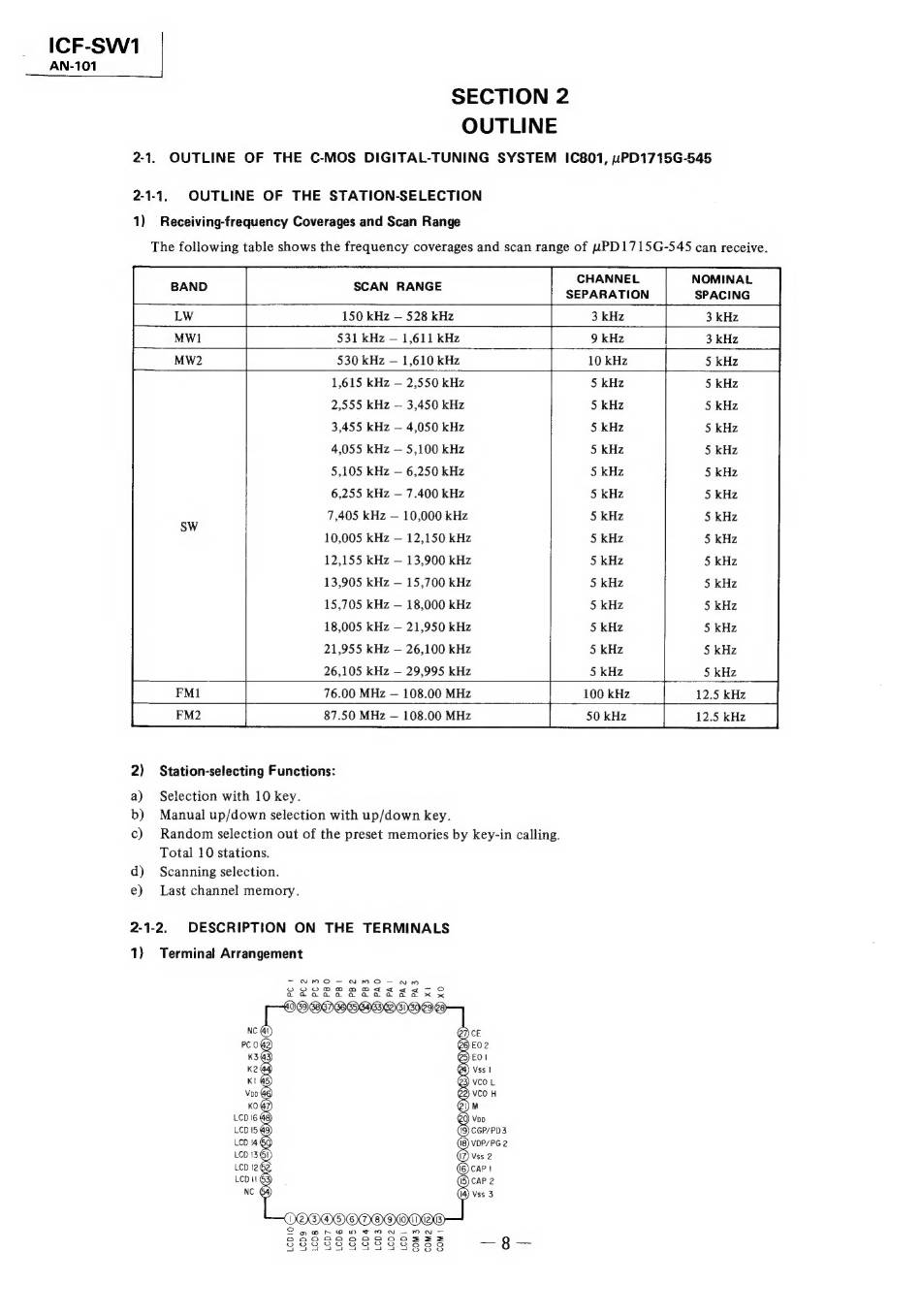

SECTION 2
_ ICF-SW1
AN-101
OUTLINE
2-1. OUTLINE OF THE C-MOS DIGITAL-TUNING SYSTEM 1C801, u.PD1715G-545
2-1-1. OUTLINE OF THE STATION-SELECTION
1) Receiving-frequency Coverages and Scan Range
The following table shows the frequency coverages and scan range of uUPD1715G-545 can receive.
CHANNEL NOMINAL
SEPARATION SPACING
150 kHz — 528 kHz 3 kHz 3 kHz
531 kHz — 1,611 kHz 9 kHz 3 kHz
530 kHz — 1,610 kHz 10 kHz
1,615 kHz — 2,550 kHz 5 kHz
2,555 kHz — 3,450 kHz $5 kHz
3,455 kHz — 4,050 kHz 5 kHz
4,055 kHz — 5,100 kHz 5 kHz
5,105 kHz — 6,250 kHz 5 kHz
6,255 kHz — 7.400 kHz 5 kHz
7,405 kHz — 10,000 kHz 5 kHz
10,005 kHz — 12,150 kHz 5 kHz
12,155 kHz — 13,900 kHz 5 kHz
13,905 kHz — 15,700 kHz S kHz
15,705 kHz — 18,000 kHz 5 kHz
18,005 kHz — 21,950 kHz 5 kHz
21,955 kHz — 26,100 kHz 5 kHz
26,105 kHz — 29,995 kHz 5 kHz
76.00 MHz — 108.00 MHz | 100 kHz 12.5 kHz
87.50 MHz — 108.00 MHz 50 kHz 12.5 kHz
SCAN RANGE
2) Station-selecting Functions:
a) Selection with 10 key.
b) Manual up/down selection with up/down key.
c) Random selection out of the preset memories by key-in calling.
Total 10 stations.
d) Scanning selection.
e) Last channel memory.
2-1-2, DESCRIPTION ON THE TERMINALS
1) Terminal Arrangement
PBI PB2 PB3 PAO PA |
mo
oo
aa
j ee
Qi)
@0) Voo
(19) CGP/PD3
(8) VDP/PG 2
Vss 2
@©®caPi
(I5) CAP 2
(14) Vss 3
®OOQOOOOHO®
~on Fyn — MON —
aannaanananss=s
sgeeeeesss cae
