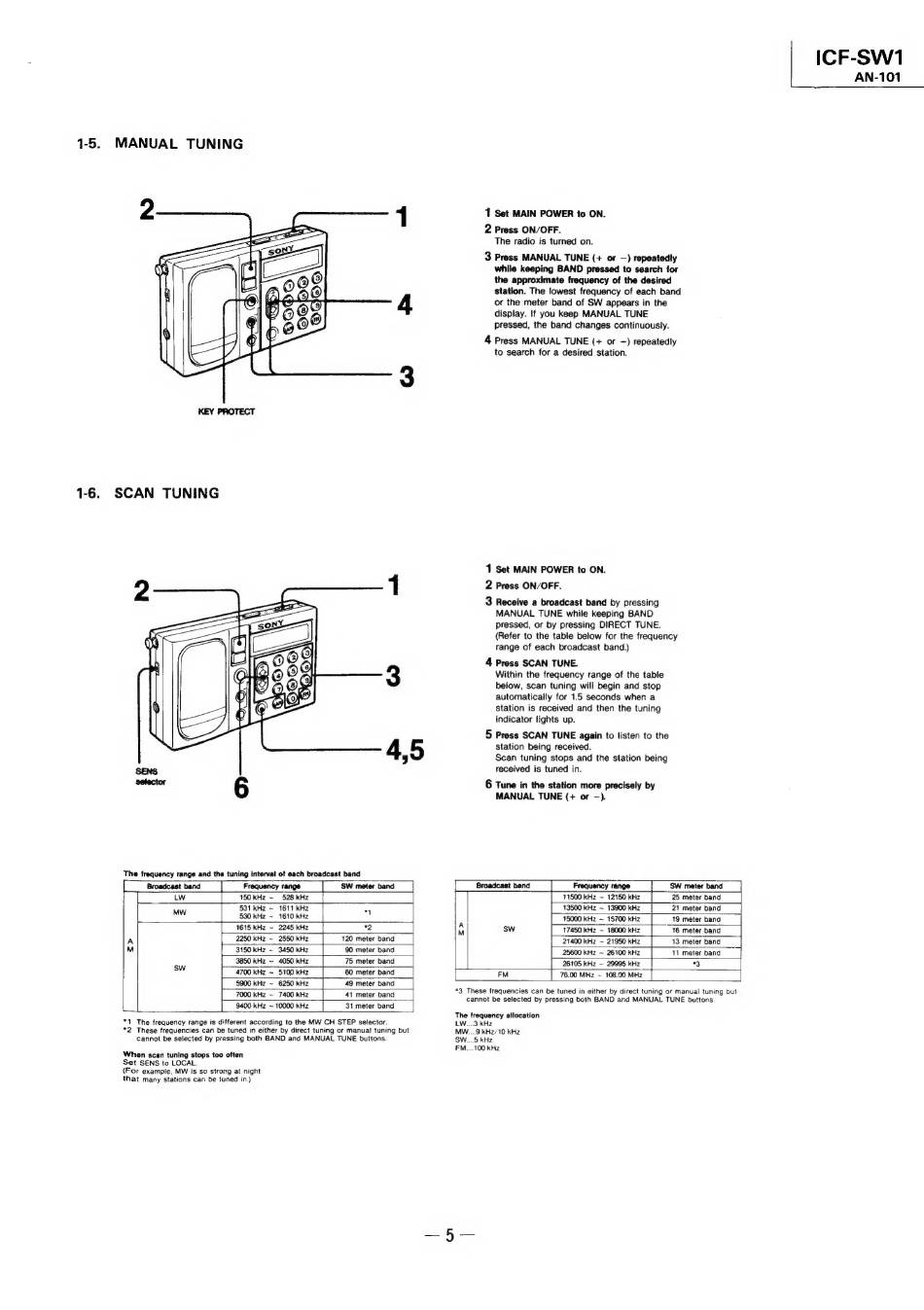

1-5. MANUAL TUNING
1-6. SCAN TUNING
The frequency range and the tuning interval of each broadcast band
Broadcast band = Frequency range L SW meter band
1 Set MAIN POWER to ON.
2 Press ON/OFF.
The radio is turned on.
3 Press MANUAL TUNE (+ or —) repeatedly
while keeping BAND pressed to search for
the approximate frequency of the desired
station. The lowest frequency of each band
or the meter band of SW appears in the
display. If you keep MANUAL TUNE
pressed, the band changes continuously.
4 Press MANUAL TUNE (+ or —) repeatedly
to search for a desired station.
1 Set MAIN POWER to ON.
2 Press ON/OFF.
3 Receive a broadcast band by pressing
MANUAL TUNE while keeping BAND
pressed, or by pressing DIRECT TUNE.
(Refer to the table below for the frequency
range of each broadcast band.)
4 Press SCAN TUNE.
Within the frequency range of the table
below, scan tuning will begin and stop
automatically for 1.5 seconds when a
Station is received and then the tuning
indicator lights up.
5 Press SCAN TUNE again to listen to the
station being received.
Scan tuning stops and the station being
received is tuned in.
6 Tune in the station more precisely by
MANUAL TUNE (+ of —).
Frequency range SW meter band
LW 150 kHz ~ 528 kHz
531 kHz ~ 1611 kHz
11500 kHz ~ 12150 kHz 25 meter band
13500 kHz ~ 13900 kHz 21 meter band
15000 kHz ~ 15700 kHz 19 meter band
sw 17450 kHz ~ 18000 kHz 16 meter band
=>
did 530 kHz ~ 1610 kHz oa
1615 KHz ~ 2245 kHz "2
A 2250 kHz ~ 2550 kHz 120 meter band
M 3150 kHz ~ 3450 kHz 90 meter band
'Wy 3850 KHz ~ 4050 kHz 75 meter band
4700 kHz ~ 5100 kHz 60 meter band
§900 kHz ~ 6250 kHz 49 meter band
7000 KHz ~ 7400 kHz 41 meter band
9400 kHz ~ 10000 kHz 31 meter band
a
*1 The frequency range is different according to the MW CH STEP selector.
"2 These frequencies can be tuned in either by direct tuning or manuat tuning but
cannot be selected by pressing both BAND and MANUAL TUNE buttons.
When scan tuning stops too often
Set SENS to LOCAL.
(For example, MW is so strong at night
that many stations can be tuned in.)
21400 kHz ~ 21950 kHz 13 meter band
25600 kHz ~ 26100 kHz
11 meter band
26105 kHz ~ 29995 kHz 3
FM 76.00 MHz ~ 108.00 MHz
*3 These frequencies can be tuned in either by direct tuning or manual tuning but
cannot be seiected by pressing both BAND and MANUAL TUNE buttons.
The frequency allocation
LW....3 kHz
MW....9 kHz/10 kHz
SW....5 kHz
FM....100 kHz
