Exploded Views And Parts List - Sony An-101 Service Manual

No.
ONPWNrE
WO OID
10
11
12
13
14
7-1.
Part No.
X-3899-501-1
3-899-527-01
3-899-506-01
*3-899-575-01
3-899-549-01
3-899-535-01
3-899-561-01
3-899-560-01
3-899-551~01
*3-899-570-01
3-899-550-01
3-899-534-01
3-899-511-01
3-899-531~-01
3-899-531-11
3-899-531-21
3-899-531-31
Description

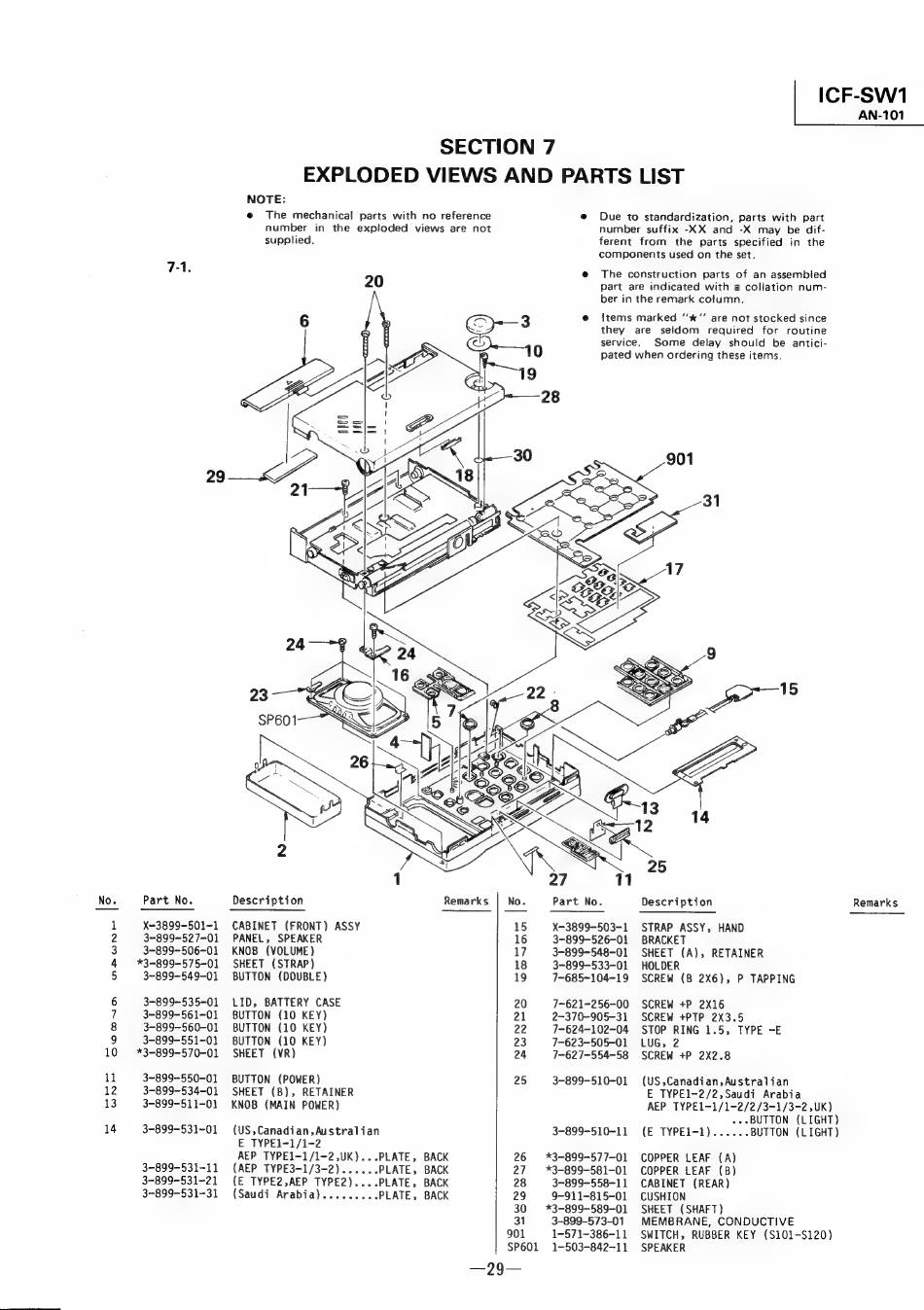

SECTION 7
ICF-SW1
EXPLODED VIEWS AND PARTS LIST
NOTE:
@ The mechanical parts with no reference
number in the exptoded views are not
supplied.
CABINET (FRONT) ASSY
PANEL, SPEAKER
KNOB (VOLUME)
SHEET (STRAP)
BUTTON (DOUBLE)
LID, BATTERY CASE
BUTTON (10 KEY)
BUTTON (10 KEY)
BUTTON (10 KEY)
SHEET (VR)
BUTTON (POWER)
SHEET (B), RETAINER
KNOB (MAIN POWER)
(US, Canadian, Australian
E TYPE1-1/1-2
AEP TYPE1-1/1-2,UK)...PLATE, BACK
(AEP TYPE3-1/3-2)......PLATE, BACK
(E TYPE2,AEP TYPE2)....PLATE, BACK
(Saudi Arabia).........PLATE, BACK
Remarks No.
26
27
28
29
30
31
901
SP601
AN-101
Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
The construction parts of an assembled
Part are indicated with a collation num-
ber in the remark column,
items marked ''*'' are not stocked since
they are seldom required for routine
service, Some delay should be antici-
pated when ordering these items.
Part No. Description Remarks
X-3899-503-1 STRAP ASSY, HAND
3-899-526-01 BRACKET
3-899-548-01 SHEET (A), RETAINER
3-899-533-01 HOLDER
7-685-104-19 SCREW (B 2X6), P TAPPING
7-621-256-00 SCREW +P 2X16
2-370-905-31 SCREW +PTP 2X3.5
7~-624-102-04 STOP RING 1.5, TYPE -E
7-623-505-01 LUG, 2
7-627-554-58 SCREW +P 2X2.8
3-899-510-01 (US,Canadian,Australian
E TYPE1-2/2,Saudi Arabia
AEP TYPE1-1/1-2/2/3-1/3~2 ,UK)
.- BUTTON (LIGHT)
3-899-510-11 (E TYPE1-1)...... BUTTON (LIGHT)
*3-899-577-01
*3-899-581-01
3-899-558-11
9-911-815-01
*3-899-589-01
3-899-573-01
1-571-386-11
1-503-842-11
COPPER LEAF (A)
COPPER LEAF (B)
CABINET (REAR)
CUSHION
SHEET (SHAFT)
MEMBRANE, CONDUCTIVE
SWITCH, RUBBER KEY (S101-S120)
SPEAKER
