Brake Pad/Disk Replacement; Brake Disk - KYMCO AGILITY 125 Service Manual

12
. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION

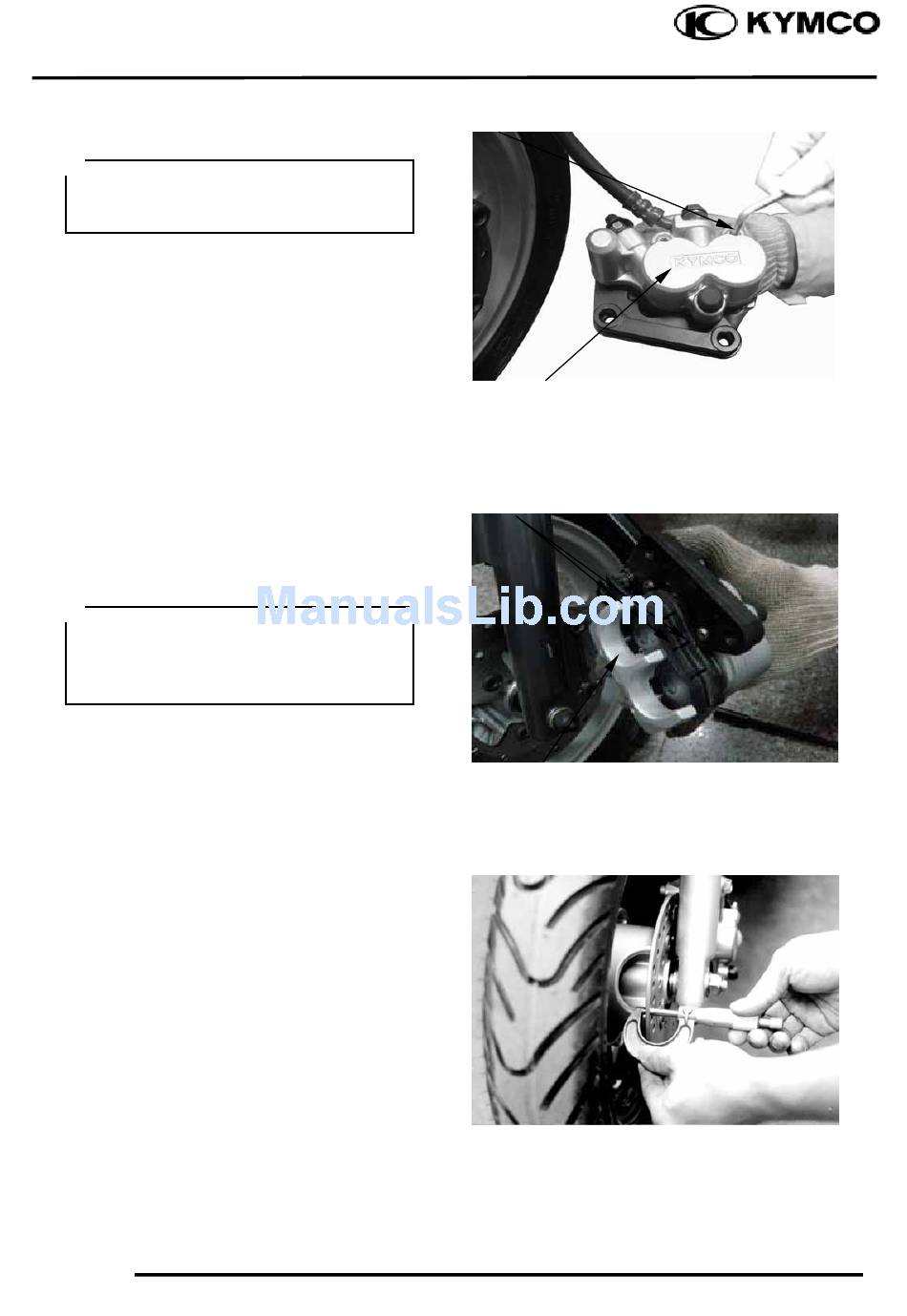

Brake Pad/Disk Replacement

The brake pads must be replaced as a
set to ensure the balance of the brake
disk.
Remove the two bolts attaching the brake
caliper.
Remove the brake caliper.
Remove the brake pad pins to remove the
brake pads.
Install the brake pads in the reverse order of
removal.
Tighten the brake pad pin bolts.
Torque: 1.5 2.0kgf-m
Keep grease or oil off the brake pads
to avoid brake failure.
Do not reuse the brake pad pin bolts
that have been removed.

Brake Disk

Measure the brake disk thickness.
Service Limit: 3.0mm
Measure the brake disk runout.
Service Limit: 0.3mm
12-11
Pad Pin
Front Brake Caliper
Brake Pads
Front Brake Caliper
AGILITY 50
