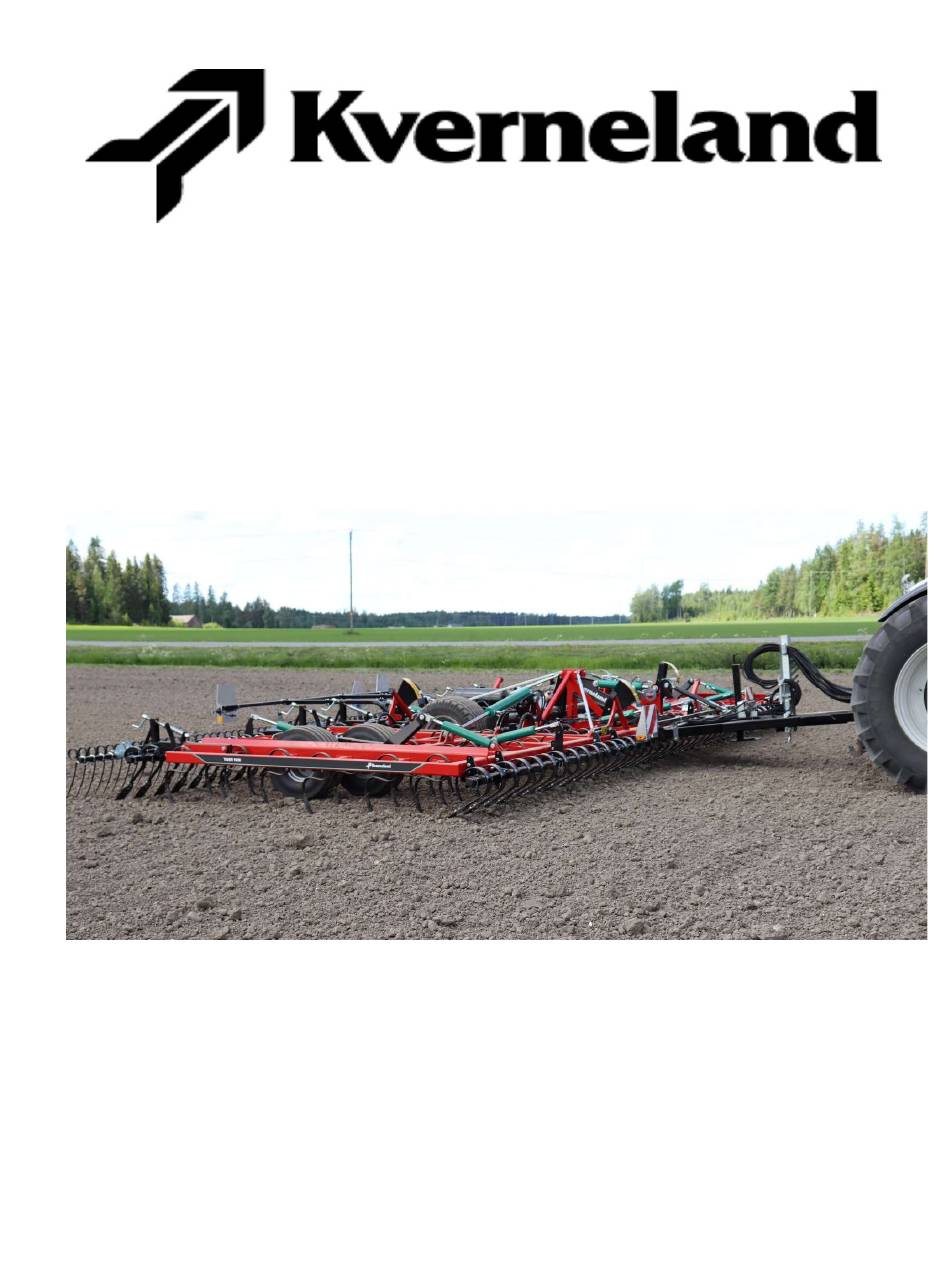

OPERATING INSTRUCTIONS
TIGER 900- 1000 SEEDBED CULTIVATORS
READ THIS MANUAL CAREFULLY BEFORE OPERATING
THE SEEDBED
12/2022
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TIGER 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Kverneland TIGER 1000

Summary of Contents for Kverneland TIGER 1000

  • Page 1 OPERATING INSTRUCTIONS TIGER 900- 1000 SEEDBED CULTIVATORS READ THIS MANUAL CAREFULLY BEFORE OPERATING THE SEEDBED 12/2022...

  • Page 2: Table Of Contents

    Contents INTRODUCTION ........................4 SAFETY GUIDELINES......................7 SETTING UP ........................12 4. HARROWING ........................24 MAINTENANCE ......................... 26 WARRANTY ........................33 EC DECLARATION OF CONFORMITY ................. 35...
  • Page 3 1. INTRODUCTION Intended use Technical specifications...

  • Page 4: Introduction

    KVERNELAND TIGER seedbed cultivators are available with a wide range of optional equipment to ensure optimal granular structure and level soil surface.
  • Page 5 TECHICAL SPECIFICATIONS Tiger 1000 Weight with rear harrow, kg 4050 4400 Number of tines Number of tine axles Draught requirement, hp Number of hydraulic outlets, single/double- acting -/4 Working depth control, H= hydraulic Number of wheels 300/65-12 - wing section Number of wheels 480/45-17 - middle section Frame length, m Transport width, m...
  • Page 6 2. SAFETY GUIDELINES Residual risks Symbols used in the operational manual Towing public roads...

  • Page 7: Safety Guidelines

    2. SAFETY GUIDELINES Residual risks...
  • Page 8 Symbols used in operational manual...
  • Page 9 DANGER Never service, adjust or clean a moving harrow. DANGER When the seed drill is hitched to the tractor, no personnel are allowed in the vicinity of the seed drill and, in particular, the area under raised wing sections. Observe the minimum safe distance when operating the harrow hydraulics, even when it is standing still.
  • Page 10 CAUTION Collect oil waste and dispose of it appropriately in accordance with national regulations. CAUTION If oil is spilled on the ground, absorb it with absorption material, such as turf, to prevent the oil spill from spreading. Handle the absorption material in accordance with regulations.
  • Page 11 3. SETTING UP Lowering/lifting the drawbar Mounting and hydraulics Brakes Adjusting the harrow  Adjusting the longitudinal level  Adjusting the middle and wing sections  Depth adjustment  Working depth indicator  Using the front levelling boards  Use of tilling accessories Troubleshooting...

  • Page 12: Setting Up

    3. SETTING UP Follow the tractor’s safety instructions when connecting or disconnecting the harrow. Connecting or disconnecting the harrow poses a crushing hazard. Disconnecting and connecting pressurised hoses to the tractor is prohibited. Lowering/lifting the drawbar The harrow drawbar can be lifted up (e.g. for winter storage) to make the machine more compact. ...
  • Page 13 Follow the tractor’s safety instructions when connecting or disconnecting the harrow. Connecting or disconnecting the harrow poses a crushing hazard. Disconnecting and connecting pressurised hoses to the tractor is prohibited.  Hitch the machine only to the tractor's trailer hitch ...
  • Page 14  Open the wing section ball valve (1)  Lift the machine onto the wheels  Move the tractor and the harrow to a flat, firm surface  Lower the wing sections down. Make sure the area of reach of the wing sections is free of obstacles! The harrow must be in the transport position ...
  • Page 15 3. Using the tractor valve, fully extend the three front levelling board cylinder piston rods (1). o 900 and 1000: There are four cylinders. 4. Maintain pressure for approximately 30 seconds. o Run the tractor engine at low rpm. 5. Also do steps 3 and 4 for the three rear levelling board cylinders (if equipped). o When the rod is fully extended, oil is able to flow past the cylinder piston into the next cylinder.
  • Page 16 Release valve button (2) functions:  pressing the button (up direction) releases the brakes  pulling the button out (down direction) keeps the brakes engaged if the compressed air tank is pressurised Regardless of the button’s position, the brakes will release when the pressure in the harrow’s compressed air tank decreases.
  • Page 17 ADJUSTING THE LONGITUDINAL LEVEL 1. Unlock the drawbar top link by turning the locking part (1) up. 2. Turn the top link (4) with its handle (3).  Shortening the top link will lower the front end of the frame. ...
  • Page 18 1. Loosen the locking nut (2) at the end of the depth cylinder. 2. Adjust the length of the cylinder rod (1).  The locking nut key is 36 mm. The cylinder rod key is 24 mm. Extending the rod decreases the wing section working depth.
  • Page 19  Switch the operating valve to working depth (blue line in the picture) and fully retract the piston rods B-. Next, extend the piston rods to the desired working depth B+. Monitor the depth indicator to set the working depth. ...
  • Page 20 Use of rear accessories The tractor must be switched off and the parking brake engaged when adjusting the rear accessories. The height of the rear harrow can be adjusted with a crank and the rear harrow tine angle with a pin.
  • Page 21 TROUBLESHOOTING Hydraulics do not work:  Make sure the hoses are pressure-free before connecting them to the tractor  The hoses are connected to the tractor  The hose pairs are connected to the correct couplings  The wheel circuit ball valve is open ...
  • Page 23 4. HARROWING  General  Driving lines...

  • Page 24: Harrowing

    4. HARROWING General The S-tine cultivators are intended for producing a level seedbed. Normal working depth for cereals is 0–6 cm. Because the seedbed cultivator is adjusted at the factory on a level surface, more accurate adjustments must be made on the field (the soil type, sinking of the tractor wheels and other factors have an influence on the settings).
  • Page 25 MAINTENANCE 5. MAINTENANCE  Key values  Instructions  Lubrication points  TIne  Bogie  Wheel hub  Hydraulics...

  • Page 26: Maintenance

    5. MAINTENANCE Key values Tyre pressure:  300/65-12 3.6 bar  480/45-17 2.8 bar Tine torque: 110 Nm Wheel bolt torque M16 (wing sections): 280 Nm Wheel bolt torque M18 (middle section): 320 Nm Drawbar eye bolt torque: 210 Nm Instructions Check after the first day of operation: ...
  • Page 27 Winter storage:  The harrow must be cleaned and lubricated thoroughly before long-term storage. If you are using a high-pressure washer, do not spray the cylinders, bearings or decals directly.  Keep the pressure washer nozzle at least 30 cm from the area being sprayed.
  • Page 28 Tine point replacement Tine points can be turned around by using the old bolt and nut, provided that the head of the point bolt is not yet too worn. When tine points are replaced, the bolts and nuts must be replaced as well.
  • Page 29 Wheel hub (wing sections)  Check the bearing clearance before greasing the hubs.  Spread and lower the harrow to rest on the tines so that the wheels are lifted in the air.  Grip the wheel firmly and check for play in the bearings: the wheel must turn freely, but there must be no play in the bearing.
  • Page 30 Hydraulics The working depth of MASTER harrows is adjusted hydraulically. The front levelling board and depth adjustment cylinders are connected in series, which ensures that they are always fully synchronised. Wing sections Machine lifting Working depth...
  • Page 31 Front board Rear board...
  • Page 32 6. WARRANTY...

  • Page 33: Warranty

    6. WARRANTY 1. The machine's warranty period is 12 months. 2. The warranty period starts on the date when an authorised retailer delivers the machine. 3. The warranty covers manufacturing and raw material defects. Damaged parts are repaired or replaced with parts in proper operating condition at the customer's facilities, factory or authorised repair shop.
  • Page 34 7. EC DECLARATION OF CONFORMITY...

  • Page 35: Ec Declaration Of Conformity

    FI-32210 Loimaa Finland hereby states that the following S-tine harrows in question: Kverneland Tiger 900 starting from serial number: 000 040809 N1000001 1000 starting from serial number: 000 040810 N1000001 meet the requirements of Machinery Directive 2006/42/EC with respect to the construction of machinery.
