Getting Started

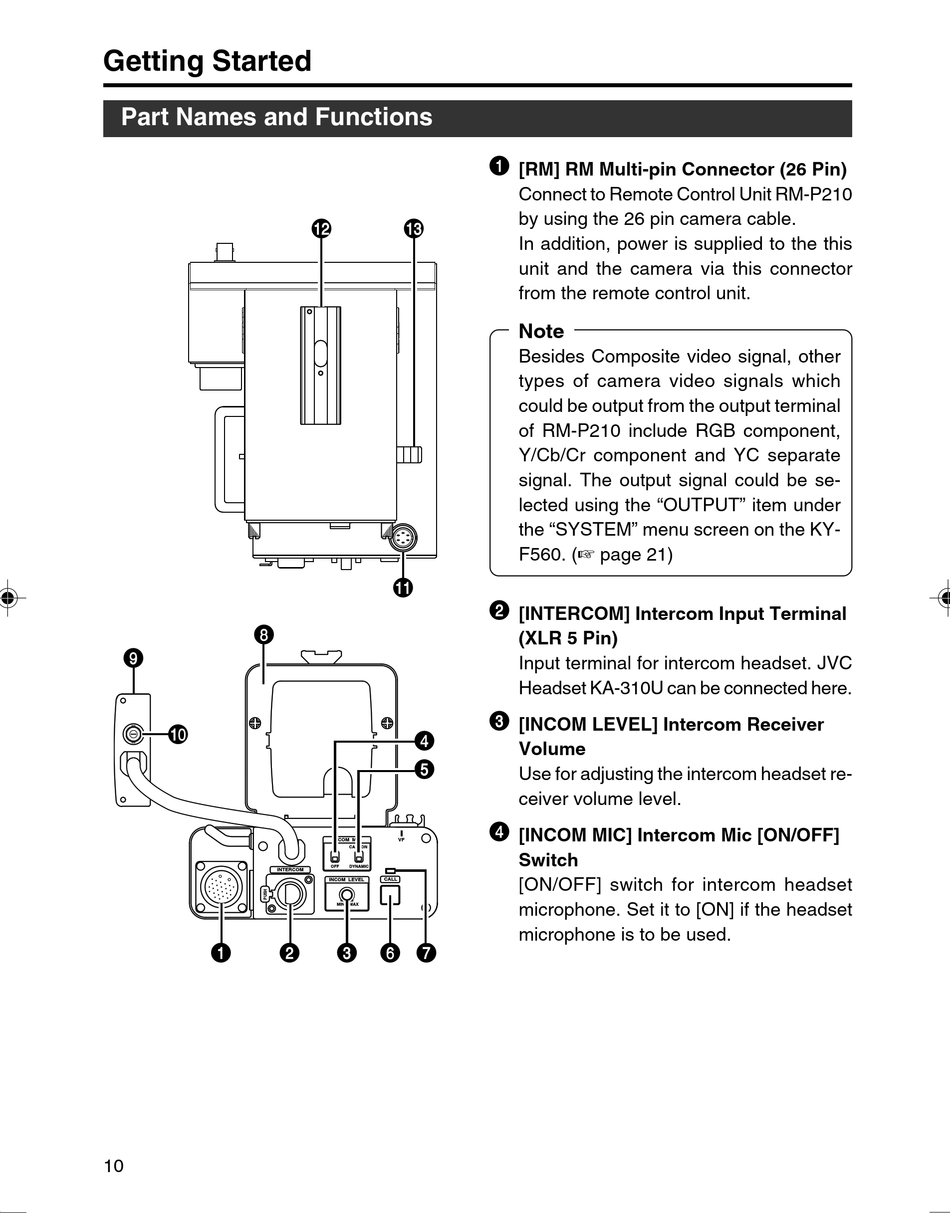

Part Names and Functions

9
0
1
10
@ #
!
8
INCOM MIC VF
ON CARBON
OFF DYNAMIC
INTERCOM
CALL
INCOM LEVEL
MIN MAX
2 3 6 7
1
[RM] RM Multi-pin Connector (26 Pin)
Connect to Remote Control Unit RM-P210
by using the 26 pin camera cable.
In addition, power is supplied to the this
unit and the camera via this connector
from the remote control unit.
Note
Besides Composite video signal, other
types of camera video signals which
could be output from the output terminal
of RM-P210 include RGB component,
Y/Cb/Cr component and YC separate
signal. The output signal could be se-
lected using the "OUTPUT" item under
the "SYSTEM" menu screen on the KY-
F560. (☞ page 21)
2
[INTERCOM] Intercom Input Terminal
(XLR 5 Pin)
Input terminal for intercom headset. JVC
Headset KA-310U can be connected here.
3
[INCOM LEVEL] Intercom Receiver
4
Volume
5
Use for adjusting the intercom headset re-
ceiver volume level.
4
[INCOM MIC] Intercom Mic [ON/OFF]
Switch
[ON/OFF] switch for intercom headset
microphone. Set it to [ON] if the headset
microphone is to be used.
