SWR2310-10G
220
1 3 5
2 4 6

RJ-45/DB-9 console cable pin configuration

Console (RS-232C)
Signal RJ-45
RTS 1
DTR 2
TxD 3
GND 4
GND 5
RxD 6
DSR* 7
CTS* 8
* DSR and CTS signals are not used by the SWR2310 series.
The model number, serial number, power requirements, etc., may be found
on or near the name plate, which is at the top of the unit. You should note this
serial number in the space provided below and retain this manual as a
permanent record of your purchase to aid identification in the event of theft.
Model No.
Serial No.
7
9
8 10
D-SUB 9
9
8
6
2
5
3
7
4
1

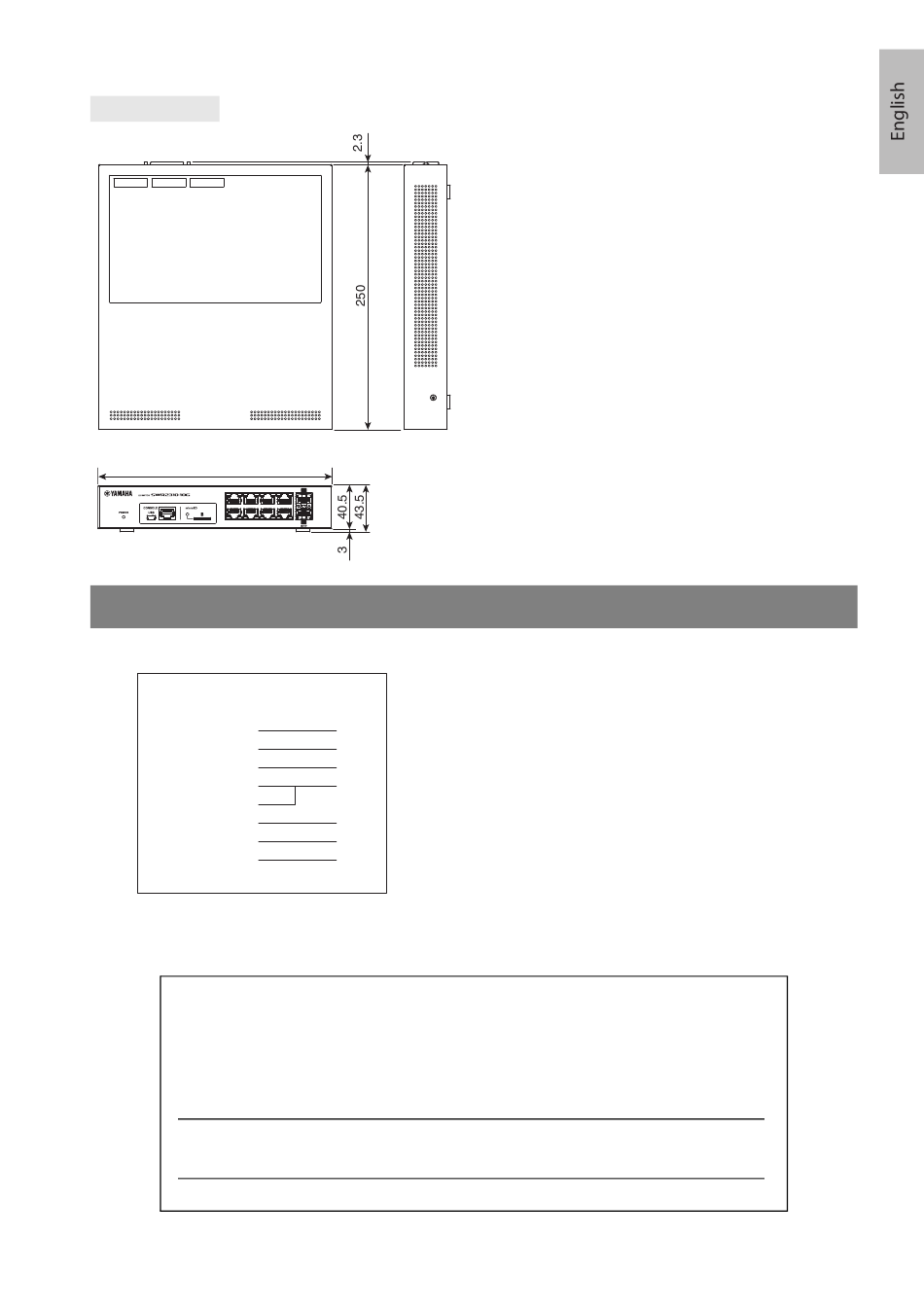

SWR2310-28GT SWR2310-18GT SWR2310-10G
Units: mm
Appendix
(top_en_01)
