Installation on a wall or ceiling
4.

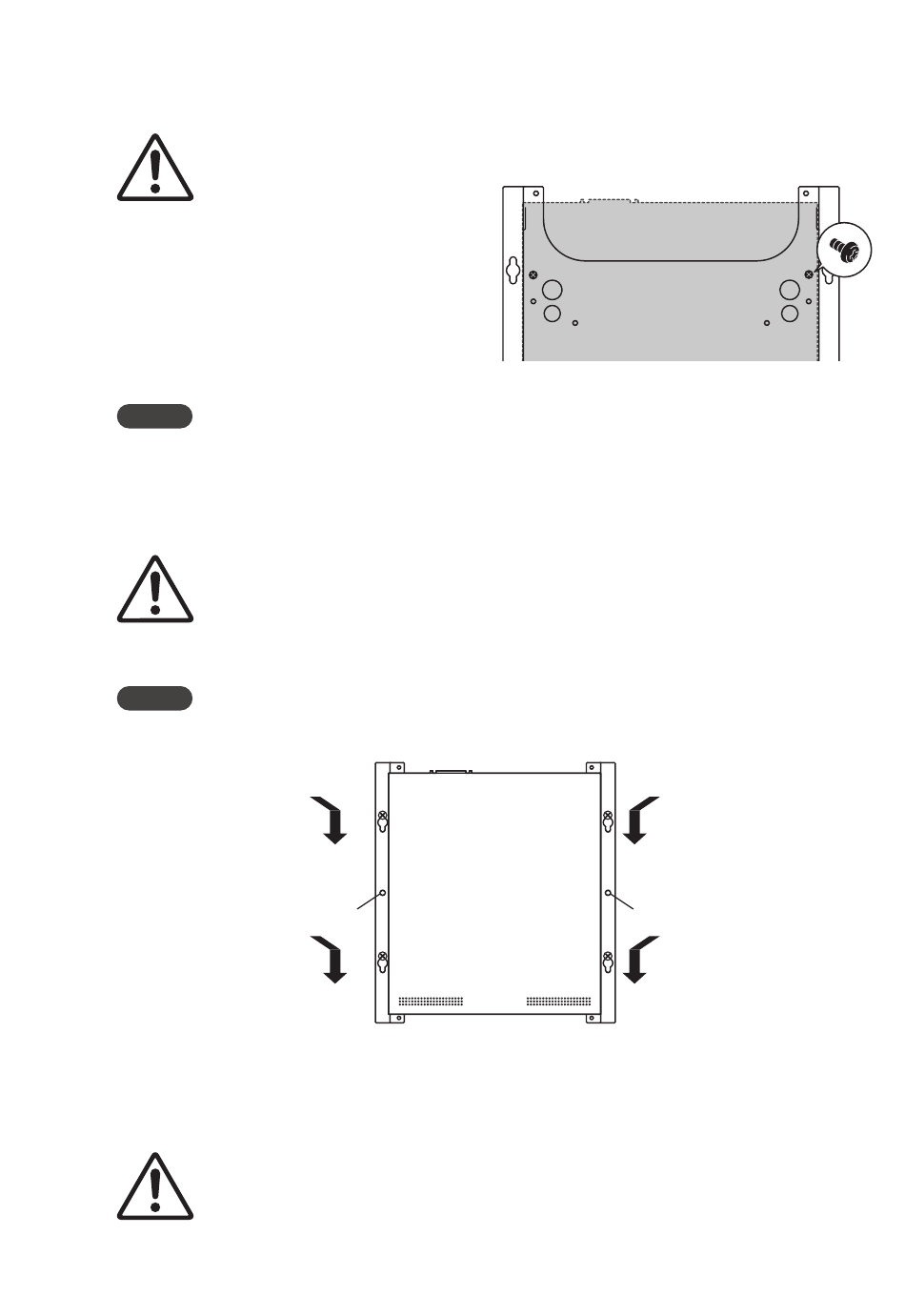

Using four screws included with the mounting accessory, attach it to the
SWR2310-18G/SWR2310-10G.
Fasten it securely.
Use only the specified screws that
•
were included.
If the unit falls, injury or damage might occur.
This could also cause electric shock or
malfunctions.
Take care when letting your hand or
•
finger contact the corners of the
mounting accessory.
Inattention might cause injury.
Notice
The screw holes to use are stamped with a "D" (SWR2310-18GT) or "B" (SWR2310-10G)
on the mounting accessory.
The screws to use are the small black M3 × 4 screws for the metal chassis.
5.
Engage the assembled mounting accessory onto the commercially available
screws that you provisionally attached in step 2, and slide it to the side.
Do not drop the unit.
If the unit falls, injury or damage might occur.
Notice
When installing the unit sideways, engage the mounting accessory onto the commercially
available screws, and slide it either to the left or the right.
Screw hole for fastening
6.
Further tighten the commercially available screws that you provisionally
attached in step 2, fastening the mounting accessory.
7.
Install two commercially available screws in the fastening screw holes (two
locations) of the mounting accessory.
You must use screws that are appropriate for the material of the wall or ceiling.
If the unit falls, injury or damage might occur.
