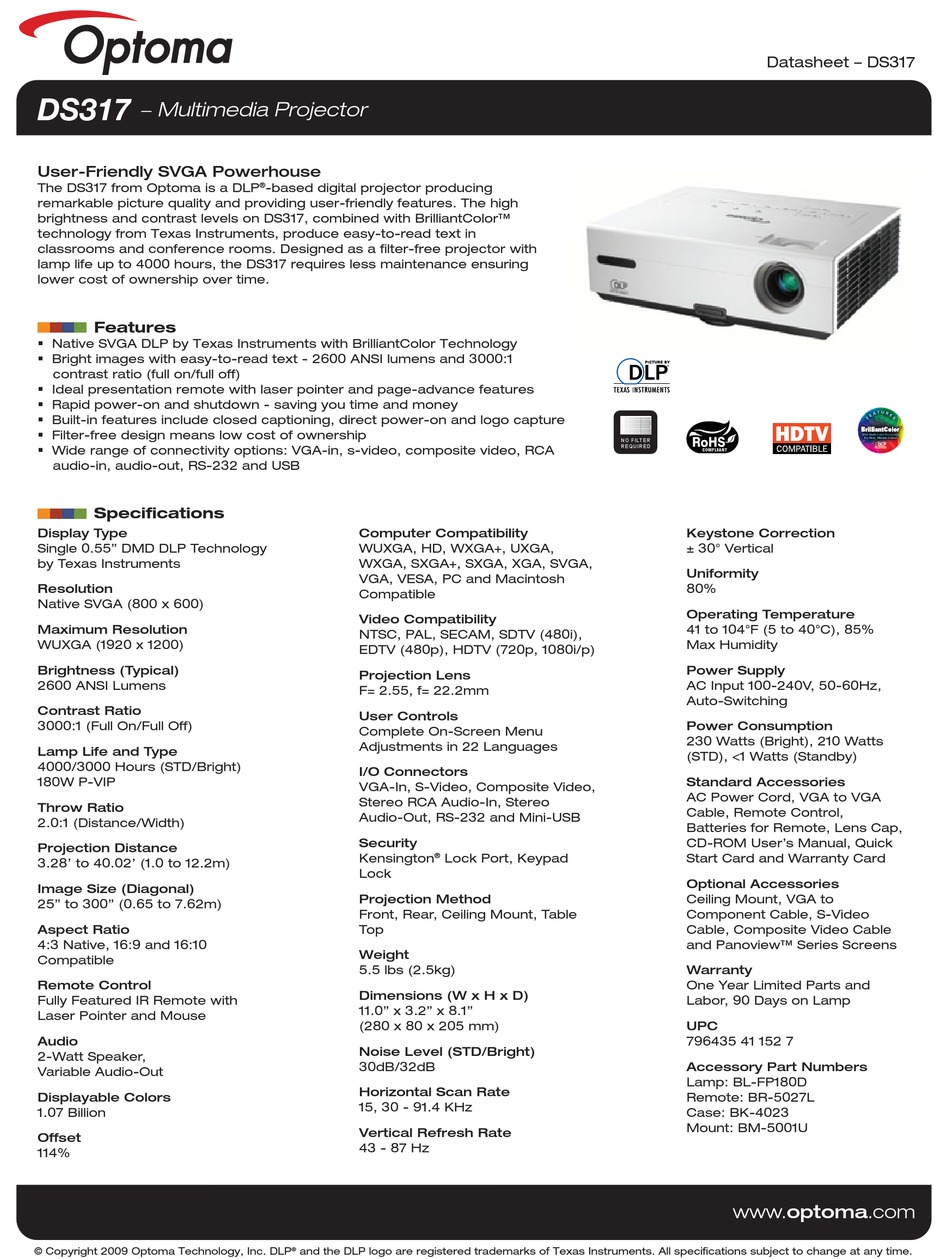

Optoma DS317 Datasheet

DS317
− Multimedia Projector
User-Friendly SVGA Powerhouse
The DS317 from Optoma is a DLP
remarkable picture quality and providing user-friendly features. The high
brightness and contrast levels on DS317, combined with BrilliantColor™
technology from Texas Instruments, produce easy-to-read text in
classrooms and conference rooms. Designed as a filter-free projector with
lamp life up to 4000 hours, the DS317 requires less maintenance ensuring
lower cost of ownership over time.
Features
 Native SVGA DLP by Texas Instruments with BrilliantColor Technology
 Bright images with easy-to-read text - 2600 ANSI lumens and 3000:1
contrast ratio (full on/full off)
 Ideal presentation remote with laser pointer and page-advance features
 Rapid power-on and shutdown - saving you time and money
 Built-in features include closed captioning, direct power-on and logo capture
 Filter-free design means low cost of ownership
 Wide range of connectivity options: VGA-in, s-video, composite video, RCA
audio-in, audio-out, RS-232 and USB

Specifications

Display Type
Single 0.55" DMD DLP Technology
by Texas Instruments
Resolution
Native SVGA (800 x 600)
Maximum Resolution
WUXGA (1920 x 1200)
Brightness (Typical)
2600 ANSI Lumens
Contrast Ratio
3000:1 (Full On/Full Off)
Lamp Life and Type
4000/3000 Hours (STD/Bright)
180W P-VIP
Throw Ratio
2.0:1 (Distance/Width)
Projection Distance
3.28' to 40.02' (1.0 to 12.2m)
Image Size (Diagonal)
25" to 300" (0.65 to 7.62m)
Aspect Ratio
4:3 Native, 16:9 and 16:10
Compatible
Remote Control
Fully Featured IR Remote with
Laser Pointer and Mouse
Audio
2-Watt Speaker,
Variable Audio-Out
Displayable Colors
1.07 Billion
Offset
114%
© Copyright 2009 Optoma Technology, Inc. DLP
-based digital projector producing
®
Computer Compatibility
WUXGA, HD, WXGA+, UXGA,
WXGA, SXGA+, SXGA, XGA, SVGA,
VGA, VESA, PC and Macintosh
Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i/p)
Projection Lens
F= 2.55, f= 22.2mm
User Controls
Complete On-Screen Menu
Adjustments in 22 Languages
I/O Connectors
VGA-In, S-Video, Composite Video,
Stereo RCA Audio-In, Stereo
Audio-Out, RS-232 and Mini-USB
Security
Kensington
®
Lock
Projection Method
Front, Rear, Ceiling Mount, Table
Top
Weight
5.5 lbs (2.5kg)
Dimensions (W x H x D)
11.0" x 3.2" x 8.1"
(280 x 80 x 205 mm)
Noise Level (STD/Bright)
30dB/32dB
Horizontal Scan Rate
15, 30 - 91.4 KHz
Vertical Refresh Rate
43 - 87 Hz
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
NO FILTER
REQUIRED
Lock Port, Keypad
Datasheet – DS317
Keystone Correction
± 30° Vertical
Uniformity
80%
Operating Temperature
41 to 104°F (5 to 40°C), 85%
Max Humidity
Power Supply
AC Input 100-240V, 50-60Hz,
Auto-Switching
Power Consumption
230 Watts (Bright), 210 Watts
(STD), <1 Watts (Standby)
Standard Accessories
AC Power Cord, VGA to VGA
Cable, Remote Control,
Batteries for Remote, Lens Cap,
CD-ROM User's Manual, Quick
Start Card and Warranty Card
Optional Accessories
Ceiling Mount, VGA to
Component Cable, S-Video
Cable, Composite Video Cable
and Panoview™ Series Screens
Warranty
One Year Limited Parts and
Labor, 90 Days on Lamp
UPC
796435 41 152 7
Accessory Part Numbers
Lamp: BL-FP180D
Remote: BR-5027L
Case: BK-4023
Mount: BM-5001U
www.optoma.com
