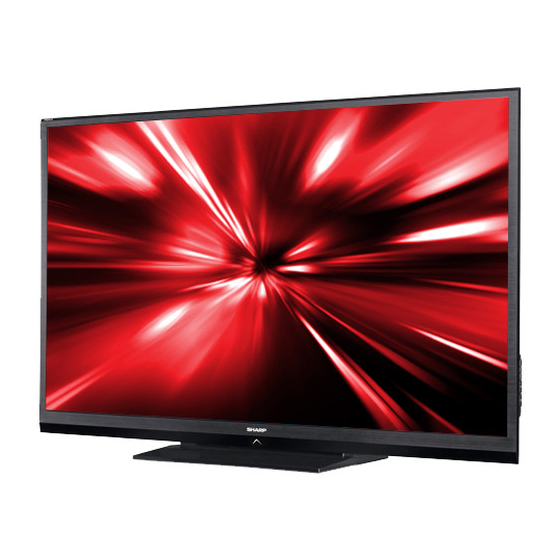

Sharp Aquos LC-80LE633U Service Manual

TopPage
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
SAFETY PRECAUTION
OUTLINE
CHAPTER 1. SPECIFICATIONS
CHAPTER 2. OPERATION MANUAL
CHAPTER 3. DIMENSIONS
CHAPTER 4. REMOVING OF MAJOR PARTS
CHAPTER 5. ADJUSTMENT
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
LC-52/60/70LE640U/C6400U,LC-80LE633U/844U (1st Edition)

SERVICE MANUAL

LCD COLOR TELEVISION
MODELS
CONTENTS
CHAPTER 6. TROUBLESHOOTING TABLE
CHAPTER 7. MAJOR IC INFORMATIONS
CHAPTER 8. OVERALL WIRING/SYSTEM BLOCK
DIAGRAM
Parts Guide
No. S12V452LE6400
LC-52LE640U,C6400U
LC-60LE640U,C6400U
LC-70LE640U,C6400U
LC-80LE633U,LE844U
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
