PMC connectors
for SSL VPN
card
5. Position the male PMC connectors on the card over the female PMC
6. Push down on the card until it is properly seated on the motherboard.
Nokia 60s and 100s Installation Guide
connectors on the motherboard. The two sets of connectors should be
aligned with each other. The four screw holes and four standoffs should
also be aligned with one another.

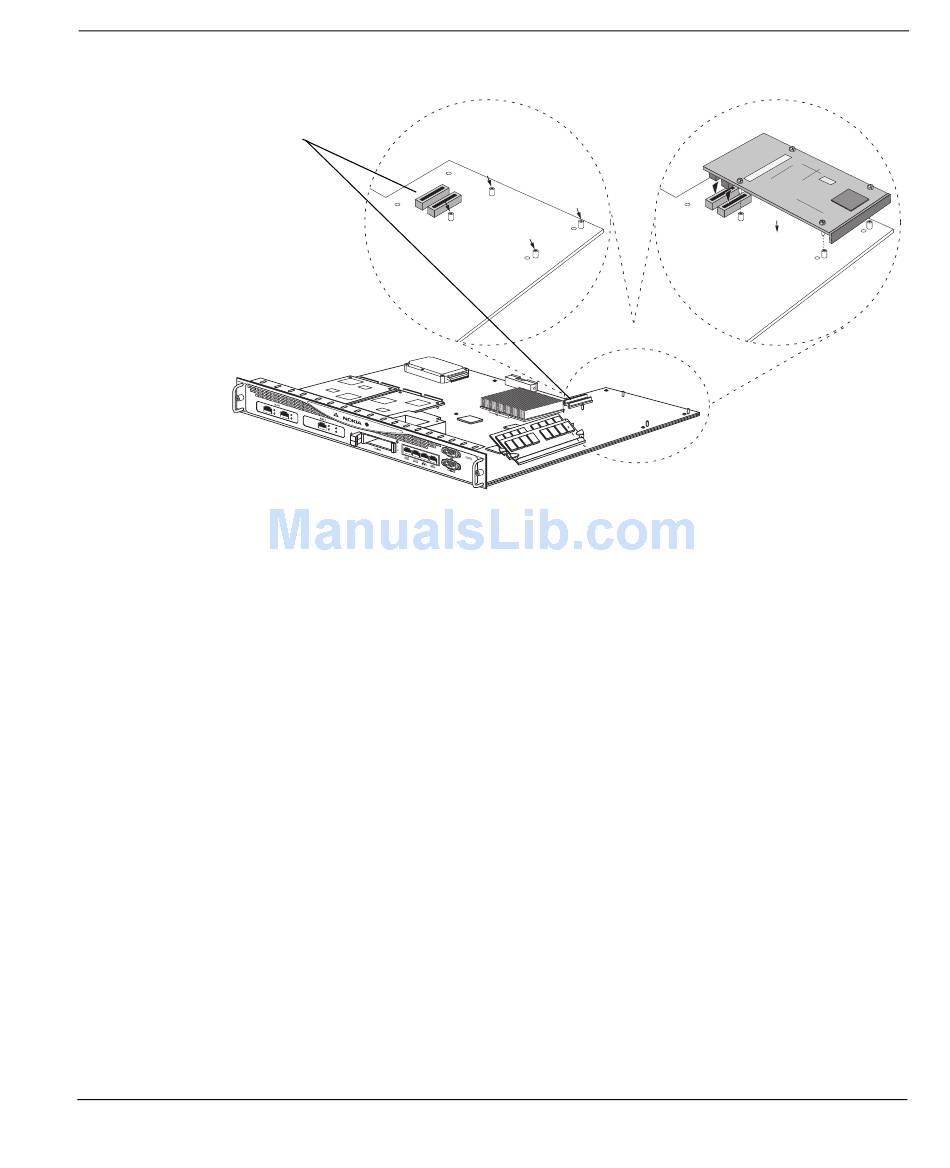

Installing an Encryption Accelerator Card
A
Standoffs
B
Insert the VPN card
into connectors.
Screw card into standoffs.
00493
67
