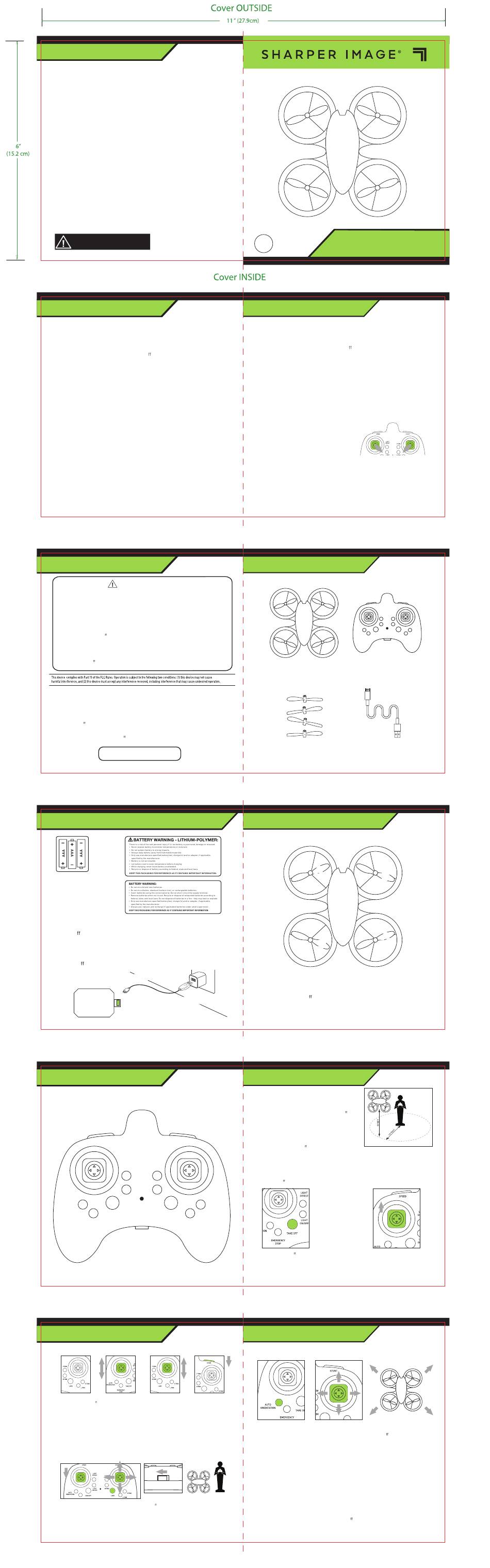

Sharper Image LED STUNT DRONE Manual

LED STUNT DRONE
Sharper Image name and logo (including the 77 logo) are trademarks or registered trademarks.
®
Distributed by and © 2020 MerchSource, LLC. Irvine, CA 92618. All rights reserved.
For customer support, please visit www.merchsource.com or call 1-800-374-2744.
The artwork and design of this manual are protected by US copyright law and may not be reproduced,
distributed, displayed, published or used for any purpose without prior written permission. It is not
permitted to alter, remove or reproduce any trademarks or copyright notice from this manual.
Printed in China
CHOKING HAZARD –
SMALL PARTS NOT FOR CHILDREN UNDER 3 YEARS.
ADULT ASSEMBLY REQUIRED.
INTRODUCTION
Congratulations on your purchase of the LED Stunt Drone.
It's time for some fun. This drone is capable of total controlled flight, fly
up/down, left/right, and pitch forward or backward, on 6 axis gyro stabilization
with a control range of 150 feet. Includes USB charging cable, replacement
blades and for auto orientation, auto take-o and auto landing control.
Included, is a 380 mAh Li-ion drone battery. The remote controller requires
requires 3 AAA 1.5V batteries (not included). Alkaline batteries are
recommended.
Please read all instructions and warnings in this manual prior to using your
LED Stunt Drone, and keep this instruction manual as it contains important
information for future reference. Adult assembly and a Phillips screwdriver
will be required for battery installation.
Table of Contents
General Warnings
Contents
Remote Battery installation and Charging Battery
Replacing Propellers
Remote Overview
Operating Drone
Operating
Other Features
GENERAL WARNINGS
SAFETY WARNINGS
• Not recommended for children under 14 years of age. As with all electrical products, precautions should be
observed during handling and use to reduce the risk of electrical shock.
• Adult supervision is required at all times.
• Never fly drones above or near people, sudden changes in wind or other conditions could lead to
unexpected crashes.
• Always use caution when flying drone vehicles, obey relevant laws, respect the privacy and property rights
of others.
• The drone shall never be modified or used for anything except its intended purpose.
• Before each use, an adult should review the product and battery to determine that no damage or hazards exist.
• DO NOT TOUCH SPINNING PROPELLERS.
• Do not allow anything to intentionally make contact in any way with spinning propellers or prevent contact with
spinning blades by turning o remote prior to handling drone.
• Use caution and pay attention to your surroundings while operating drone.
• Do not fly drone into animals, people, or inanimate objects.
• Keep drone away from power lines, buildings, trees, public areas, and any other potentially hazardous areas.
• Do not operate in rain, heavy wind, and or any type of severe weather.
• Do not land drone on wet surfaces.
• Never touch or allow others to touch drone while it is flying.
• Always turn drone o when it is not in use.
• Always fly drone in large open areas.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accord- ance with the
instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment o and on the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Fly-aways are the responsibility of the individual pilot
and will not be replaced by the manufacturer.
2
REMOTE BATTERY INSTALLATION
1. Slide open the remote's battery
compartment.
2. Install 3 "AAA" batteries as shown in the
diagram above.
3. Replace and close battery compartment.
Charging Battery
1. Turn o the drone before charging.
2. Connect the battery charger cable to the charging port on the drone.
3. Connect USB connector to the power source.
Note: The Battery Charger will light up when it is charging the battery
and turn o when the battery is fully charged.
Connect the battery Connect the battery
charger to drone charger to drone
1
4
REMOTE OVERVIEW
SPEED
LIGHT
EFFECT
LIGHT
ON/OFF
AUTO
ORIENTATION
TAKE OFF
EMERGENCY
STOP
ON/OFF
6
OPERATING
Step 5 - Operating Drone in Flight.
1. Follow this step if your drone 2. Use the Throttle Joystick
begins to drift during take o or to increase or decrease your
during flight. elevation.
A. Drone drifts backwards: Press
the Forward Trim Button.
B. Drone drifts forwards: Press the
Backwards Trim Button.
C. Drone drift right: Press the
Left Trim Button.
D. Drone drift left: Press the
Right Trim Button.
Step 6 - Landing Drone
SPEED STUNT
LIGHT
EFFECT
F TRIM
LIGHT B TRIM
ON/OFF
AUTO
R TRIM
ORIENTATION
LAND
TAKE OFF
L TRIM
EMERGENCY
STOP
1. Lower drone to 20 feet or less then press the Auto Land
button. Use the Multi Directional Joystick to maneuver drone. Or
Push the left joystick down until the drone landing.
2. In the event the blades will not stop spinning, you can perform
an emergency stop.
8
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Insert the USB Insert the USB
connector into a USB connector into a USB
power source power source
STUNT
F TRIM
B TRIM
R TRIM
LAND
L TRIM
3. Use the Multi Directional 4. Stunts - Press the Stunt
Joystick to move forwards, Button then press the Multi
backwards or side to side. Directional Joystick in the
direction you want to
complete a stunt.
Note:
1. The stunt function may be
disabled if the drone battery
power is low.
2. Hover the drone at or
above 10 feet before
attempting a stunt.
Step 7 - Retrieving Drone
OFF ON
1. Turn o your remote by pressing the Power Button. This will
stop you from accidentally turning the propellers on.
2. Make sure the propellers have stopped spinning then pick up
your drone.
Note: You will need to pair your drone again before your next
flight, (part 1 of step 4).
BC
LED STUNT DRONE
INTRODUCTION
1. Prepare for flight
• Drone must be charged before each use (Cable included).
• Indicator light on USB plug will turn o when fully charged.
• Install batteries in remote.
2. Pair your drone
Before each flight pair the remote with the drone:
1. Turn your drone on and place on a flat, level surface.
2. Turn on the remote.
3. Push the left stick up and then down.
4. Repeat steps 1 and 2 if necessary.
3. Calibrate
• Move both joysticks diagonally in
toward the middle of the remote.
At the same time, position both
control sticks at a 45-degree angle
as shown in the image on the right.
4. Remote Control Overview
Practice flying your drone below 10 feet and at low speeds until comfortable
with all controls to avoid unnecessary damage or injury.
• Left joystick: Up/Down controls elevation.
• Right joystick: controls flight direction.
• Direction Trim: Use to eliminate drift .
To cut power to drone, move left joystick to down position.
CONTENTS
LED Drone
4 Replacement Propellers.
REPLACING PROPELLERS
A A
B B
• Only an adult should replace blades. To remove, pull up the blades directly.
• Replace propellers by following the diagram.
• Each blade spins di erently. Blade B spins counter clockwise and Blade A
spins clockwise.
OPERATING DRONE
Step 1 - Pre-Flight Checklist.
1. Read all warnings and instructions.
2. Install remote batteries, page 4.
3. Charge batteries, page 4.
4. Make sure that the drone and remote are powered o .
Step 2 - Choosing a location.
• Drone is designed to be flown indoors and outdoors.
• Always make sure you have enough space to fly drone.
• Always follow warnings, page 2.
Step 3 - Pre-Flight
• Make sure your remote is o .
• Push the power button on top of the drone and hold on 1-2s until LED lights on.
• Place drone on a flat even surface. For ease of control, the blue lights should be toward you.
• Turn on the Remote controller.Push the left stick up and then down.
• The drone's lights will flicker during the pairing process and then remain on once it has paired.
Step 4 - Lift O .
OR
Press the Auto Take o Button.
OTHER FEATURES
Auto Orientation
Press the Auto Orientation Button to turn the mode ON and then again to turn o .
• In this mode, the drone will always move in the direction you press the Multi Directional Button no
matter which way the drone faces.
• To stop blades in case of an emergency.
When drone is in auto orientation mode, the drone will orient to the user (remote), no matter what direction
the drone is facing.
• Press the Orientation button. Remote will beep every 6 seconds to indicate it is in Auto Orientation mode.
• Push the right stick up will send the drone away from the user, push left will move left, etc.
• Press Auto Orientation button to exit mode.
Tips
• Do not crash drone into sand or dirt. Drone gears may become clogged.
• When first learning to fly, practice lifting o and hovering.
• Stay several feet from walls and buildings.
14+
Drone Controller
USB Charger Cable
3
B B
A A
5
Slowly and carefully press the
Throttle stick. Drone will begin
to elevate.
7
9
