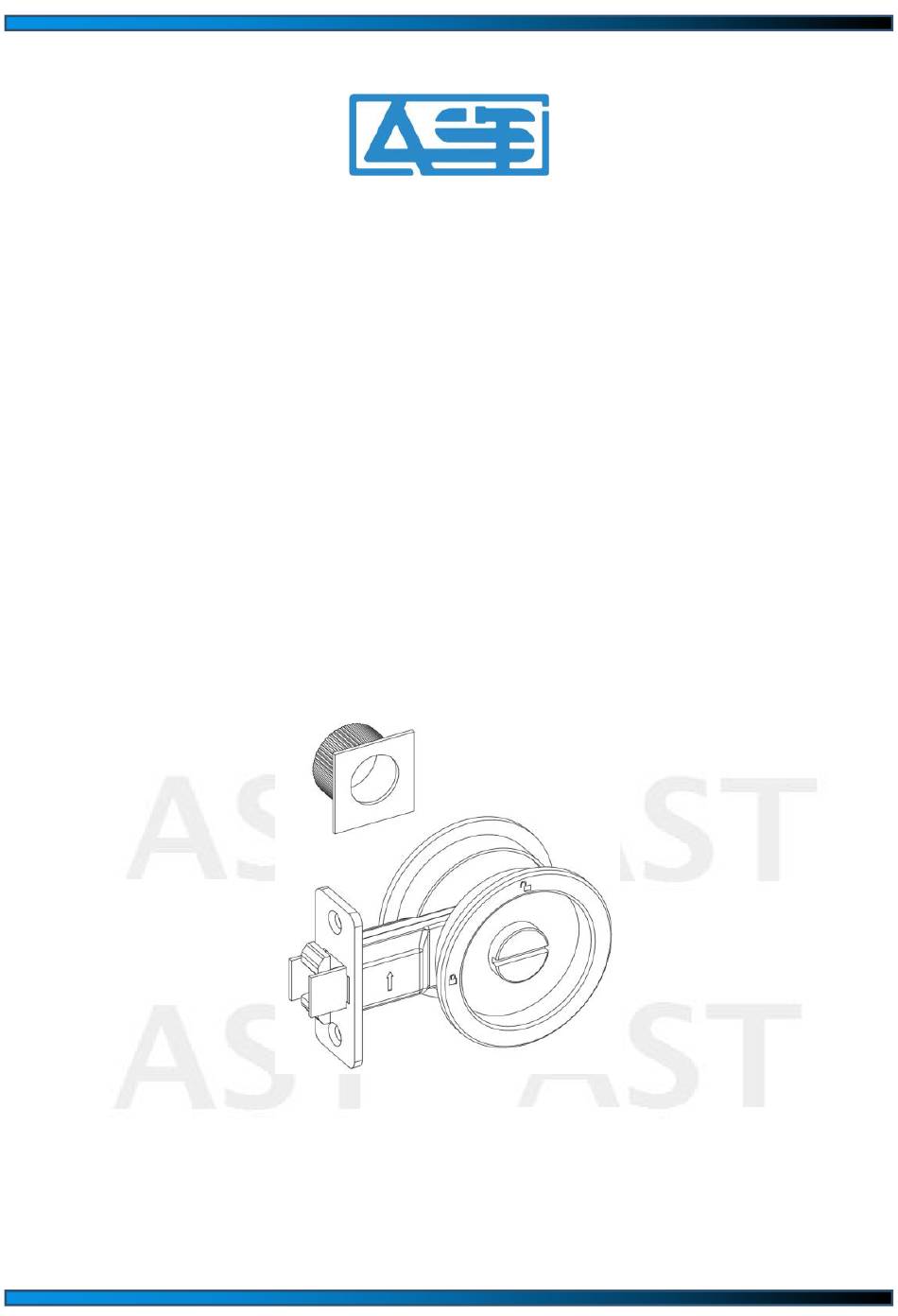

Anland Security Technology
Installation and Operation Manual
Description: Pocket Door Lock / Cavity Sliding
Door Lock
Model No.: S0002 / S0012 / S0022
Features: Double Hook
Material: Zinc and Stainless Steel
Type of Hardware: Flush Pull with hook bolt Latch
Thanks for choosing our premium quality product of home security with innovative design. Please
read this manual carefully before installation and use. For any query please contact us by email
customers-ast@anlandst.com
.
AST bids to the expert of creating value for customers in security and hardware!

Advertisement

loading
Need help?

Need help?

Do you have a question about the S0002 and is the answer not in the manual?

Questions and answers

Summary of Contents for AST S0002

  • Page 1 Thanks for choosing our premium quality product of home security with innovative design. Please read this manual carefully before installation and use. For any query please contact us by email customers-ast@anlandst.com AST bids to the expert of creating value for customers in security and hardware!

  • Page 2: Table Of Contents

    Content 1. Parts Included in the Package ...............1 2. Product Configuration and Locking Indication ........1 3. Product Outline Dimensions ..............2 4. Cut-out of Door for Installation .............2 5. Installation of Latch Assembly and Strike Parts ........4 6. Select Right Length of Screws and Tail bar Per Door Thickness ....5 7.

  • Page 3: Parts Included In The Package

    1. Parts Included in the Package Tools in need but not included in the package: ① Phillips screwdriver; ② Tape measure; ③ Door hole drilling tool kit 2. Product Configuration and Locking Indication 2.1. Assembly of product and part’s description is as below image. 2.2.

  • Page 4: Product Outline Dimensions

    3. Product Outline Dimensions 4. Cut-out of Door for Installation Please use the cutting tool of the sizes described as below image for the holes and recess of door edge for front plate of Latch Assembly and Edge Pull. Please be noted that the Latch backset is not changeable.

  • Page 5: Installation Of Latch Assembly And Strike Parts

    5. Installation of Latch Assembly and Strike Parts 5.1. Use 2 ea of screw A to fix the Strike Parts as below image. Important note: before securing the Strike Plate, it is necessary to check the alignment between Strike Plate and the Hook Bolt of Latch Assembly.
  • Page 6 5.2. Insert the Latch Assembly and Edge Pull into the hole of cut-out, then use screw A to fix them as below image Important note: for both left and right-handing door, please make sure the arrow on the side of Latch Assembly upwards per below image.

  • Page 7: Select Right Length Of Screws And Tail Bar Per Door Thickness

    6. Select Right Length of Screws and Tail bar Per Door Thickness Before the installation of Exterior and Interior Pull Modules, it is important to measure your door’s thickness then to select right length of fixing screw B and Tail Bar per above image.

  • Page 8: Installation Of Interior And Exterior Flush Pull

    7. Installation of Interior and Exterior Flush Pull Use screw driver to secure the Interior and Exterior Pull Modules per below image, please make sure the Tail Bar and Thumb Turn are vertically oriented, and the Tail Bar is going through the cross hole of Follower of Latch Assembly then coming into the cross hole of Exterior Pull Module.

  • Page 9: Template Of Door Cut-Out

    9. Template of Door Cut-out For your better cutting to door panel and jamb, below are the templates with dimensions marked for your reference. Please cut the templates out and use them for door drilling and material off. ------------------------------------------------------------------------------------------------------------------------ Ø 2-3/8” (54mm) Door edge Backet 2-3/8”...
  • Page 10 Template for Strike Plate Edge of door jamb (Thickness 1-3/8”, 35mm. For reference only) Central line of cut-out and door jamb Width 1” (26mm), Length 2-5/8” (67mm) ------------------------------------------------------------------------------------------------ Hole Ø 1” (25.4mm) Template for Edge of door panel Edge Pull (Thickness 1-3/8”, 35mm.
  • Page 11 Please visit our Amazon store ASTLock or website for more high quality security products, including Keyless Door Lock, Fingerprint Door Knob with Lock and Knob Lockout Device, etc. Much Appreciated!
  • Page 12 Anland Security Technology Revision: NR Language: English Size: A5 (14.8 X 21.0 cm) Remark: This document is property of Guangzhou Anland ST Co., Ltd and may be subject to change without notice...
