EAST OAK EO-PH22008 Instructions

Heat Focusing Reflector for Patio Heater Instruction
CAUTION:THE REFLECTOR MUST BU ASSEMBLED ON THE OPPOSITE SIDE OF THE
CONTROL KNOB.

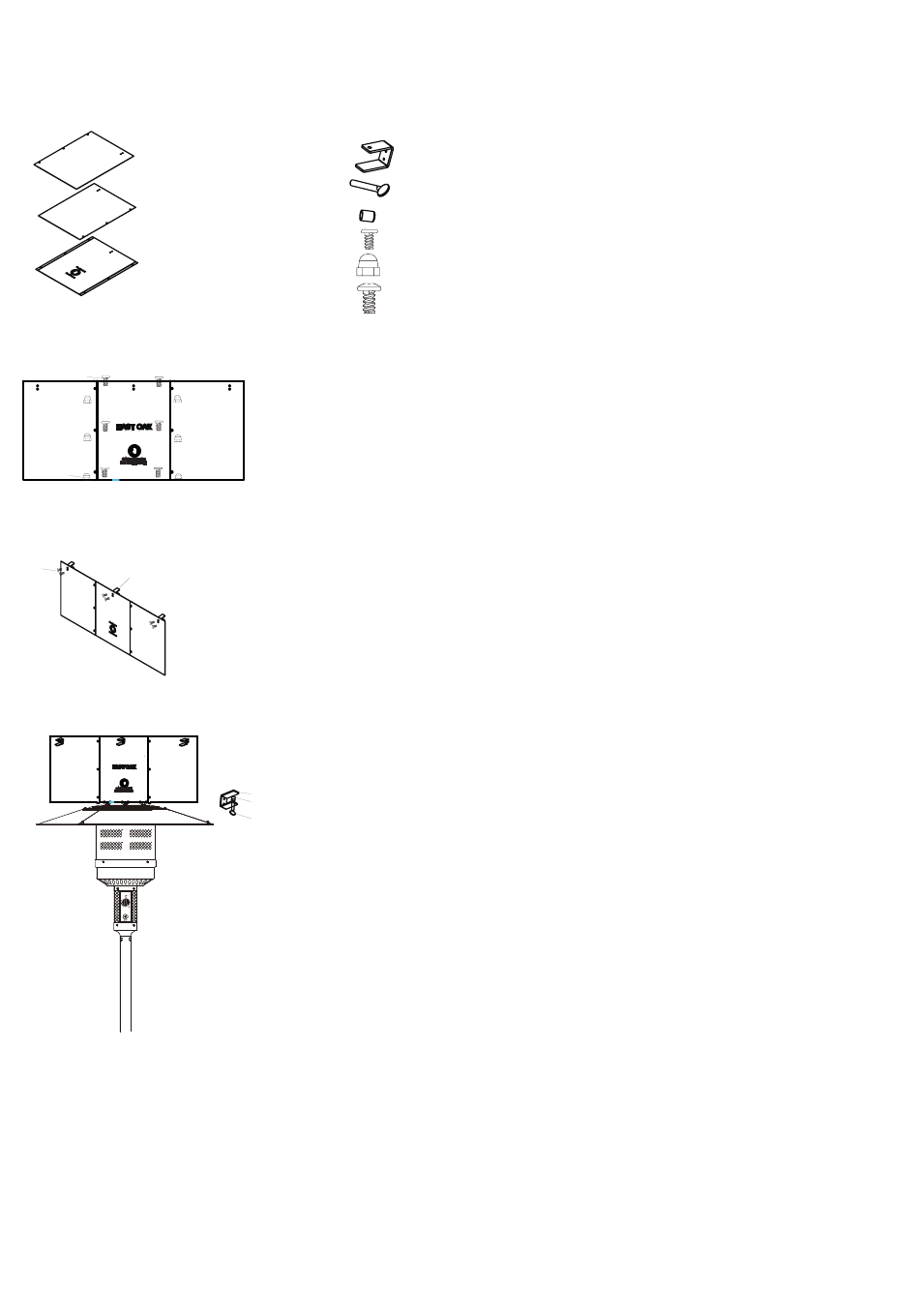

Parts list
A Right Panel x1
B Left Panel x1
C Middle Panel x1
Step 1
G
H
Step 2
I
D
Step 3
H
D
E
F
G
H
I
STEP 1
Connect the left panel(A),middle panel(C) and right panel(B) with
M6 screws(G) and M6 Cap nuts(H).
ATTENTION:BEFORE ASSEMBLY MOVE THE COVER OF PART A,B
AND C.
MAKE SURE THE M6 CAP NUTS(H) IS ON THE FRONT SIDE.
STEP 2
Connect the Bracket(D) to the panels with M6 screws(I).
ATTENTION:MAKE SURE THE M6 SCREWS IS ON THE FRONT SIDE.
STEP 3
Connect the deflector to the heater reflector with Fix screws (E).And put
the protect cover on the fix screws.Then fix the deflector on the heater.
ATTENTION:THE REFLECTOR MUST BU ASSEMBLED ON THE
OPPOSITE SIDE OF THE CONTROL KNOB.
D
F
E
Bracket x3
Fix screws x3
Protect cover x3
M6 screws x 6
M6 Cap nuts x6
M6 screws x 6
