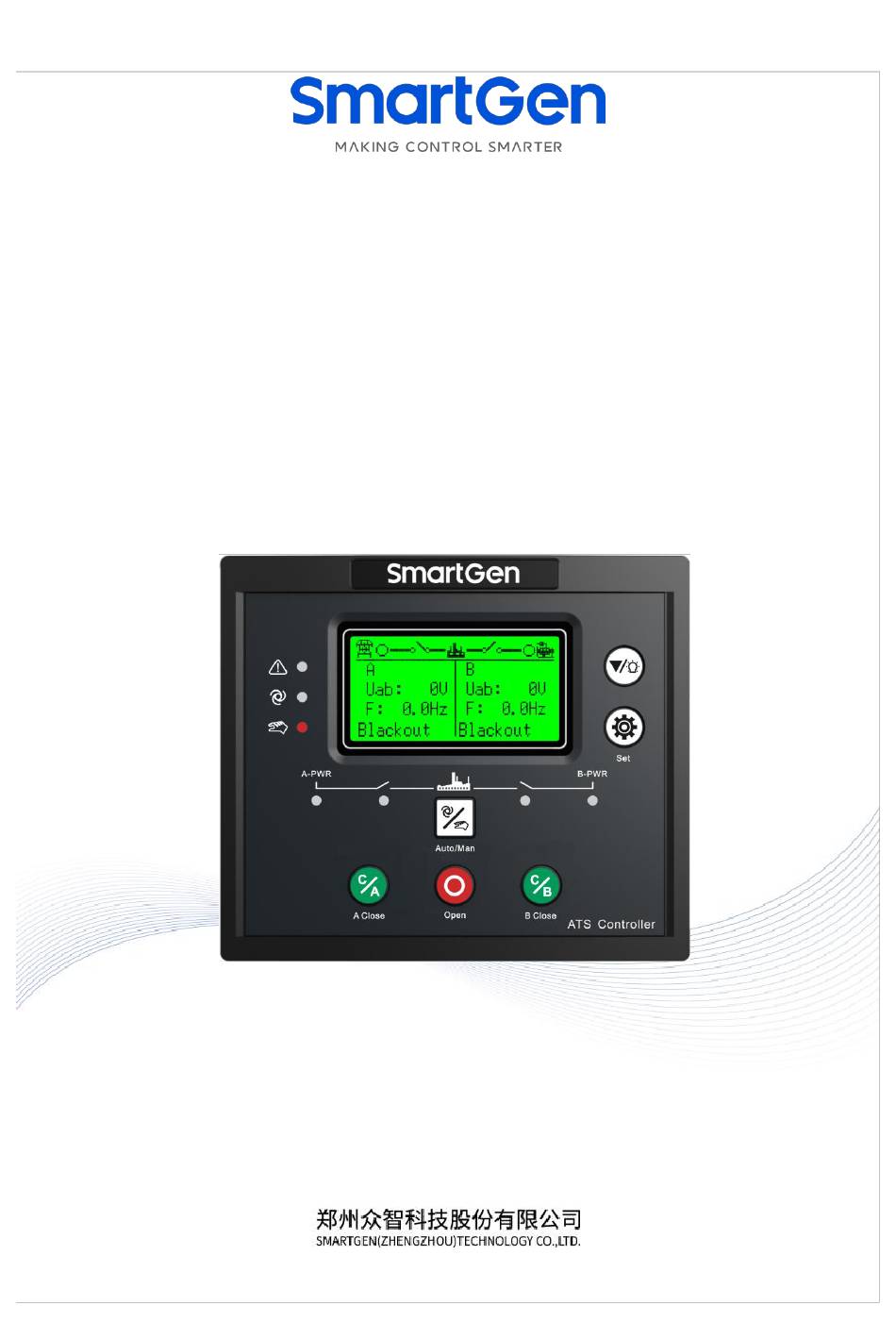

- Page 1 HAT553LT DUAL POWER ATS CONTROLLER USER MANUAL...
-
Page 2: Table Of Contents
11.2 COMMUNICATION PORT CONNECTION ······················································································ 26 11.3 USB COMMUNICATION PORT ······································································································· 27 12 DEFINITION OF CONNECTING TERMINALS ························································································· 27 12.1 DESCRIPTION OF CONNECTING TERMINALS ············································································· 27 12.2 TYPICAL WIRING DIAGRAM ·········································································································· 29 HAT553LT ATS Controller User Manual Page 2 of 32... - Page 3 ___________________________________________________________________________________________ 13 INSTALLATION ······································································································································ 31 14 TROUBLESHOOTING ····························································································································· 32 HAT553LT ATS Controller User Manual Page 3 of 32...
- Page 4 Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 Software Version Date...
-
Page 5: Overview
It is the ideal product for dual power transfer. HAT553LT is applicable for non-breaking, one-breaking, and two-breaking switches. HAT553LT dual power ATS controller is made with the microprocessor in the core, which can precisely measure 2-channel 3-phase voltages, make correct judgment and control outputs for occurred voltage abnormal (over voltage, under voltage, over frequency, under frequency, loss of phase, reverse phase sequence). -
Page 6: Specification
Apply AC1.5kV voltage between high voltage terminal and low voltage Insulation Strength terminal and the leakage current is not more than 3mA within 1min. Weight 0.44kg HAT553LT ATS Controller User Manual Page 6 of 32... -
Page 7: Measured And Displayed Data
A power accumulated supply time B power accumulated supply time A power accumulated close times B power accumulated close times Close/open status Real time clock Event log Alarm information Controller information HAT553LT ATS Controller User Manual Page 7 of 32... -
Page 8: Operating
___________________________________________________________________________________________ 5 OPERATING 5.1 OPERATION PANEL Fig. 1 HAT553LT Front Panel 5.2 INDICATOR DESCRIPTION Table 4 Indicator Description Indicator Name Indicator Description Alarm Indicator Slow flashing for warning alarms (1time per second); Fast flashing for fault alarms ( 5 times per second) Auto Mode Indicator Light on when current is Auto mode;... -
Page 9: Key Function Description
Current alarm information (including warning and fault alarms); Alarm status/working status; Supply system diagram; Status Line Real time clock; Status line is displayed on the first row of every page in main screen. HAT553LT ATS Controller User Manual Page 9 of 32... -
Page 10: Second Level Interface
Frequency is above the pre-set upper limit. Low Frequency Frequency is less than the pre-set lower limit. Loss Phase One or two phases are lost among L1, L2, L3. Phase Wrong Phase sequence is wrong for L1-L2-L3. HAT553LT ATS Controller User Manual Page 10 of 32... - Page 11 Switch has been open and load is disconnected. When controller detects warning alarm, warning alarm becomes active, alarm indicator will slow flashes (1 time per second), and when alarm disappears, alarm indicator will extinguish. Warning alarm isn't latched. HAT553LT ATS Controller User Manual Page 11 of 32...
- Page 12 Remote Gen Off Load Remote start offload input is active. Gen Start Mains NG Start when Mains is abnormal. Auto Mode Current is in auto mode. Manual Mode Current is in manual mode. HAT553LT ATS Controller User Manual Page 12 of 32...
-
Page 13: Main Menu
Set "Remote Start Onload" or "Remote Start Offload" for configurable input ports, and they are cannot be set at the same time. Remote Start Onload: Genset start outputs, when generating is Ok, GB closes; when it is inactive, HAT553LT ATS Controller User Manual Page 13 of 32... -
Page 14: Scheduled Start
The check time from B power normal to B Unavailable Delay (0-3600)s abnormal. 0: A Master Set Master (0-1) 1: B Master System Type Set (0-2) 0: A Mains B Gen HAT553LT ATS Controller User Manual Page 14 of 32... - Page 15 A close. When closing output ends, it stops after the After Transfer Delay (0~20.0)s transfer delay. Again Close Delay (0~20.0)s For the first time switch open failed, then it HAT553LT ATS Controller User Manual Page 15 of 32...
- Page 16 April June Schedule Monthly Month July August September October November December Schedule Date (1~31) Date for genset start for each month. Sunday Monday Tuesday Schedule Weekly Week Wednesday Thursday Friday Saturday HAT553LT ATS Controller User Manual Page 16 of 32...
- Page 17 Com Stop Bit (1~2) 1 or 2 stop bits can be set. Date/Time Setting 0: Enable COM Adj/Ctrl 1: Disable COM Control Communication Set （0~3） 2: Disable COM Adjust 3: Disable COM Adj/Ctrl HAT553LT ATS Controller User Manual Page 17 of 32...
-
Page 18: Digital Input/Output Function Description
Transition Fault failed to close, and B failed to open. When fault alarms are active, external annunciator can be Audible Alarm connected; After delay for 60s, clear the audible alarm output. Reserved HAT553LT ATS Controller User Manual Page 18 of 32... - Page 19 Reserved Reserved Reserved Reserved Reserved Reserved Remote Control By RS422 communication command control output. Reserved Reserved HAT553LT ATS Controller User Manual Page 19 of 32...
-
Page 20: Event Log
Record when genset start signal is outputted; Genset Stop Record when genset start signal is disconnected; Auto Mode Record when it is transferred to Auto mode; Manual Mode Record when it is transferred to Manual mode; HAT553LT ATS Controller User Manual Page 20 of 32... -
Page 21: Switch Operation Running
In auto mode, controller will transfer switch based on the status of A power and B power, transfer priority and auto trans./restore status to ensure supply for load. The following illustrates control logics by the example of "A power master" and "A Mains B Gen". HAT553LT ATS Controller User Manual Page 21 of 32... -
Page 22: Auto Trans./Restore
B power is normal, then A power opens, B power closes; if A power recovers normal, then B power opens, A power closes. Fig. 2 Auto Trans./Restore Flow Chart HAT553LT ATS Controller User Manual Page 22 of 32... -
Page 23: Auto Trans./Non Restore (Active For Mutual Backup)
A power closes; if A power is abnormal, B power is normal, then A power opens, and B power closes; If A power recovers normal, B power is normal, then switch keeps at B power close status. Fig. 3 Auto Trans./None Restore (Active for Mutual Backup) Flow Chart HAT553LT ATS Controller User Manual Page 23 of 32... -
Page 24: Auto Trans./Non Restore (Active For Mutual Backup)
A power loading to B power loading. A power open steps in the middle are omitted. NOTE: this function is only suitable for switches with breakings and switches allowing to transfer directly from A power loading to B power loading. HAT553LT ATS Controller User Manual Page 24 of 32... -
Page 25: Auxiliary Contact Feedback Input Of Switch Open
11 COMMUNICATION CONFIGURATION AND CONNECTION 11.1 ILLUSTRATION HAT553LT dual power transfer controller has RS422 communication port, USB communication port. Between them RS422 communication port allows to connect LAN of open structure. Communication port applies Modbus communication protocol, by the running software on PC or data collecting system, to provide a simple and practical dual power transfer management method of factories, telecommunication, industries and civil buildings, realizing "remote control, remote measuring, remote... -
Page 26: Communication Port Connection
___________________________________________________________________________________________ 11.2 COMMUNICATION PORT CONNECTION The HAT553LT dual power ATS controller is equipped with RS422 communication port, which can be LAN monitored by RS485 device or by RS422 device. The communication connection is shown as following figure: Fig. 5 485 Connecting Diagram Fig.6 422 Adaptor Connecting Diagram... -
Page 27: Usb Communication Port
Fig. 7 USB Connecting Diagram 12 DEFINITION OF CONNECTING TERMINALS 12.1 DESCRIPTION OF CONNECTING TERMINALS Fig. 8 Controller Rear Panel HAT553LT ATS Controller User Manual Page 27 of 32... -
Page 28: Aux Input
32 AUX. INPUT Programmable output 1 to input common port. 33 B2+ DC Power 2 positive input DC input (9~35)V provide power supply for 34 B1+ DC Power 1 positive input controller. HAT553LT ATS Controller User Manual Page 28 of 32... -
Page 29: Typical Wiring Diagram
USB USB port program by connecting with PC. 12.2 TYPICAL WIRING DIAGRAM Fig. 9 SGQ-N/T Application Diagram NOTE: The switch type of SGQ-N/T application diagram is set as none-breaking. HAT553LT ATS Controller User Manual Page 29 of 32... - Page 30 Fig. 11 Contactor Application Diagram NOTE: The switch type of contactor application diagram is set as two-breaking, the closing time is set as 0, the switch transfer interval is 1s (It depends on the situation). HAT553LT ATS Controller User Manual Page 30 of 32...
-
Page 31: Installation
NOTE 3: The switch type is set as two-breaking. 13 INSTALLATION The controller is designed by panel installation method, and is fixed by clips for installation. Unit: mm CUTOUT Fig. 13 Overall Dimensions and Cutout HAT553LT ATS Controller User Manual Page 31 of 32... -
Page 32: Troubleshooting
Check the connection wirings between the controller and the ATS. Abnormal Check switch related parameter settings. Check system type settings. Genset Start Control Check output function settings and output type. Abnormal Check start/stop function settings of all items. _______________________________________ HAT553LT ATS Controller User Manual Page 32 of 32...
