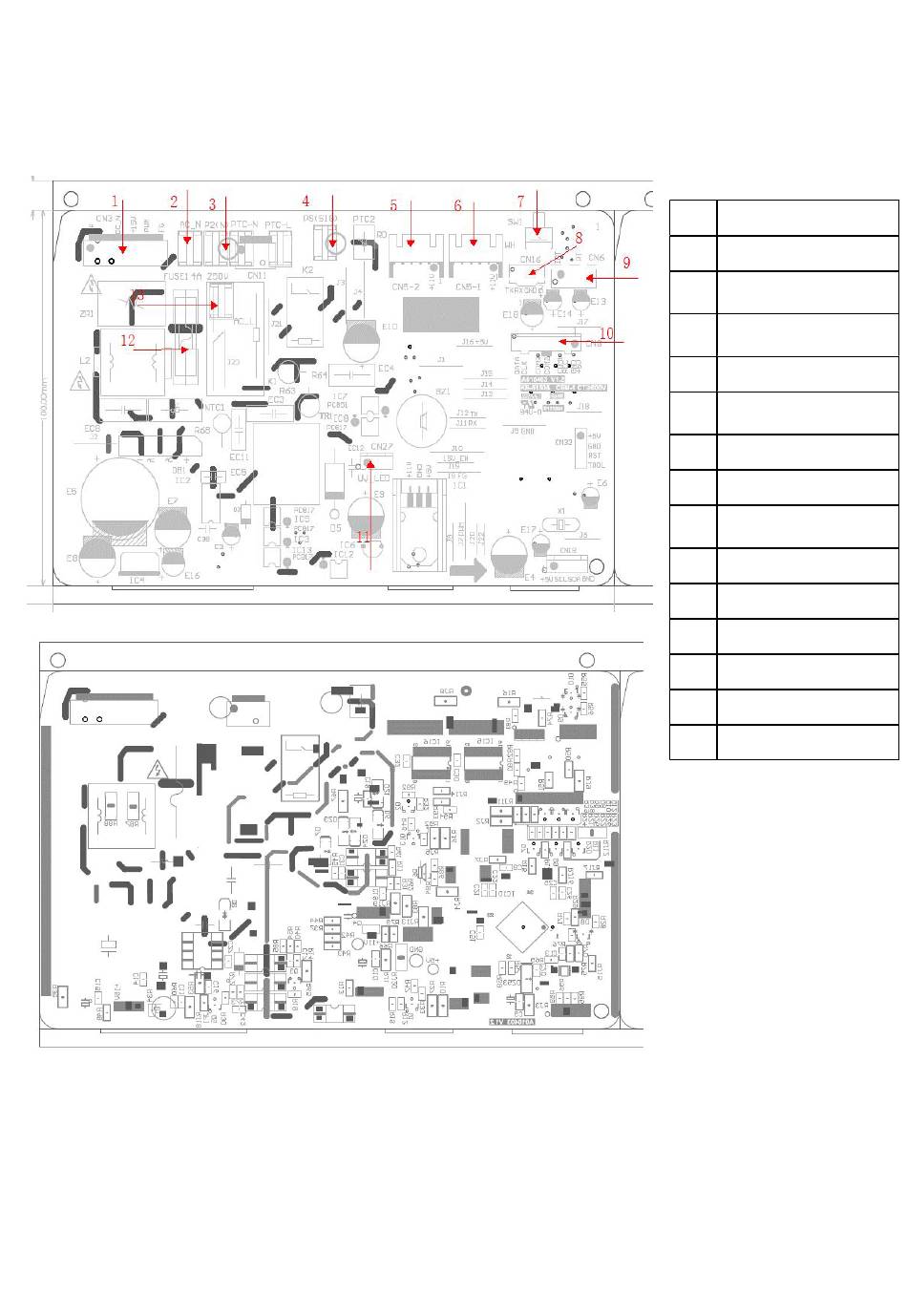

Indoor PCB

WYT009ALSI24RL；WYT012ALSI24RL；WYT012GLSI24RL；WYT018GLSI24RL
Top view
Bottom view
DC motor driver
1
Power supply-N connector
2
IDU/ODU wiring
3
connection-N connector
IDU/ODU communication
（3）
wiring
Left-Right swing connector
4
Up-Down swing
5
connector
Emergency button
6
WIFI connector
7
Temperature sensor
8
connector
Display
9
Cold plasma generator
10
Fuse
11
ODU AC power input
12
DC motor driver
13
Power supply-N connector
14
