PE25203
EVK User's Manual

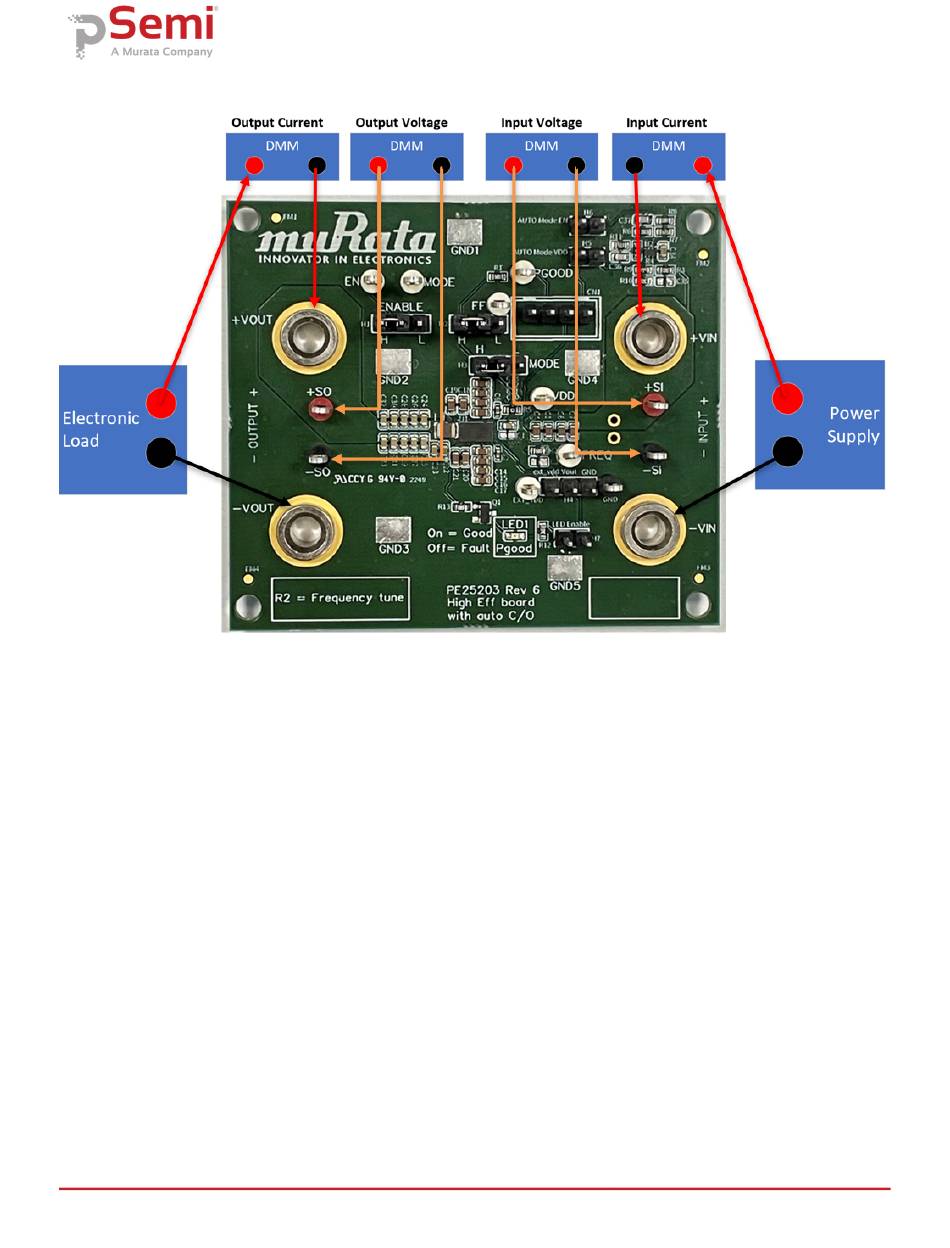

Figure 5 shows the connections for voltage and current measurements
Figure 5. PE25203 EKV Connections to Measure Voltage and Current
