Quick Start Guide
The evaluation board is designed to ease your evaluation of the PE25203. This section guides you through the
hardware configuration and the start-up procedures.
Evaluation Board Overview
The evaluation board contains the following:
Input/output terminals
PCB headers
Sense points

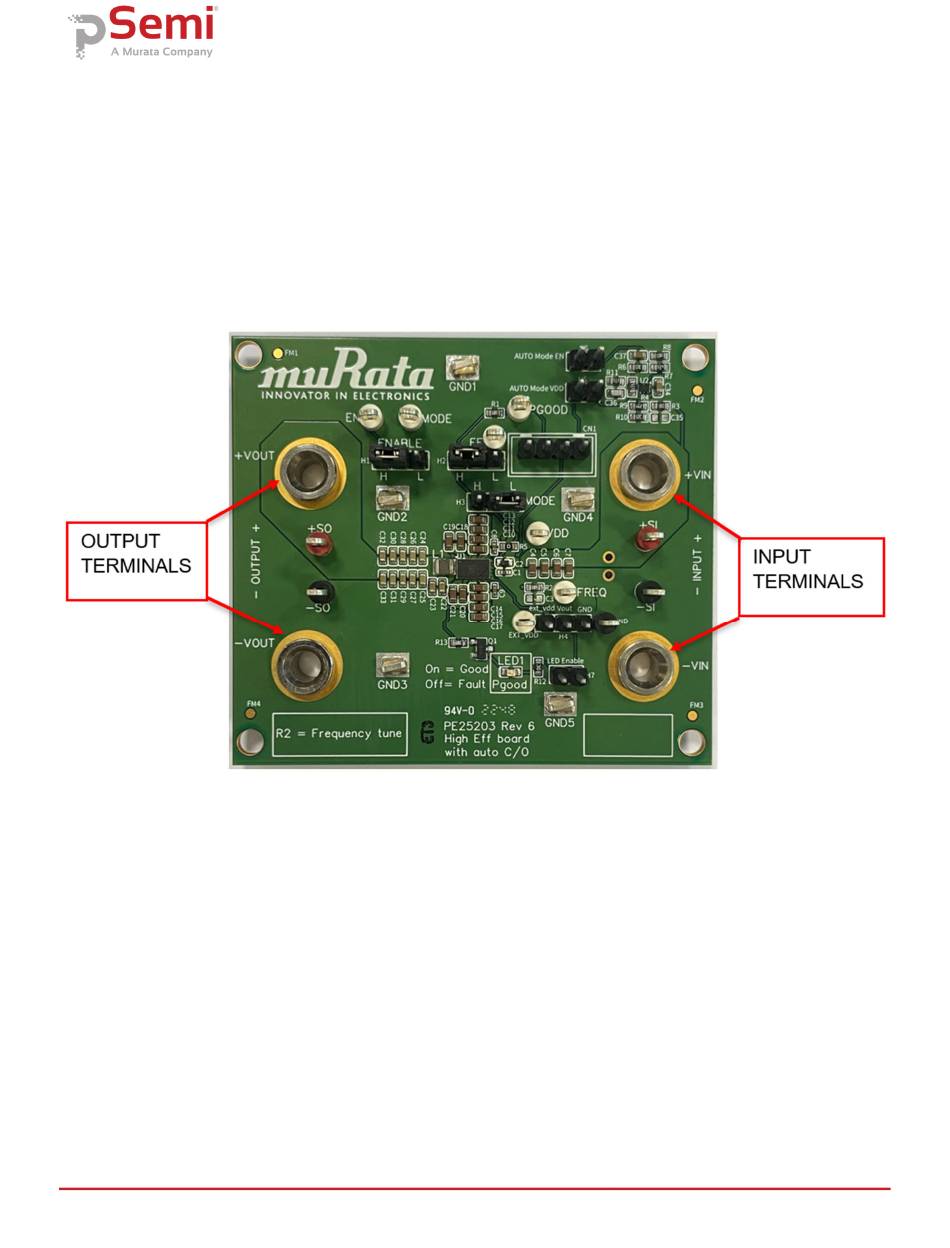

Figure 1. PE25203 Evaluation Board Assembly
