Evaluation kit divide-by-2 and -3, 4a charge pump, capacitor divider
Hide thumbs Also See for pSemi PE25203:
Table of Contents
PE25203
EVK User's Manual

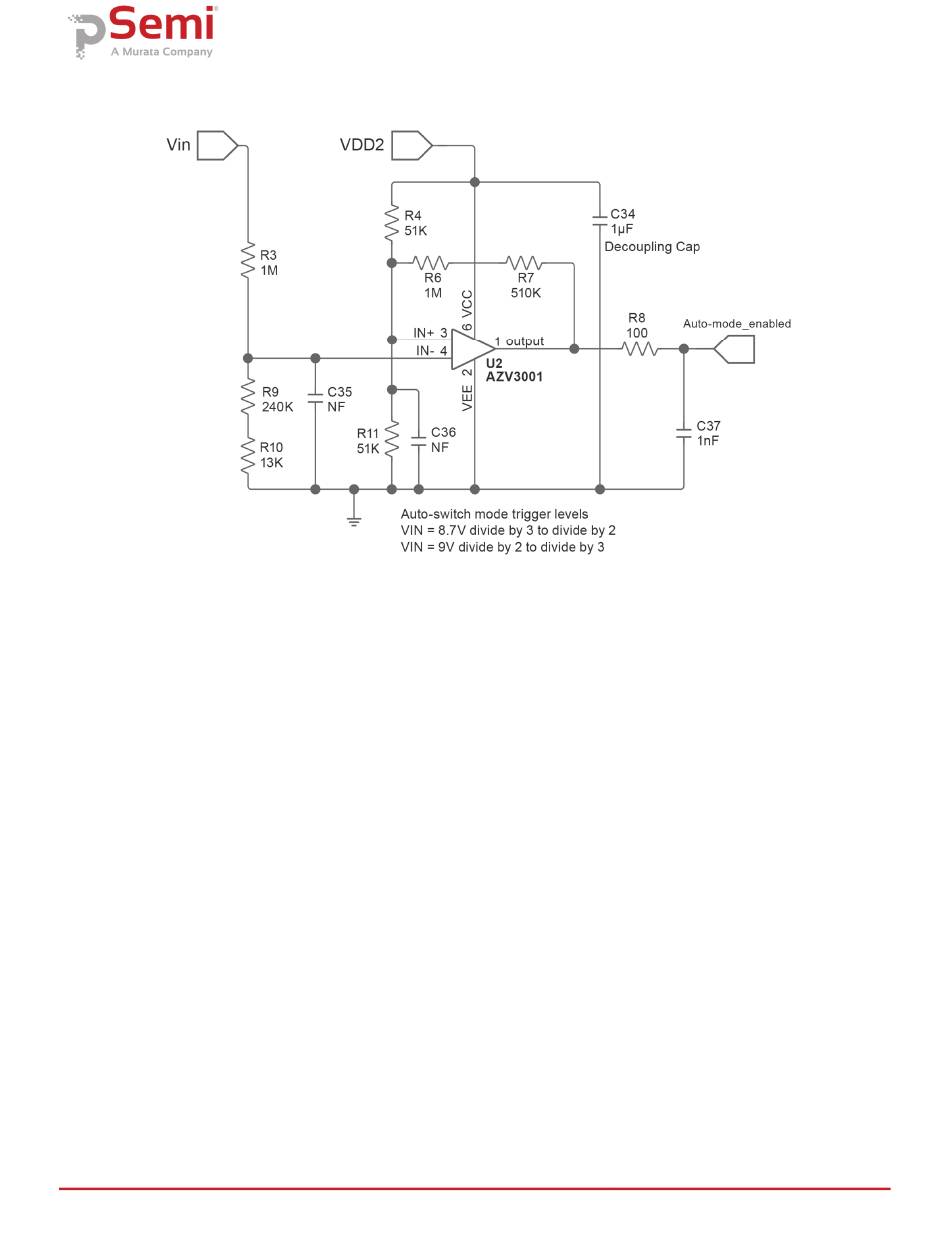

Figure 30 shows the auto-switch mode circuit schematic.
Figure 30. Auto-switch Mode Circuit Schematic
©2023–2025, pSemi Corporation. All rights reserved. • Headquarters: 9369 Carroll Park Drive, San Diego, CA, 92121
Page 28 of 31
DOC-111189-2 – (02/2025)
www.psemi.com
