Layout Considerations

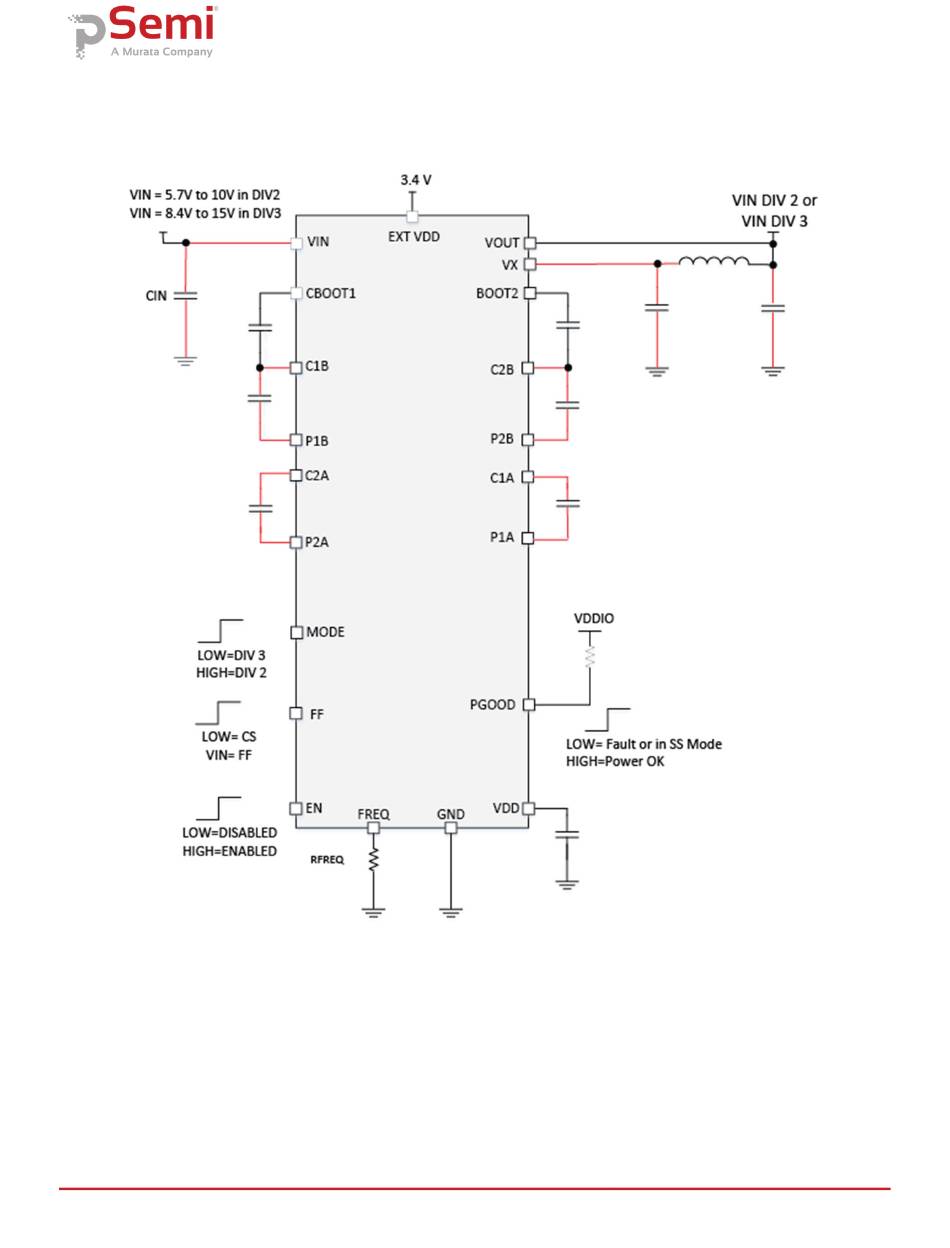

Figure 19 shows the critical components required to implement the PE25203. The highlighted red lines are the
high-power nodes in the design. Pay close attention to the parasitic resistance and inductance at these nodes.
Figure 19. PE25203 Simplified Application Schematic
