Test Results

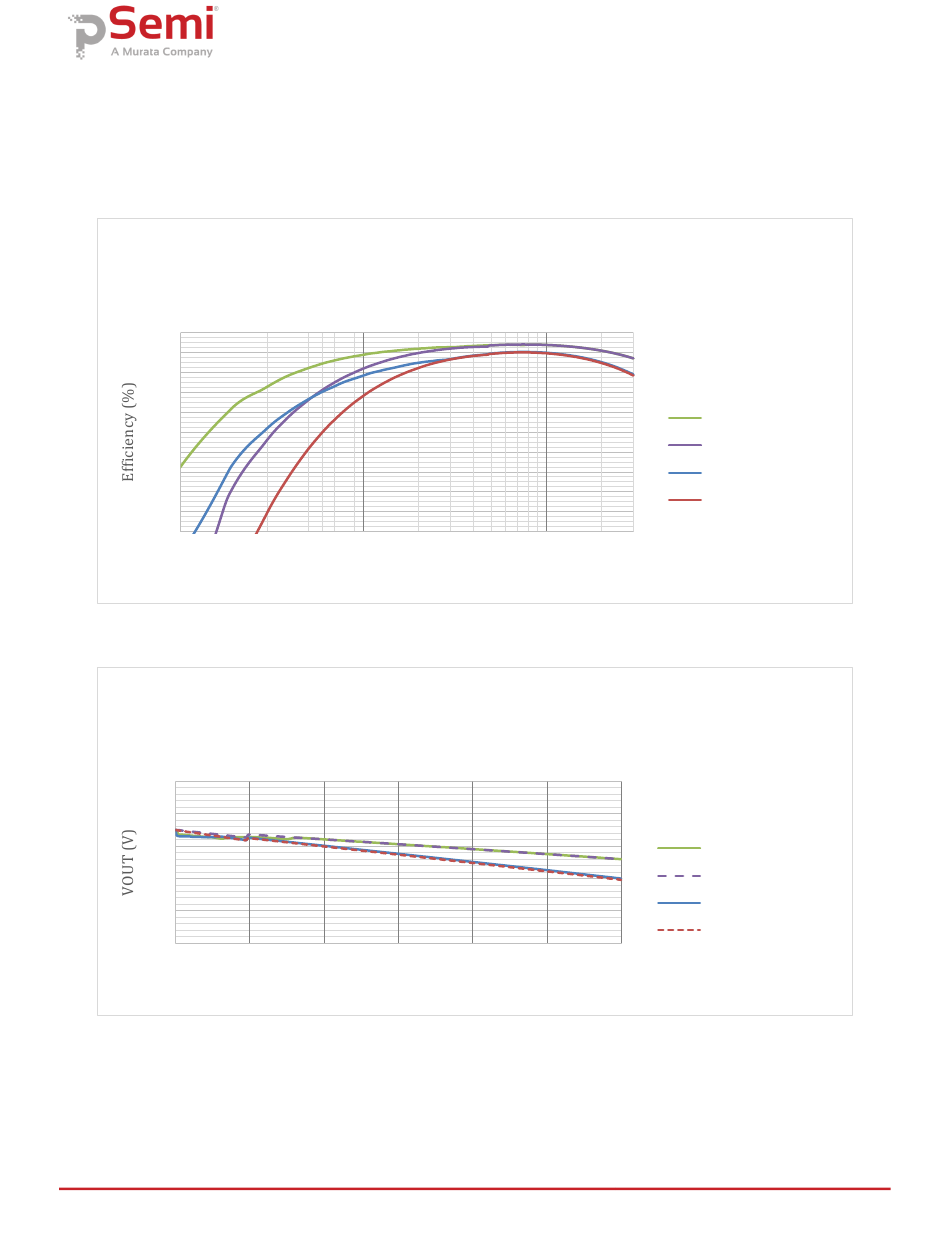

Figure 9 and Figure 10 show the typical performance of the PE25203 evaluation board at the following nominal
voltages:
 7.7V for divide-by-2 mode
 11.55V for divide-by-3 mode
100
98
96
94
92
90
88
86
84
82
80
0.0
Figure 9. PE25203 Efficiency Plots
4
3.9
3.8
3.7
3.6
3.5
0.0
Figure 10. Line Regulation (V
For more waveforms and test data, see the PE25203 Data Sheet.
