Murata pSemi PE25203 User Manual page 13
Evaluation kit divide-by-2 and -3, 4a charge pump, capacitor divider
Table of Contents
PE25203
EVK User's Manual

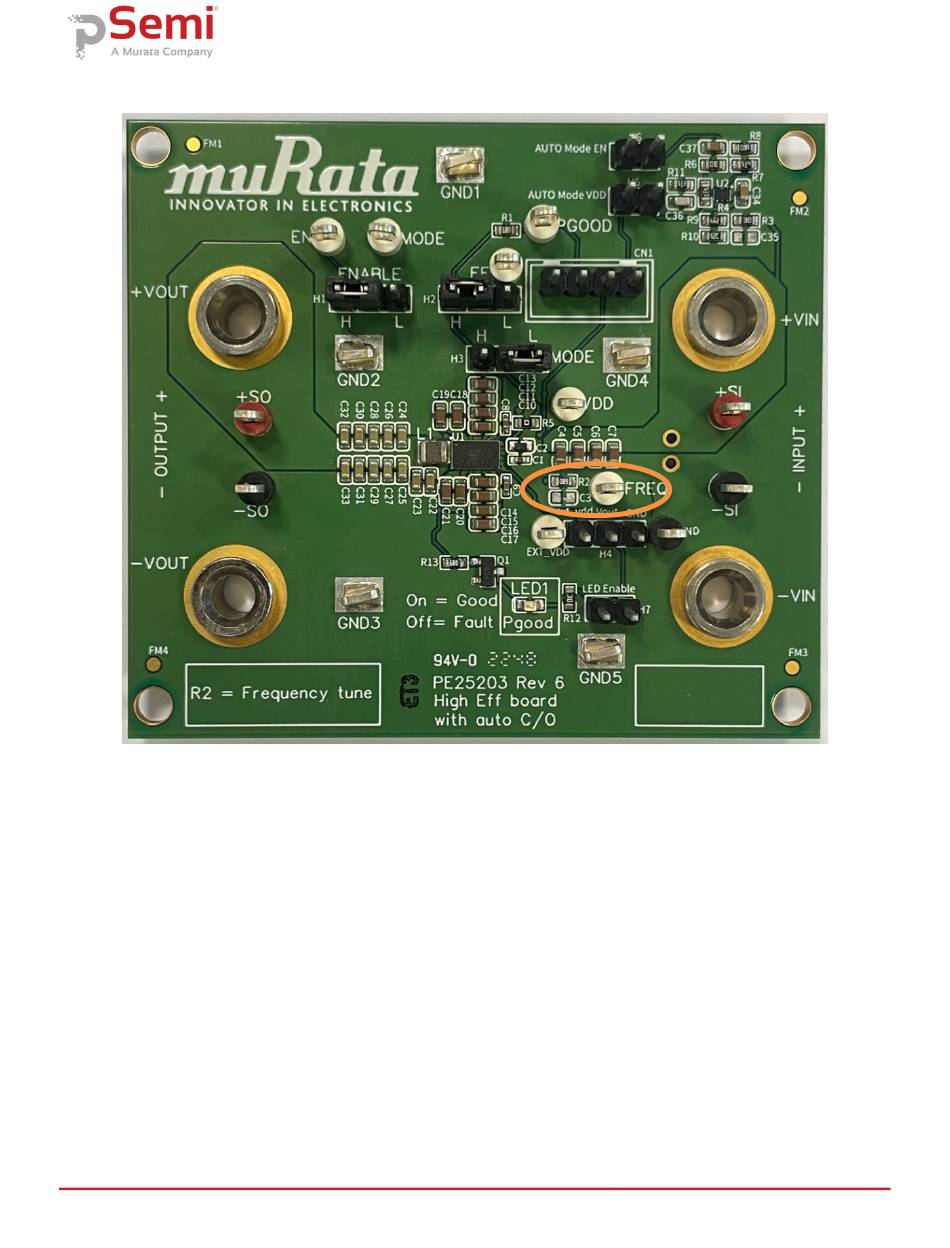

Figure 8 shows the location of FREQ resistor R2. The PE25203 EVK uses a 499 KΩ resistor for R2.
Figure 8. R2 Location
