- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. DELONGHI PACC100EL Owner's Manual Shop genuine replacement parts for DELONGHI PACC100EL Find Your DELONGHI Air Conditioner Parts - Select From 156 Models -------- Manual continues below part list --------...
- Page 2 Available Replacement Parts for DELONGHI PACC100EL TL1865 Filter TL1846 Stopper** see ext info**** TL1871 Stopper TL1853 Tray TL1839 Float TL1875 Condenser TL1857 Stopper TL1884 Power supply cord TL1855 Vent TL1831 5515110411 Remote control TL1854 Tube TL1851 5551016400 Window slider TL1869...
- Page 3 C 1 0 0 / C 1 2 0 C 1 0 0 / C 1 2 0 PORTABLE AIR CONDITIONER CONDITIONNEUR D’AIR PORTATIF SISTEMA DE AIRE ACONDICIONADO PORTÁTIL CONDIZIONATORE D’ARIA Register this product online and receive a free trial issue of Cook's Illustrated. Visit www.delonghiregistration.com.
- Page 4 INDEX TABLE DES MATIERES Important safeguards........ 4 Avertissements...........18 Setting up your portable air conditioner .5 Prèparation à l’emploi ......19 Semi-permanent installation .....6 Installation semi-permanente ....20 Control panel ..........7 Tableau de commande ......21 Operation ............8 Fonctionnement ........22 Self-diagnosis ..........9 Autodiagnostic..........23 Using the remote control unit....10 Fonctionnement avec télécommande 24 Tips ..............13 Conseils ............27...

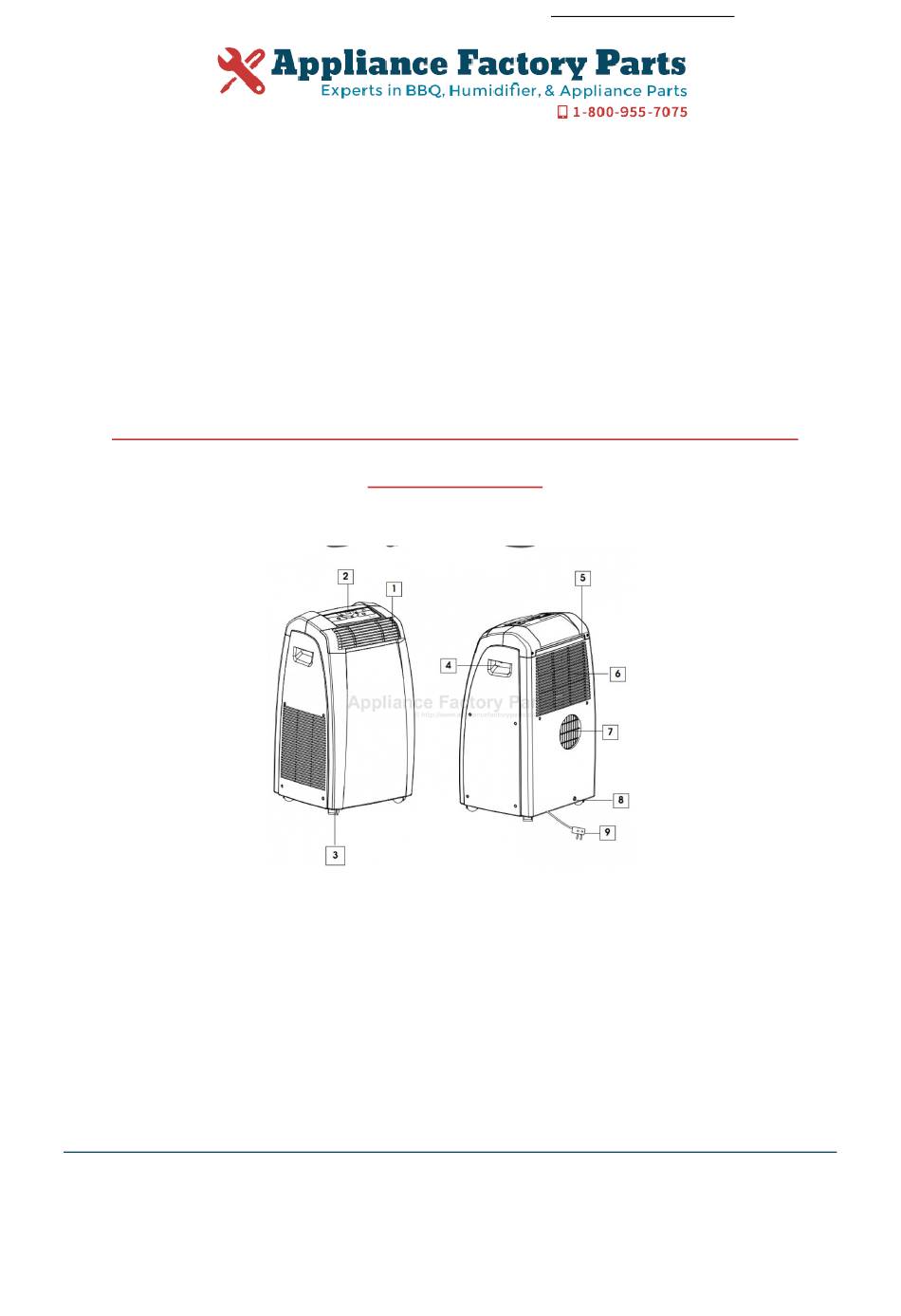

- Page 5 DESCRIPTION • DESCRIPTION DESCRIPTCIÓN DESCRIZIONE • ACCESSORIES • ACCESSOIRES • ACCESORIOS • ACCESSORI...
-
Page 6: Important Safeguards
Important safeguards • Use this appliance only as described in this instruction manual. As with any electrical appliance, the instructions aim to cover as many situations as possible. Caution and common sense should be used when operating and installing this air conditioner. •... -
Page 7: Setting Up Your Portable Air Conditioner
Setting up your portable air conditioner TO AVOID DAMAGE TO THE UNIT: NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE. IF THIS OCCURS, WAIT 6 HOURS BEFORE TURNING THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. After the unit has been on its side, oil needs to return to the compressor to ensure proper function. -
Page 8: Semi-Permanent Installation
Semi-permanent installation SEMI-PERMANENT INSTALLATION • Fit the wall flange (10) into the hole. • Fit the air exhaust hose (11) in the rele- If required, your appliance can also be vant housing located on the rear side of installed semi-permanently (Fig. E). the appliance. -
Page 9: Description Of The Control Panel
Control panel THE CONTROL PANEL DESCRIPTION OF THE CONTROL PANEL A ON/STAND-BY button B MODE selection button: Air conditioning, dehumidifying, fan. C Fan speed selection button (HIGH/MED/LOW/AUTO) D Timer button Programmed operation increase temperature/time button Programmed operation decrease temperature/time button G Display Displays the temperature values set and the programmed operating time H Timer in operation indicator light I/L/M/N Fan speed lights and AUTO lights... -
Page 10: Operation
Operation TURNING THE APPLIANCE ON Plug into an outlet. Two lines appear on the display indicating that the appliance is in stand- Press the ON/STAND-BY button (A). When turned on, the air conditioner starts operating in the same mode as when it was turned off. Press the MODE button (B) until the light corresponding to the desired mode lights up: Light (Q) -
Page 11: Self-Diagnosis
Self-diagnosis SELF-DIAGNOSIS The appliance has a self diagnosis system to identify a number of malfunctions. IF ... IS DISPLAYED ...WHAT SHOULD YOU DO? The appliance is fitted with a frost protection device to avoid excessive formation of ice on internal components. The appliance starts up again automatically when the defrosting process is com- LOW TEMPERATURE (frost prevention) -
Page 12: Using The Remote Control Unit
Using the remote control unit MODELS WITH REMOTE CONTROL • Point the remote control at the receiver on the air conditioner. The remote control MAX 23 ft must be no more than 23 ft (7 metres) MAX 7 metres away from the appliance (without obsta- cles between the remote control and the receiver) •... -
Page 13: Using The Remote Control
Using the remote control TURNING THE APPLIANCE ON Plug into the outlet. Press the ON/STAND-BY button (17) (when turned on, the air conditioner starts operating in the same mode as when it was turned off). Press the MODE button (18) to select the required mode: AIR CONDITIONING (COOL) DEHUMIDIFYING (DRY) FAN ONLY (FAN) - Page 14 Using the remote control • At the end of the set time the appliance switches off automatically. • To cancel the timer programming, press the timer button TIMER (19) again. The appliance emits a beep and both displays reset to display the settings prior to activation of the timer. How to program delayed start up •...
- Page 15 Tips • Never rest objects of any kind on the air To ensure optimal performance from your conditioner. portable air conditioner, follow these recom- • Never obstruct the air intake (6) or outlet mendations: (1) grilles. • close the windows and doors in the room •...
-
Page 16: Cleaning The Surface Of The Unit
Cleaning Before cleaning or maintenance, turn the START OF SEASON CHECKS appliance off by pressing the ON/STAND-BY Make sure the power cable and plug are button (A) or in models with remote control undamaged and the outlet is in good condi- unit, by pressing the ON/OFF button, then tion. -
Page 17: Troubleshooting
Troubleshooting NOTE: NEVER TRANSPORT OR TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE. IF THIS OCCURS, WAIT 6 HOURS BEFORE TURNING THE APPLIANCE ON, 24 HOURS IS RECOMMENDED. After the unit has been on its side, oil needs to return to the compressor to ensure proper function. With- out allowing the unit this time (6-24 hours) the unit may function for only a short time, and then the compressor will break down from lack of oil. -
Page 18: Technical Specification
Technical specifications TECHNICAL SPECIFICATION LIMIT CONDITIONS Power supply voltage see rating label Max. absorbed power Room temperature for during air conditioning “ air conditioning 64 ÷ 95°F (18° ÷ 35°C) Refrigerant “ Cooling capacity “ Transport, filling, cleaning, recovery and dis- posal of refrigerant should be performed by a technical service centre appointed by the manufacturer only. -
Page 19: Limited Warranty
Please contact our toll free customer service call center at Monday – Friday 8:30am – 5:00pm ET or log onto our website at www.delonghiusa.com. CANADA Residents: 1-888-335-6644 Please contact our toll free hotline at or log onto our website at www.delonghi.com. Other countries: Please visit: www.delonghi.com.
