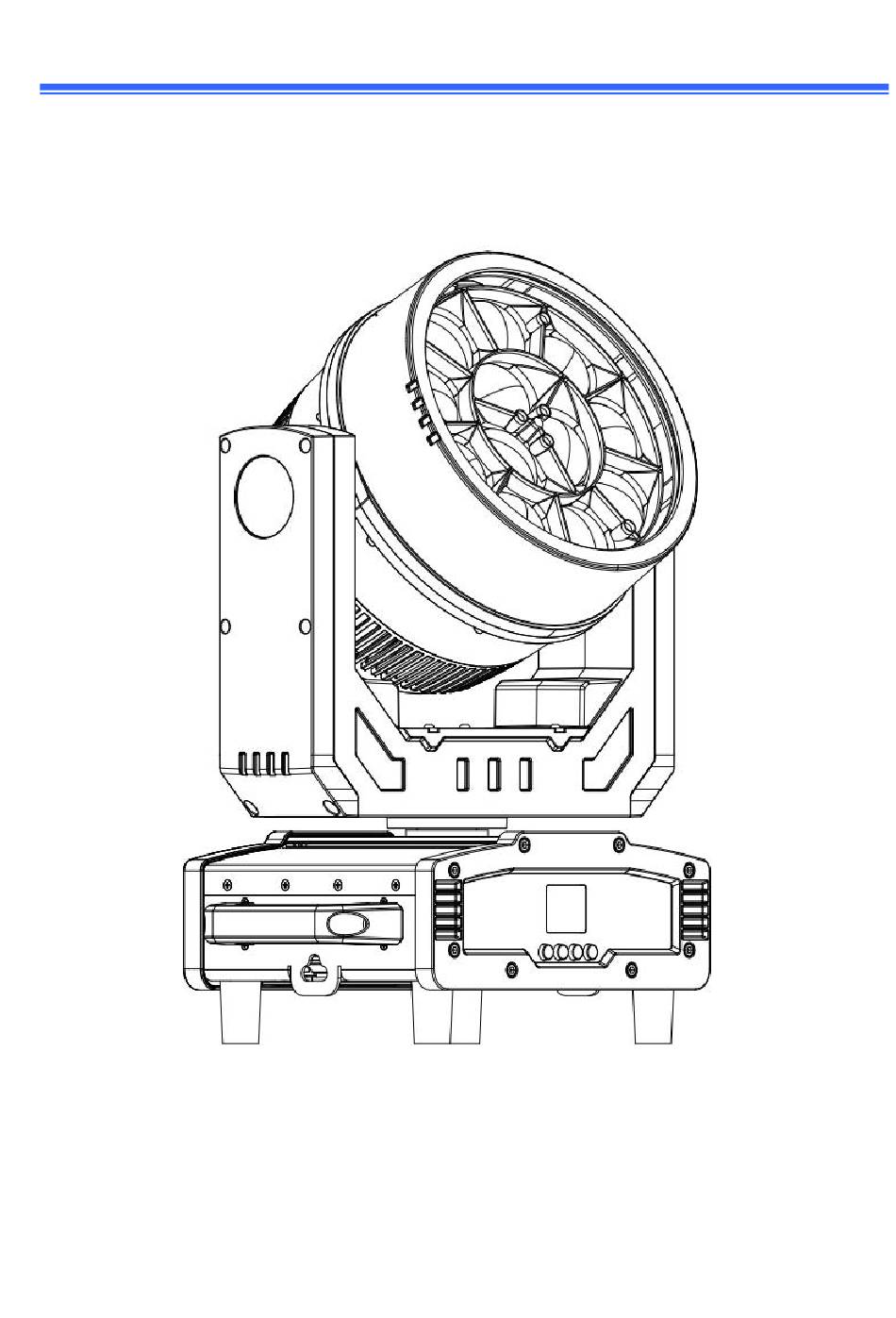

- Page 1 1240ZW IP65 12*40w 4in1 Wash Zoom Moving Head USER MANUAL 1 / 22...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions ..................3-4 Technical Specification ................4-5 Mounting ....................6-7 Display and Menu ..................8-10 LUX Data…………………………………………………....……………11 DMX Set Up ....................12-13 DMX Channel List ...................13-18 Attention ......................19 Trouble Shooting ..................19-20 Products Size ....................20 Fixture Cleaning ..................21 Multiple Unit Power Linking .................21 Fuse Replacement ..................21 Statement Fixtures should be fastened on the hooks with screws. -
Page 3: Safety Instructions
installing the lamps, they also use a safety rope to support the weight of the lamps by 12 times. The installation of the equipment should be carried out by professionals, and it should also be installed in places where people can't reach them casually or where no one is free to pass by. - Page 4 Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact us for the technical support. Do not touch any wire during operation as high voltage might be causing ...
-
Page 5: Technical Specification
Technical Specifications Light Sources: 12 x 40W 4in1 RGBW LED Beam Angle: 3.5°~ 45° Power Consumption: 380W Power Voltage: AC 100-240V, 50/60Hz Dimension: 349X259X484mm Net Weight: 15Kgs Carton packing 1in1 size:445*355*590mm Gross weight: 16.7kg Flight case packing 4in1 size:790*710*670mm Gross Weight: 96.2kg Maximum number of connections: 6 units (220V, 50Hz) 1.5mm²... -
Page 6: Mounting
These installation should be checked by a skilled person once a year. 1240ZW is fully operational in three different mounting positions, hanging upside-down from a ceiling, sideways on trussing, or set on a flat level surface. - Page 7 Be sure this fixture is kept at least 12m (40ft) away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event because of clamp fails (see next page). Never use the carrying handles for secondary attachment.
-
Page 8: Display And Menu
Omega holder’s into the respective holes on the bottom of the 1240ZW. Tighten the quick-lock fasteners fully clockwise. Install the second Omega holder. Pull the safety-cable through the openings located on the base plate and over the trussing system or a safe fixation spot. - Page 9 Display: 1. MENU：To select the programming functions. 2. UP：To go forward in the selected functions. DISPLAY：To show the various menus and the selected function. 4. DOWN：To go backward in the selected functions. 5. ENTER：To confirm the selected functions. 6. DMX IN 7.
- Page 10 2.360 Sound control adjust 2.Mic Sense 001--100 sensitiveness 1.English 3.Language 2.Chinese 1.Black Out 4.No Signal 2.Hold 1. Auto 5. Fan Set 2. Low 3. High 1.Yes 6.Reset 2.No 1.Yes 9.Default 2.No Pass Word **** 1.Pan Pan fine-adjust 2.Tilt Tilt fine-adjust 3.Focus Zoom fine-adjust 4.Rota: 0-255...
- Page 11 1.Yes 1.Pan 2.No 1.Yes 2.Tilt 2.No Reverse 1.Yes 3.Display 2.No 1.CH Value display all channel values Inform 2.Temp/℃ display led board temperature 3.Soft v. xxx software version number 1.DMX512 1.Master 2.Auto 2.Alone 1.Master 3.Sound 2.Alone 1.Pan:0--255 Mode 2.Tilt:0--255 Master 3.Focus）:0--255 4.Red：0--255 4.Manual 5.Greed：0--255...
-
Page 12: Lux Data
LUX Data DMX Set Up Power Supply: The 1240ZW contains a automatic voltage switch, which will auto sense the voltage when it is plugged into the power source. With this switch there is no need to worry about the correct power voltage, this unit can be plugged in anywhere. - Page 13 Data Cable (DMX Cable) Requirements (For DMX Operation): The 1240ZW can be controlled via DMX-512 protocol. The 1240ZW has 2 DMX channel modes. Your unit and your DMX controller require a standard 3-pin or 5-pin XLR connector for data input and data output (Figure 1). If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all pro lighting stores).
-
Page 14: Dmx Channel List
DMX Channel List DMX channel´s functions and values (16DMX channels): Channel Display Function Value CH-1 Pan control 0 --- 255 CH-2 Pan adjustment Pan adjustment 0 --- 255 CH-3 Tilt Tilt control 0 --- 255 CH-4 Tilt adjustment Tilt adjustment 0 --- 255 CH-5 Pan/Tilt speed... - Page 15 Model -2 50 --- 99 Model -3 100 --- 149 Model -4 150 --- 255 0----15 R 100%, G up, B0% 16----35 R down, G 100%, B0% 36----55 R 0%, G 100%, B up 56----75 R 0%, G 100%, B up 76----95 R up, G0%, B 100% 96----115...
- Page 16 7000K 231----235 7500K 236----240 8000K 241----255 0 --- 15 Zone -1 16-- 31 Zone -2 32-- 47 CH-15 Macro Color 16 numbers 1 effect …… Zone -14 224 --- 239 Zone -15 240 --- 255 0 --- 250 CH-16 Reset Reset 250- 255 DMX channel´s functions and values (21DMX channels):...
- Page 17 Dimming Dimming adjustment 0 --- 255 CH-8 adjustment 0 --- 3 CH-9 Strobe From slow to fast 4 --- 203 Random strobe 204 --- 255 CH-10 From dark to bright 0 --- 255 CH-11 Red adjustment Red adjustment 0 --- 255 CH-12 Green From dark to bright...
- Page 18 R down, G 100%, B0% 36----55 R 0%, G 100%, B up 56----75 R 0%, G100%, B up 76----95 R up, G 0%, B100% 96----115 R 100%, G 0%, B down 116----135 R 100%, G up, B up 136----155 R down, G down, B 100% 156----175 R100%G100%B100%W100% 176----195...
-
Page 19: Attention
Effect -2 32-- 47 16 numbers 1 effect …… Effect -14 224 --- 239 Effect -15 240 --- 255 0 --- 250 CH-21 Reset Reset 250- 255 Attention When the lamp is powered on and lit, try to avoid looking directly at the light ... -
Page 20: Products Size
Check the power on LED. B. Not responding to DMX controller DMX LED should be on. If not, check DMX connectors, cables to see if link properly. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. -
Page 21: Fixture Cleaning
Fixture Cleaning The outside of the lens must always be wiped so that the lighting effect is better. Wipe frequency according to the environment. Humidity, excessive smoke, and a particularly dirty environment can make the lens dusty. 21 / 22... -
Page 22: Multiple Unit Power Linking
@ 120V and 7 fixtures @ 240V. After the maximum connected fixtures you will need to use a new power outlet. NOTE: USE WITH CAUTION WHEN POWER LINKING OTHER FIXTURES TO THE 1240ZW AS THE POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! Fuse Replacement Unplug the unit from any power source it may be connected to.
