THRUNITE TC15 V3 Manual

Specifications

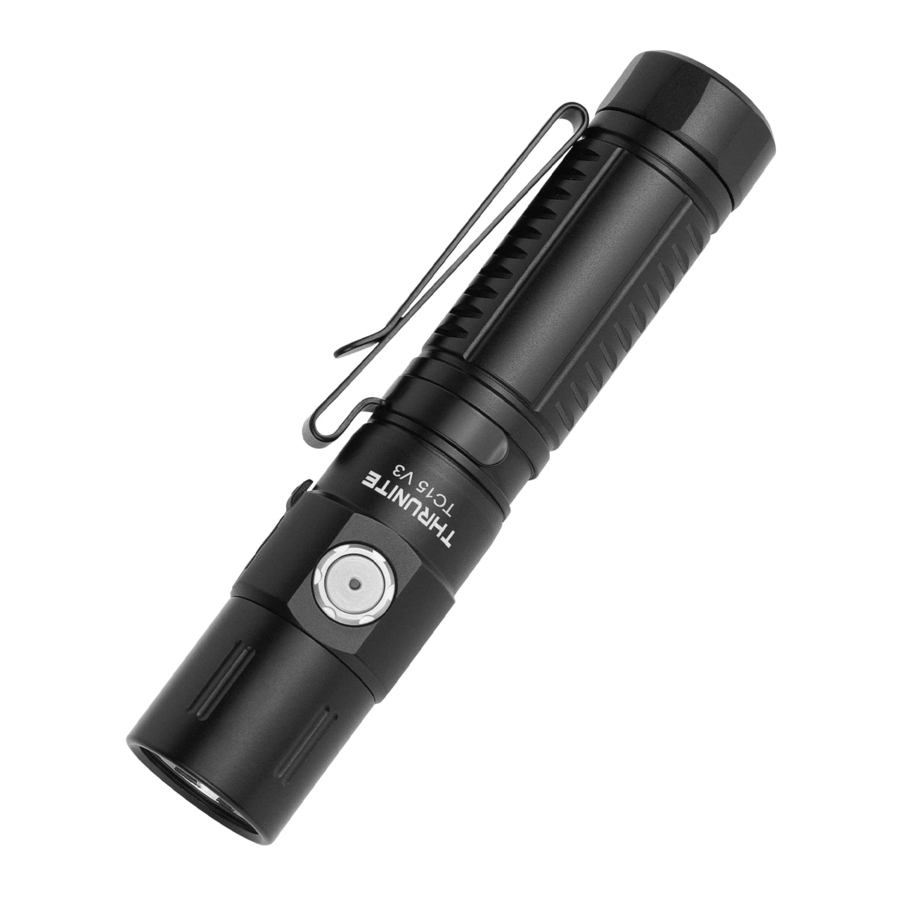

TC15 V3 rechargeable LED flashlight adopts the latest CREE XHP35.2 LED to make output up to 2403 lumens and max beam distance of 223 meters.

Notes: The above parameters tested with one THRUNITE 3100mAh 18650 IMR battery are approximate and may vary between lights, batteries and environment.

Indicator

Note: The indicator will be OFF in firefly mode.

Operation

Please screw down the light head and tail cap tightly before use.

Lock/Unlock
When the flashlight is off, press and hold the side switch to enter the firefly mode.
Under firefly mode, press and hold the side switch to access the lockout mode. Under the lockout mode, press and hold the side switch to unlock the flashlight.

Turn ON/OFF
Press the side switch to turn the light on/off.

Change Modes
When the light is on, press and hold the side switch to cycle through low, medium and high.
Shortcut to firefly: When the light is off, press and hold the side switch to get firefly mode.
Double click to turn to turbo from any mode. Triple click to get strobe.

Rechargeable Function
During charging, the indicator is RED. After being fully charged, the indicator will be BLUE. When indicator flashes purple, it means abnormal charging. Only low mode is available while charging.

Memory Function
The light will turn on in the last mode used, except firefly, turbo and strobe.

1. THRUNITE flashlights are high-intensity lighting devices capable of causing eye damage or other harms, so please avoid shining our light directly into anyone's eyes.
2. Please keep flashlights away from children.
3. To protect the battery, driver circuit and LED, we Do NOT recommend you run the light at max mode more than ten minutes.
