www.ti.com
EVM User's Guide: XTR200EVM
XTR200 Evaluation Module
Description
The XTR200 evaluation module (EVM) is a
development platform for evaluating the XTR200,
which is a high-voltage, precision output driver for
3-wire current or voltage systems. The device is
designed for standard industrial signal levels of 0mA
to 20mA, 4mA to 20mA, 0mA to 25mA, and 0V to 10V.
Features
•
Supports both voltage output and current output
modes
•
Supply voltage range of 8V to 60V
•
Integrated output transistor
•
Footprint for optional external output transistor
•
Footprint for optional protection circuitry
SBOU323 – JUNE 2025
Submit Document Feedback
Applications
•
•
•
•
•
•
•
•
•
•
•

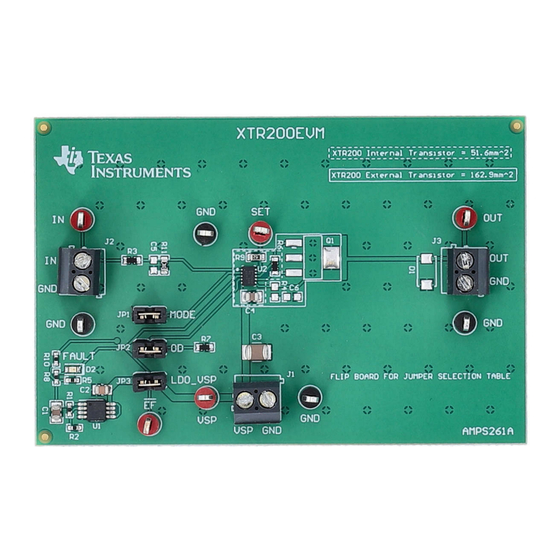

Figure 1-1. XTR200EVM Hardware Board
Copyright © 2025 Texas Instruments Incorporated
Position sensor
Pressure transmitter
Temperature transmitter
Flow transmitter
Analog output module
AC drive control module
CPU (PLC controller)
HVAC valve and actuator control
Constant-current sensor biasing
Resistance Temperature Detector (RTD) biasing
High-side current source
Description
XTR200 Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments XTR200
Summary of Contents for Texas Instruments XTR200
- Page 1 Description EVM User's Guide: XTR200EVM XTR200 Evaluation Module Description Applications The XTR200 evaluation module (EVM) is a • Position sensor development platform for evaluating the XTR200, • Pressure transmitter which is a high-voltage, precision output driver for • Temperature transmitter 3-wire current or voltage systems.
-
Page 2: Kit Contents
The XTR200EVM is the evaluation module (EVM) for the XTR200 high-voltage, 3-wire current-loop transmitter. The XTR200 supports both output current and output voltage configurations by setting the mode pin high or low. The device features an integrated low-leakage PMOS output transistor and short-circuit current protection. -
Page 3: Jumper Information
Output Control Closed Open: Output disabled Closed: VSP does power the 3.3V LDO (U1) LDO_VSP Closed Open: VSP does not power the 3.3V LDO (U1) SBOU323 – JUNE 2025 XTR200 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... -
Page 4: Output Mode Configuration
Hardware www.ti.com 2.3 Output Mode Configuration This section describes the different output mode configurations of the XTR200. 2.3.1 Current Mode Configuration For current mode, use Equation 1 to calculate the output current. The default value for the R resistor (R9) is 1.5kΩ, optimized for input voltage ranges of 0V to 3V, to achieve an output signal of 0mA to 20mA. - Page 5 Load £ MODE Figure 2-3. XTR200 Voltage Output Configuration Circuit Drawing 2.4 SET Pin The SET test point can be used to monitor the voltage at the SET pin when in current mode. Do not apply a voltage onto this pin.
-
Page 6: Power Requirements
VSP and GND. The 3.3V LDO is not necessary for the XTR200 to operate. The XTR200 has a built-in weak internal pullup resistors to 3.3V in the OD, MODE, and EF pins. The primary function of the onboard 3.3V LDO is to power the LED for visible fault detection from the EF pin. - Page 7 CE Ma rk M7582-05 M7582-05 M7582-05 S J -5303 (CLEAR) S J -5303 (CLEAR) S J -5303 (CLEAR) S J -5303 (CLEAR) Figure 3-1. XTR200EVM Schematic SBOU323 – JUNE 2025 XTR200 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 8: Pcb Layouts
3.2 PCB Layouts Figure 3-2 Figure 3-3 show the PCB layouts. Figure 3-2. XTR200EVM Top Composite Overlay Figure 3-3. XTR200EVM Bottom Composite Overlay XTR200 Evaluation Module SBOU323 – JUNE 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... - Page 9 V Output, 7 to 100 V Input, 8-pin MSOP (DGN), DGN0008B TPS7A4001DGNT Texas Instruments -40 to 125 degC, Green (RoHS & no Sb/Br) XTR200DQCR WSON10 XTR200DQCR Texas Instruments SBOU323 – JUNE 2025 XTR200 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
- Page 10 Littlefuse 400V Transistor, PNP, 400 V, 0.5 A, SOT-223 SOT-223 FZT958TA Diodes Inc. 3.32k RES, 3.32 k, 1%, 0.1 W, 0603 0603 RC0603FR-073K32L Yageo XTR200 Evaluation Module SBOU323 – JUNE 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
-
Page 11: Additional Information
Texas Instruments, Power Tips: Calculate an R-C Snubber in Seven Steps technical article • Texas Instruments, How to select a Surge Diode application note SBOU323 – JUNE 2025 XTR200 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated... - Page 12 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 13 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 14 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 15 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 16 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
- Page 17 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
