Arrows Hobby SKY CRUISER Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
# AH027PV
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKY CRUISER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arrows Hobby SKY CRUISER

Summary of Contents for Arrows Hobby SKY CRUISER

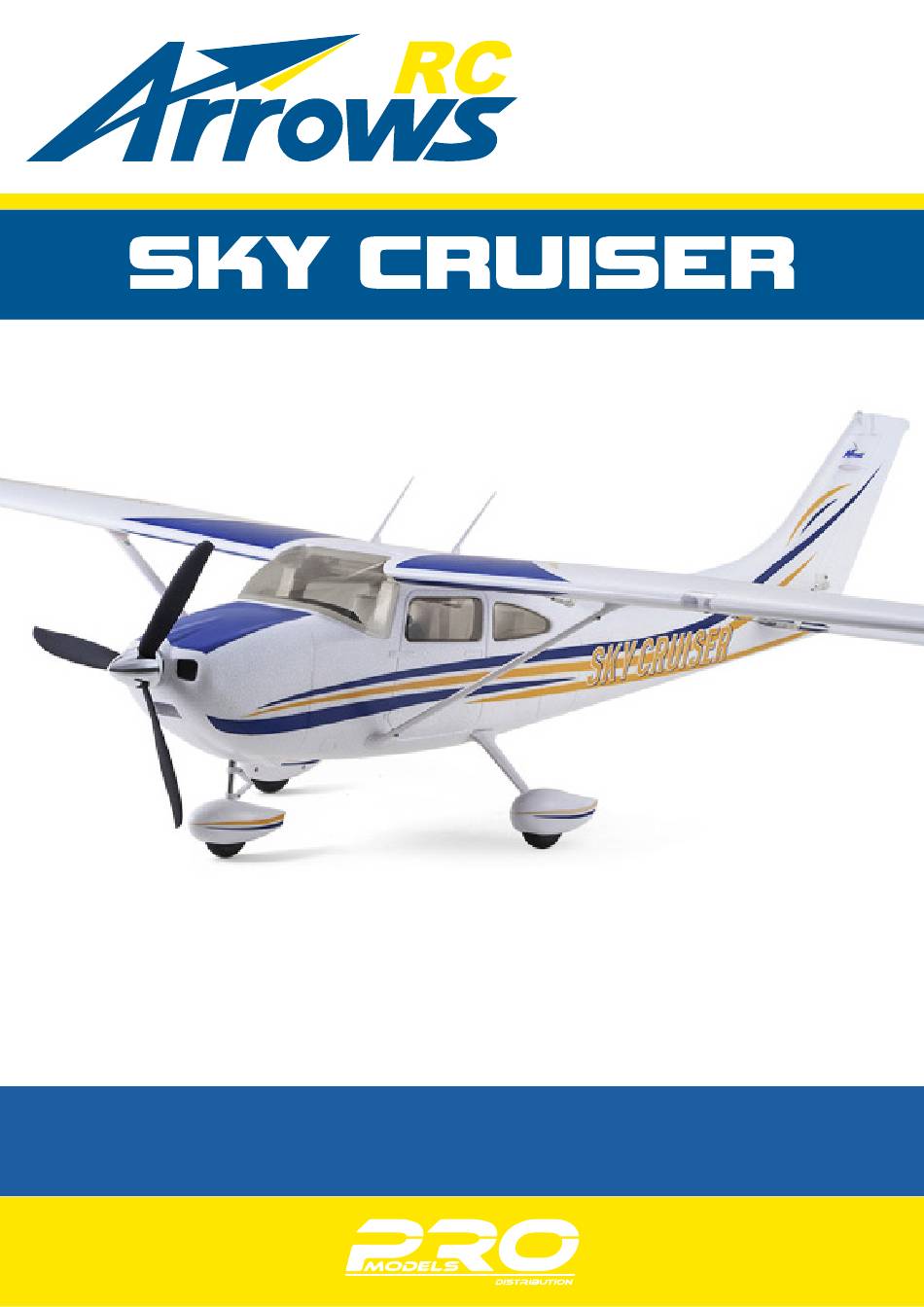

  • Page 1 # AH027PV Instruction manual...

  • Page 2: Safety Precautions And Warnings

    Warning: This manual contains important information that will help you maintain and operate your model aircraft in a reliable and safe manner. Please read the instructions and warnings carefully prior to assembly, setup or use. As this model aircraft is a sophisticated hobby product, it must be flown with safety and common sense in mind, failure in doing so may result in injury or property damage.

  • Page 3: Specifications

    Introduction The Arrows Hobby 1400mm Sky Cruiser is a fantastic option for a training aircraft, offering stability, ease of flying, and simple controls. The factory configuration includes a high-quality 40A ESC (Electronic Speed Controller), a 3536-KV850 motor and 6pcs 9g servos for precise control of flaps, ailerons, elevators, and rudder.

  • Page 4: Model Assembly

    MODEL ASSEMBLY Landing installation 1. Insert the nose gear in the support at the front of the fuselage. 2. Attach the front landing gear using the screw supplied (PM2.0x8mm). Insert the screwdriver and screw through the air intake in the cowling, as shown. 3.

  • Page 5: Main Wing Assembly

    MODEL ASSEMBLY Main wing assembly 1. Apply special cyanoacrylate foam glue to the fuselage (see picture) 2. On the wing, apply cyano foam adhesive in the area shown in Fit the wing strut brackets to the fuselage and hold firmly for a few the picture.

  • Page 6: Bottom Side

    MODEL ASSEMBLY Main wing assembly 6. Fit the wing struts to the fuselage base and main wing, and secure them with the screws (PM3.0x6mm x 4) and nuts supplied. Horizontal and vertical stabilizer assembly Bottom side Left side 1. Place and secure the control horn and bottom plate to the lift 2.

  • Page 7: Propeller Installation

    MODEL ASSEMBLY Horizontal and vertical stabilizer assembly 4. Connect and secure the linkage rod to the control horn of the 5. Connect and secure the linkage rod to the control horn of the rudder. Use the first hole of the control horn. vertical fin.

  • Page 8: Battery Installation

    BATTERY INSTALLATION 1. Remove the battery cover. 2. Remove the hook and loop tape from the fuselage. Apply the looped surface to the battery. 3. Install the battery into the fuselage- securing it with the pre-installed battery straps. Note: The weight of Lipo batteries may vary depending on the type of manufacture.

  • Page 9: Preflight Check

    PREFLIGHT CHECK Important ESC and model information 1. The controller supplied with the model has a safe start feature. If the motor battery is connected to the controller and the throttle is not in the ‘OFF’ position, the motor will not start until the throttle is moved to the ‘OFF’ position. Once the throttle has been moved to the ‘OFF’ position, the engine will emit a series of beeps, meaning that the controller has detected the battery cells.

  • Page 10: Control Horn And Servo Arm Settings

    CONTROL HORN AND SERVO ARM SETTINGS =MAX. travel FIRST FLIGHTS SETTINGS 1. The table shows the factory settings for the control horns Control Horn Servo Arm and servo arms. Fly the aircraft with the factory settings before making any changes. 2.

  • Page 11: Flight Tips

    BEFORE FLYING THE MODEL Always power up your transmitter first. Make sure that the throttle stick is in the down position (otherwise the engine will start immediately which may cause injury and damage). Install a fully charged battery in the aircraft, then connect it to the controller. Note: Please refer to the transmitter manual supplied with your radio control system for a ground range check.

  • Page 12: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION • Lower throttle stick and throttle trim to lowest • ESC is not armed. Aircraft will not respond to the throttle but settings. • Throttle channel is reversed. responds to other controls. • Reverse throttle channel on transmitter. •...

  • Page 13: Declaration Of Conformity

    DECLARATION OF CONFORMITY 1. Manufacturer Information - Manufacturer Name : DongGuan Arrows RC Technology Co., Ltd - Manufacturer Address : Unit 1, Building. 1,No. 4 Huiyuan Road, Wangniudun town, Dongguan - Authorized Representative Name (if applicable) : Issac Le 2. Product Information - Product Name : Refer to the attached product information sheet.
  • Page 14 Arrows RC is distributed by Pro Models Geelseweg 80 • 2250 Olen • Belgium info@promodels.be...
