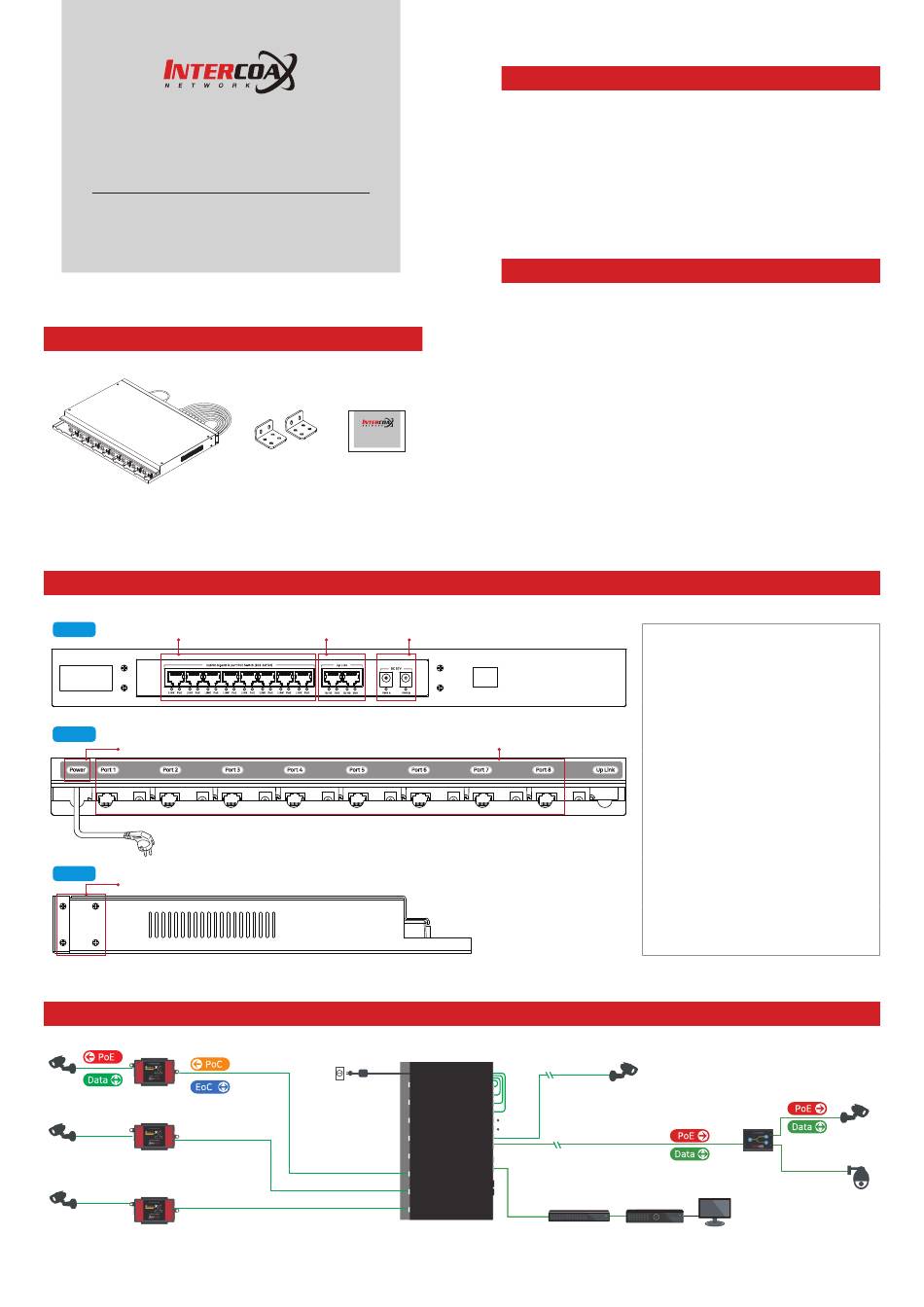

Intercoax EUP-08R Quick Start Manual

Quick Start Guide
EUP-08R
Please read carefully the instruction manual before use.
Contents of this manual are subject to change without prior
notice for reasons such as functionality enhancements.
Rev.1.3
Package
EUP-08R
Front
 RJ45
Front
Back
 POWER
Side
 Bracket Holes
PoE
Camera
EUP-01T
PoE
Camera
EUP-01T
Max. 400m
PoE
Camera
EUP-01T
Bracket Quick Start
Guide
Hardware Overview
 RJ45 Uplink  DC IN
Applications
100V~220V AC
EUP-08R
Overview
EUP-08R is an all-in-one 8-port Ethernet over UTP receiver and Hybrid
switch that simultaneously transmits network data and supplies PoC
power at high speed and long distance via UTP (Cat5E or better) cable,
while also supporting existing Ethernet and PoE+ for long distances. It
is a cost-effective and time-saving solution to migrate from an existing
analog system to an IP-based system. Network cameras are easy to
install with re-use of the existing UPT cables. At the same time, it is
possible to use general Ethernet, and if combined with the HPS-01
switch, transmission can be extended up to 200m at a speed of up to
100Mbps. Premium 150W single power supply is included.
Features
 Long reach Ethernet & PoE extention over UTP cable
 Data & PoE distance up to 400m
 100Mbps Full Duplex
 Multicast Ready
 PoE, PoE+, Extra PoE (Max. 60W Output) – Use of additional power
adaptor
 LED Indication (Data, Power)
 Plug & Play
 Surge Protection
 10/100/1000 Base-T Ethernet (Full Duplex) 8+2 Hybrid PoE Switch
 8-port PoE (IEEE802.3af standard) / PoE+ (IEEE802.3at standard)
 Extended Ethernet distance up to 200m (10/100 Base-T Ethernet
standard / With the HPS-01 switch)
 150W Single power supply included
 19" Rack
 RJ45:
10/100/1000 Base-T Ethernet Port
/ 8 ports PoE+ (IEEE8002.3af/at –
Max.25.5W)
 RJ45 Uplink:
10/100/1000 Base-T Ethernet Uplink
 PORT
Port
 DC IN:
DC Power Input
Î
 POWER :
Recommended use: 100V~220V AC
 PORT:
Each port of the EUP-08R connects to
an EUP-01T via Cat5e (4-Pair) cables
 Bracket Holes:
Used to fix the product to the rack
Max. 100m
PoE Camera
Max. 200m
PoE/Non-PoE Switch
NVR
EUP-08R uses only one big power
supply.
PoE
Camera
HPS-01
Max. 100m
PTZ IP PoE
Camera
