TV Controls

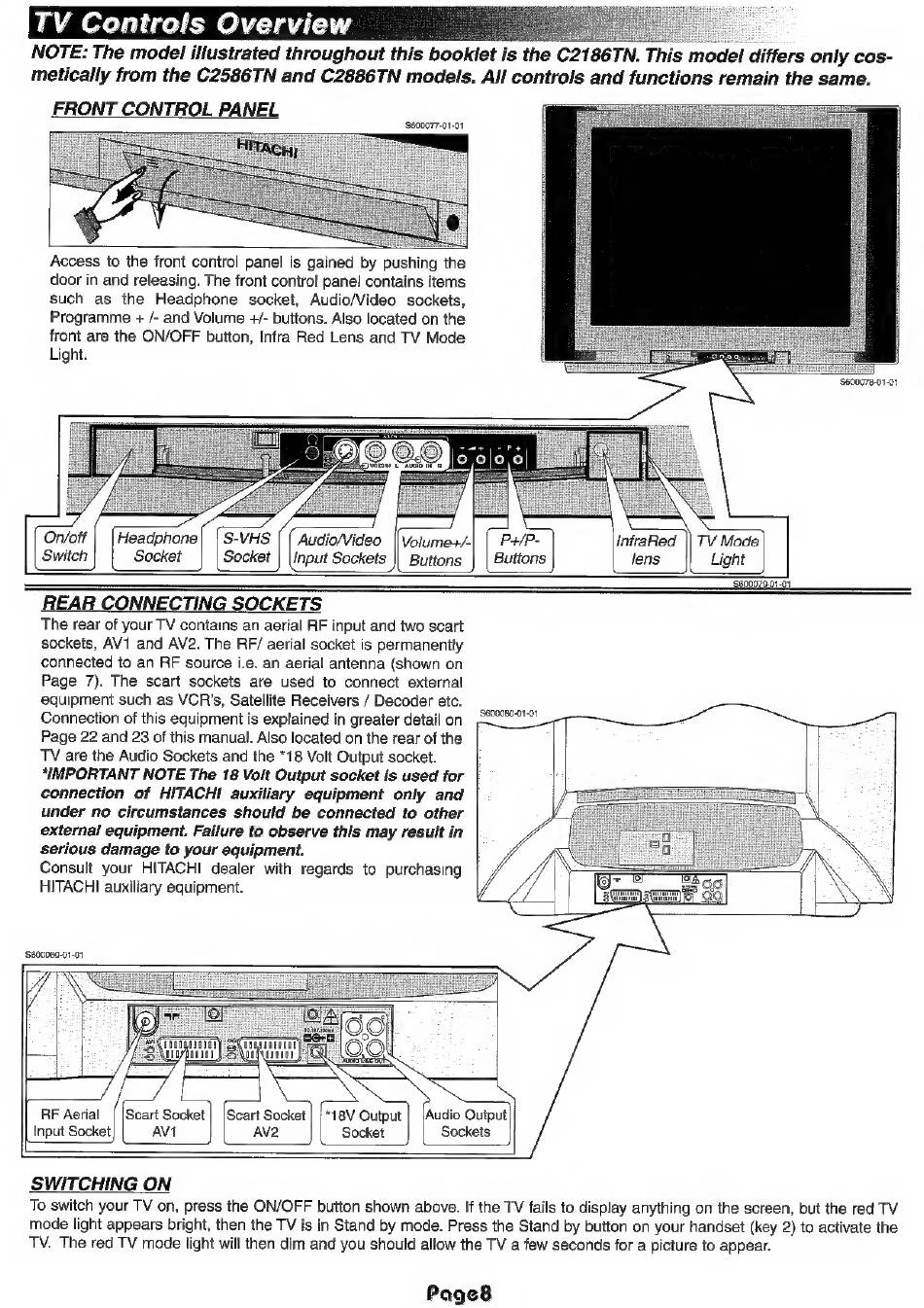

FRONT CONTROL PANEL
'$600077-01-01
Access to the front control panel is gained by pushing the
door in and releasing. The front contro! panel contains items
such as the Headphone socket, Audio/Video sockets,
Programme + /- and Volume +/- buttons. Also located on the
front are the ON/OFF button, Infra Red Lens and TV Mode
Light.
InfraRed
Switch
Socket
Socket | |Input Sockets || Buttons
lens
Buttons
REAR CONNECTING SOCKETS
The rear of your TV contains an aerial RF input and two scart
sockets, AV1 and AV2. The RF/ aerial socket is permanently
connected to an RF source i.e. an aerial antenna (shown on
Page 7). The scart sockets are used to connect external
equipment such as VCR's, Satellite Receivers / Decoder etc.
Connection of this equipment is explained in greater detail on
Page 22 and 23 of this manual. Also located on the rear of the
TV are the Audio Sockets and the *18 Volt Output socket.
'IMPORTANT NOTE The 18 Volt Output socket is used for
connection of HITACHI auxiliary equipment only and
under no circumstances should be connected to other
external equipment. Failure to observe this may result in
serious damage to your equipment.
Consult your HITACHI dealer with regards to purchasing
HITACHI auxiliary equipment.
'8600080.01-01
'$600080-01-01
RF Aerial
Input Socket
Scart Socket | |Scart Socket | |*18V Output
\Audio Output
AVI AV2 Socket
Sockets
SWITCHING ON
Page8
