Summary of Contents for Next Wave CNC Shark HD5

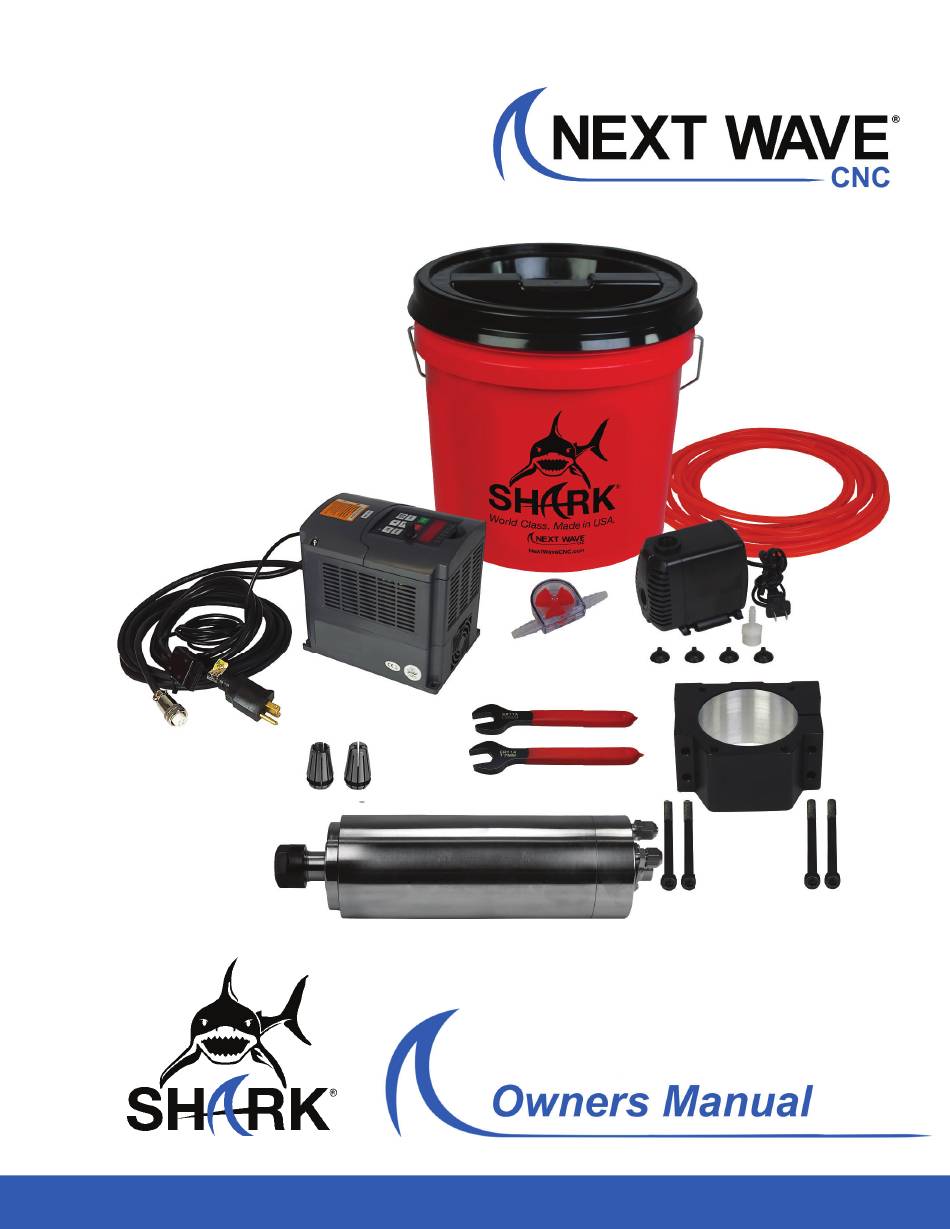

- Page 1 Product colors may vary vary 3HP Spindle with cooling bucket © 2024 Next Wave CNC - All Rights Reserved...
- Page 2 If you need technical assistance with your SHARK CNC HD5 3HP 110v SPINDLE SYSTEM, please visit our Support webpage at: NextWaveCNC.com/support or email Customer Support at: Support@NextWaveCNC.com...
-
Page 3: To Our Customers
To Our Customers System Requirements Thank you for purchasing the Shark CNC HD5 3HP 110v The Shark CNC HD5 3HP 110v Spindle System is Spindle System with digital interface. The liquid-cooled, designed for the HD series machines which includes brushless spindle is ultra-quiet, made with long-life, pre- the HD500, HD510 and HD520 machines. - Page 4 This warranty is void if the SHARK CNC HD5 3HP 110v SPINDLE SYSTEM or any portion of it is modi- fied without the prior written permission from Next Wave CNC, or if it is located or has been used outside of the country where the machine was purchased.
- Page 5 VCarve files, screen captures, or photos of your setup or the problem. Support Email: Support@NextWaveCNC.com Available: 9 am – 5 pm (ET) Monday-Friday Next Wave CNC, LLC, 600 W. Boundary St., Perrysburg, Ohio 43551 Main Office Phone (419) 318-4822 info@NextWaveCNC.com...
- Page 6 CONTENTS Unboxing Your 3HP Spindle Software Update ......... 10 Components Overview ......5 Troubleshoot Spindle Installation .........6 ........11 Cooling Assembly ........7 Gantry Upgrade Power hook-up ........9 ........11 For videos and tips on getting started with your CNC visit: www.NextWaveCNC.com/gettingstarted or scan the QR code below.
-
Page 7: Components Overview
Components Overview Your SHARK CNC HD5 3HP 110v SPINDLE SYSTEM See the illustration below to get familiar with all of the comes with everything you need to install and connect parts of your spindle package. You’ll also find a variety of it to your CNC unit, including a cooling system, variable- helpful videos online at frequency drive (VFD) unit, mounting hardware, and... - Page 8 Install the Spindle Facing the front on your machine, loosen the two bolts the mount with the four included mounting bolts. Fully tighten the two bolts on the right side (Figure 3). Slide on the left side of the mount and remove the router (Figure 1).
- Page 9 Attach the Water Tubing & Flow Meter Cool it! The liquid cooling system prevents the spindle from over- heating, prolonging its life. Remove the nuts from the two coolant fittings at the top of the spindle (Figure 5). Slide one of the nuts onto the short section of water tubing and then onto one of the hose nipples on top of the spindle—it doesn’t matter which one.
-
Page 10: Water Source
Pump and Reservoir Water Source Next, you’ll connect the coolant reservoir and pump. Start by running the pump’s electrical cord through the grom- met in the reservoir lid from the bottom side. Insert the tubing ends through the grommet from the top side of the lid. - Page 11 Final Hook-Up the X-axis cable carrier. Refer to the instruction manual Attach the spindle power cable to the top of the spindle supplied with your machine to open and close the drag- by aligning the matching groove and tab on the cable end chain links.
-
Page 12: Update Your System
If the spindle fails to turn on, you should update the firmware. Complete instructions Save toolpaths using the Next Wave CNC (inch) (*.tap) for updating the firmware and the required downloads are or Next Wave CNC (mm) (*tap) post processor (Figure... -
Page 13: Troubleshooting
Collet & Nut installation 1/4” or 1/2” Collet The 3 HP spindle comes with a 1/4” and a 1/2” collet. To install a collet, insert the short, beveled end into the spindle nut (a), hold the collet against the inside wall of the spindle nut (b) and give it a firm twist while pushing in to engage the snap ring inside the spindle nut (c). - Page 14 3HP Spindle User’s Manual Version:8/1/2024...
