Summary of Contents for Baumatic BFD6S

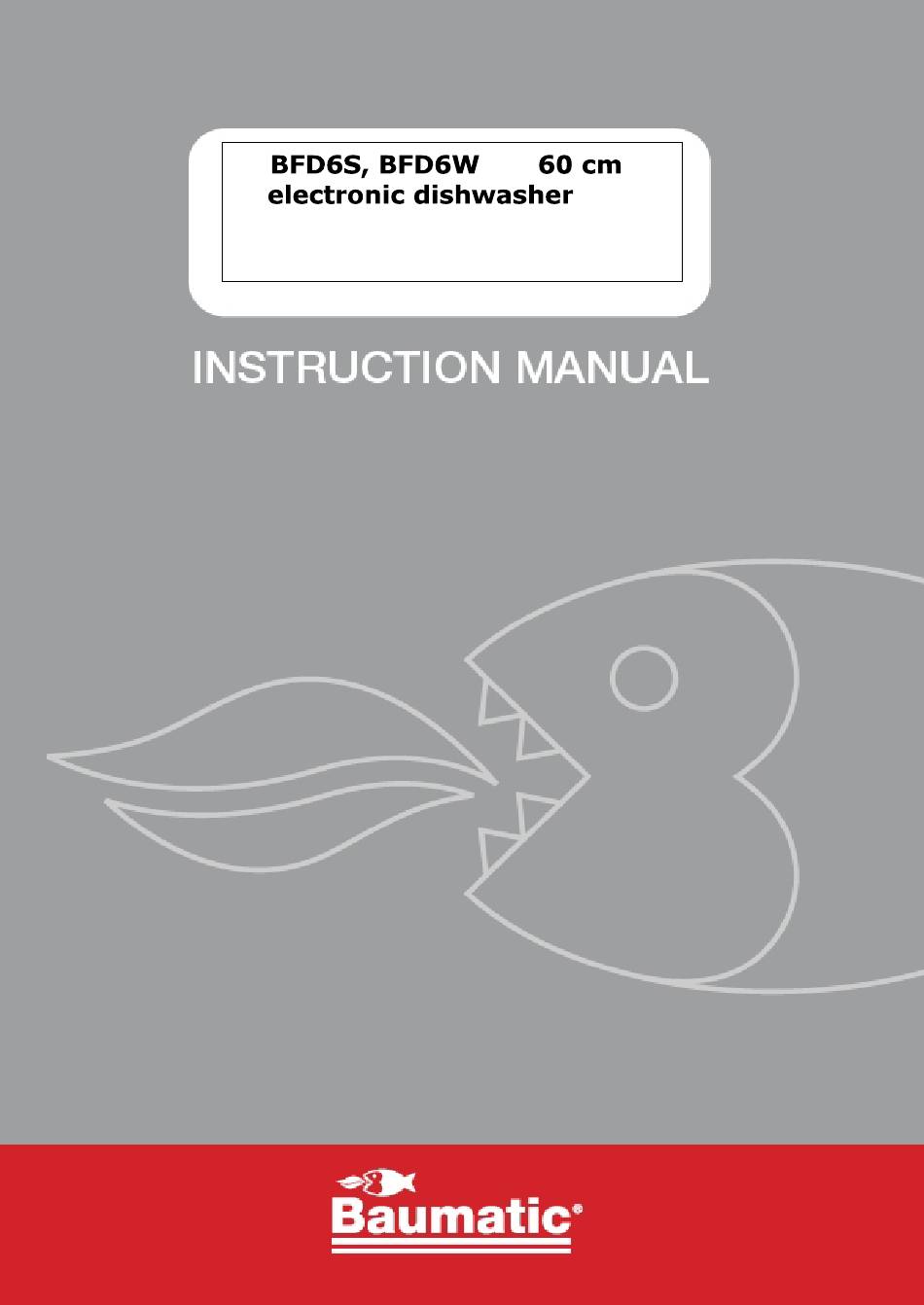

- Page 2 Instruction Manual Instruction Manual BFD6S, BFD6W 12 place settings 14 place settings...
- Page 3 Congratulations on purchasing your new product from Home Appliances. To register your parts and labour warranty (some conditions apply please refer to your warranty card for more details) please contact out Customer Care team on: 1800 444 357 Our Customer Care centre is there to ensure you get the most out of your appliance. If there is anything you require help with in the use of your dishwasher please contact us on the above 1800 number.
- Page 4 Quick operation guide Quick operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. Compartment A: With each wash cycle. Compartment B: Fill the detergent dispenser For programmes with pre-wash only.
-
Page 5: Read This Manual
Read this Manual Dear Customer, This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. - Page 7 1.IMPORTANT SAFETY INFORMATION 1.IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING READ ALL OF THE INSTRUCTIONS BEFORE USING WARNING! WARNING! When using your dishwasher, follow the precautions listed below: GROUNDING INSTRUCTIONS WARNING! This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock.
-
Page 8: Control Panel
2.Operation Instruction 2.Operation Instruction IMPORTANT IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel Control Panel 2 2 3 3 8 8 9 9 10 1011 consumption. This function can only be used with 1. -
Page 9: Rinse Aid Dispenser
Prior Prior using for the first time using for the first time Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent A. Fill the Rinse Aid Dispenser A. Fill the Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. - Page 10 Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser Adjust lever Adjust lever set on "4". If spots and poor drying are a problem, increase the amount of rinse (Rinse) (Rinse) aid dispensed by removing the dispenser lid and rotating the dial to "5".
-
Page 11: Amount Of Detergent To Use
Amount of Detergent to Use Push latch to open Push latch to open NOTE: NOTE: If the lid is closed: press release button. The lid will spring open. Always add the detergent just before starting each wash cycle. Only use branded detergent and rinse aid for dishwasher. WARNING! WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children. -
Page 12: Attention Before Or After Loading The Dishwasher Baskets
4.Loading the Dishwasher Baskets 4.Loading the Dishwasher Baskets Recommendation Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. - Page 13 The Method of Loading Normal Dishware The Method of Loading Normal Dishware Loading the Lower Basket Loading the Lower Basket Loading the Upper Basket Loading the Upper Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most difficult and lighter dishware such as glasses, coffee and to clean items into the lower basket: such as pots, pans, lids,...
-
Page 14: Starting A Washing Program
5.Starting a washing program 5.Starting a washing program Wash Cycle Table Wash Cycle Table Means: need to fill rinse into the Rinse-Aid Dispenser. NOTE: NOTE: Detergent Detergent Description Description Cycle Selection Cycle Selection Running Running Rinse Rinse Energy Energy Water Water Program Program... -
Page 15: Change The Program
NOTE: NOTE: When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will be beeping every minute unless you press the Start/Pause button to start. Change the Program Change the Program Premise: A cycle that is underway can only be modified if it has only been running for a short time. -
Page 16: Maintenance And Cleaning
6.Maintenance and Cleaning 6.Maintenance and Cleaning Filtering System Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). - Page 17 Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: NOTE: The entire filter assembly should be cleaned once a week.
-
Page 18: Installation Instruction
How to Keep Your Dishwasher in Shape When not in Use for a Long Time After Every Wash It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 19: Cold Water Connection
Improper connection of the equipment earthing conductor can result in the risk of an WARNING! WARNING! for personal safety: electric shock. DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE. Check with a qualified electrician or service representative if you are in doubt whether the DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING appliance is properly earthed. -
Page 20: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 21: Troubleshooting Tips
8.Troubleshooting Tips 8.Troubleshooting Tips Before Calling for Service Before Calling for Service Problem Possible CausesWhat To Do Dishwasher doesn't Fuse blown, or the home Replace fuse or reset circuit breaker. Remove any other circuit breaker has been appliances sharing the same circuit with the dishwasher start triggered. -
Page 22: Error Codes
Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 23: Technical Information
If overflow occurs, turn off the main water supply before calling service. If there is water in the base pan because of an overfill or small leak, WARNING! WARNING! the water should be removed before restarting the dishwasher. Technical Information Technical Information Height : 845mm... - Page 25 Home Appliances Pty Ltd 20 Carlotta Street Artarmon NSW 2064 Sales Telephone 02 9958 3111 Service Telephone 1800 444 357 Website www.baumatic.com.au...
- Page 29 www.baumatic.com.au...
