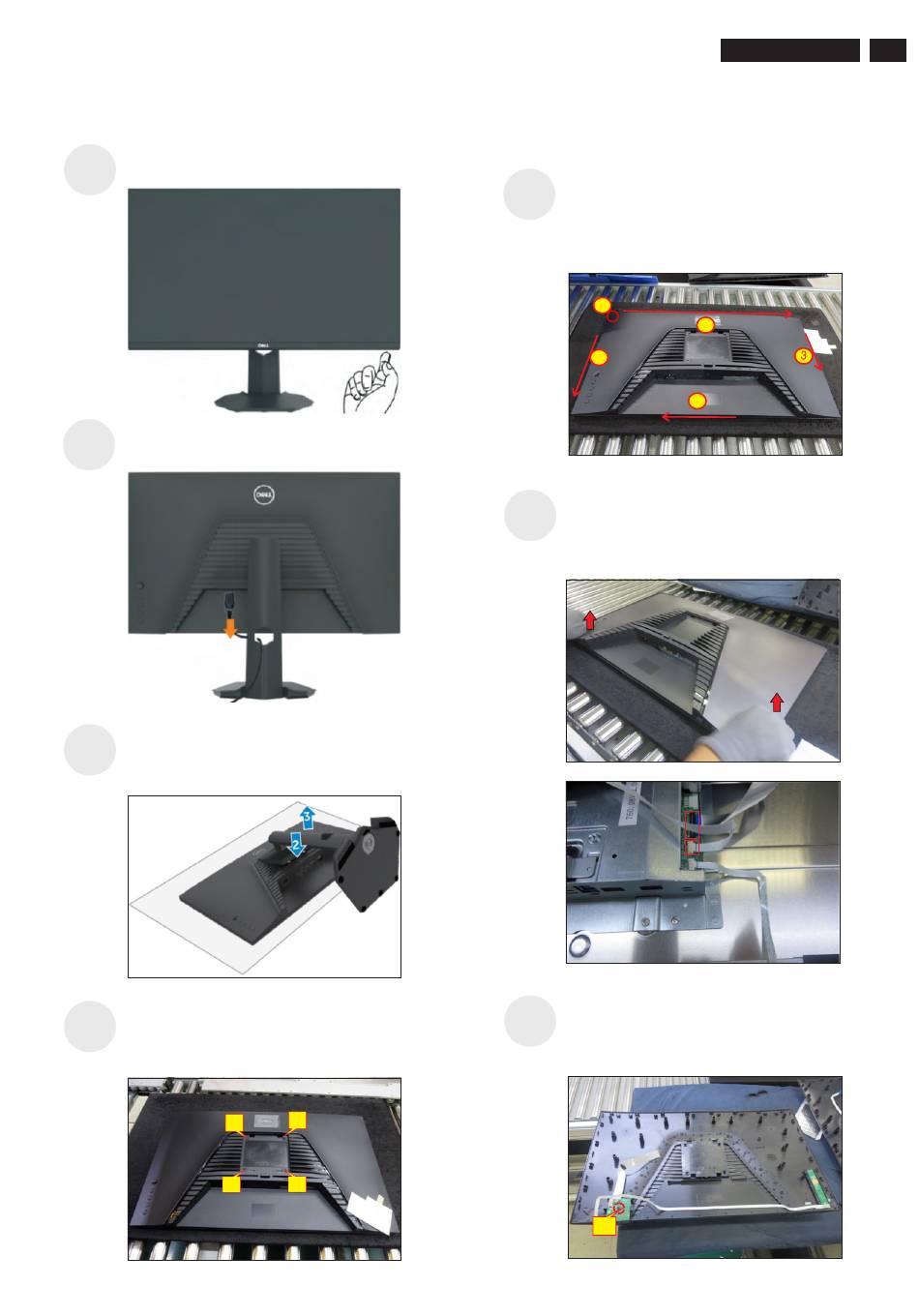

1. Disassembly Procedures:
S1
Turn off power..
Unplug external cables(power cable and video
S2
cable) from the monitor.
Remove stand from the product.(Press the stand
S3
release button, lift the stand up and away from the
monitor)
Use a Philips-head screwdriver to remove 4pcs
S4
screws for unlocking mechanisms. Remove DP caps.
(No.1~4 screw size=M4x11; Torque=11
1kgfxcm)
±
3
2
1
4
Tear off screen protector, then wedge your fingers
between rear cover and the middle bezel on the
corners of the top side of the monitor to release the
S5
rear cover, then use one hand to press the middle
bezel, the other hand to pull up the rear cover in order
of arrow preference for unlocking the rear cover.
1
3
Lift the rear cover up carefully. Disconnect the
function key cable and USB cable from the
S6
connector of the interface board, and then remove
the rear cover and put it aside.
Use a Philips-head screwdriver to remove 1pcs
screw for unlocking the USB board unit, then release
S7
the USB board unit from the rear cover.
(No.1 screw size=M3x6, Torque=
1
DELL G2723H
2
4
4±0.5kgfxcm
)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dell G2723H
Summary of Contents for Dell G2723H
- Page 1 DELL G2723H 1. Disassembly Procedures: Tear off screen protector, then wedge your fingers between rear cover and the middle bezel on the Turn off power.. corners of the top side of the monitor to release the rear cover, then use one hand to press the middle bezel, the other hand to pull up the rear cover in order of arrow preference for unlocking the rear cover.
- Page 2 DELL G2723H Use a Philips-head screwdriver to remove 3pcs Disconnect the power key cable from the connector of the interface board, then release the key by screws for unlocking the function key board with the tearing off the tape on the back of the cable.
- Page 3 DELL G2723H Turn over the bracket chassis module. Remove the Mylar from the hooks of the bracket Tear off the shading tape, then disconnect the eDP cable from the connector of the panel module, then lift up the panel module and pull out the front bezel...
- Page 4 DELL G2723H S19-4 Take out bulk cap. pin solder with soldering iron and Remove electrolyte capacitors (red mark) from absorber. printed circuit boards. S19-1 Cut the glue between bulk cap. and PCB with a knife. S19-5 Lift the bulk cap. up and away from the PCB.
- Page 5 DELL G2723H 2. Product material information The following substances, preparations, or components should be disposed of or recovered separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC. Capacitors / condensers (containing No used PCB/PCT) Mercury containing components...
