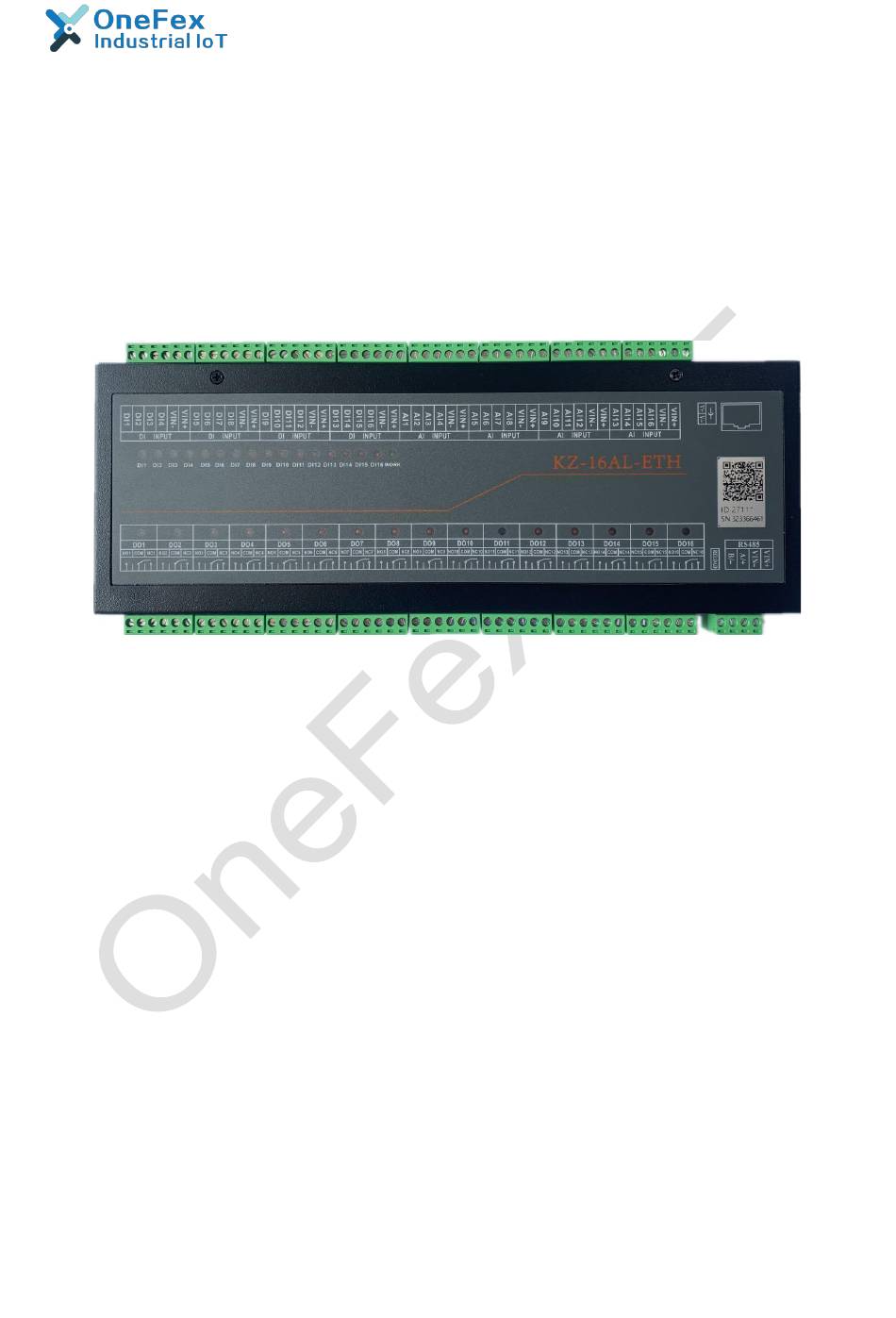

- Page 1 KZ-16AL User Manual KZ-16AL Modbus TCPI/O Module User Manual Ver4.0...
-
Page 2: Table Of Contents
KZ-16AL User Manual Product features ...........................3 1. Function Introduction.......................4 1.1 Overview ..........................4 1.2 Product Specifications ......................4 2. Hardware Wiring ........................4 2.1 Power Supply Wiring ......................4 2.2 Analog Input Wiring ......................5 2.3 Digital Input Wiring ......................6 2.4 Digital Output Wiring .......................8 2.5 Terminal Definition ...................... -
Page 3: Product Features
KZ-16AL User Manual Product features Support 16 relay outputs;； Support 16-way input, compatible with wet and dry nodes;； Support 16 channels of 4-20ma analog acquisition； The RS485 serial port is reserved for slave mode, which can be connected to other Modbus RTU master devices；... -
Page 4: Function Introduction
1. Function Introduction 1.1 Overview KZ-16AL is 16*DO&16*AI&16*DI. KZ-16AL can be widely used in farms, agricultural greenhouses, IoT terminals, water conservancy, electricity, gas collection and control and other application scenarios, its unique logic control function can easily realize automatic water supply, fertilization, start and stop valves It is an ideal device for small automatic control scenes. -
Page 5: Analog Input Wiring
KZ-16AL User Manual After the power connected normally, WORK light of the module flashes green; network port light is always on in green and flashes in orange. 2.2 Analog Input Wiring Two-wire analog sensor wiring: The positive power of the sensor → VIN+ of the module;... -
Page 6: Digital Input Wiring
2.3 Digital Input Wiring KZ-16AL has 16 channels (dry node access) for digital switch value acquisition. The signal form is passive switch input. If two-wire digital sensor, the negative of sensor needs to be connected to VIN- of the module, and the signal line is connected to the DI acquisition port;... - Page 7 KZ-16AL User Manual negative to VIN- of the module, and the signal wire to the DI acquisition port of module. Simple test: short-circuit DI1 and VIN- to achieve the first channel switch signal acquisition. It is generally used to monitor the auxiliary contact signal of the AC contactor as a status feedback.
-
Page 8: Digital Output Wiring
KZ-16AL User Manual 2.4 Digital Output Wiring KZ-16AL controller has 16 relay output interfaces. Each relay has 3 terminals, NOX is normally open port, COMX is common port, NCX is normally close port. Maximum operating current: 7A Maximum switching current: 10A... - Page 9 KZ-16AL User Manual The following picture shows the AC contactor with 220V coil controlled by the first channel and with 220V load: The following picture shows the AC contactor with the first channel to control the 380V coil with 380V load:...
- Page 10 KZ-16AL User Manual The following figure shows an AC contactor with a 220V coil controlled by the first channel and with a 380V load: The following figure shows the use of the first and second channels to control the...
- Page 11 KZ-16AL User Manual forward and reverse rotation of the two-wire motor. When the first channel is opened, it is forward rotation, and the second channel is opened for reverse rotation. The motor does not rotate when turned on or off at the same time.
-
Page 12: Terminal Definition
KZ-16AL User Manual holding line), The first normally open point and the common point are connected to the start button in parallel, and the second normally closed point and the common point are connected to the stop button in series: 2.5 Terminal Definition... - Page 13 KZ-16AL User Manual Digital Input2 Digital Input3 Digital Input4 Digital Input5 Digital Input6 Digital Input7 Digital Input8 DI INPUT Digital Input9 DI10 Digital Input10 DI11 Digital Input11 DI12 Digital Input12 DI13 Digital Input13 DI14 Digital Input14 DI15 Digital Input15 DI16...
-
Page 14: Testing Preparation
RA485A RA485B 3. Testing Preparation This test needs to a KZ-16AL, a DC12V/1A power supply, and a router (with Internet access). The hardware diagram is as follows: Note: The device is static IP (192.168.1.30)by default. A router (with Internet access) is recommended to test the connection. -
Page 15: Config Tool (Devicekey) Guide
KZ-16AL User Manual Note： ① If you still cannot search it, try to turn off the firewall and anti-virus software, keep the computer's single network card, and try again. ②If the above operation does not work, you can directly connect to the computer, change the computer network port IP to 192.168.10.1, and try again;... - Page 16 KZ-16AL User Manual...
- Page 17 KZ-16AL User Manual After the addition is complete, go back to the home page, you can control the switch and read the data of the module. Among them, AI1 is the collected value of analog quantity 1, and AI2 is the collected value of analog quantity 2;...
-
Page 18: Model Importing
KZ-16AL User Manual 4.3 Model Importing File-Model-Import, and chose file. -
Page 19: Revise Device Info
KZ-16AL User Manual 4.4 Revise Device Info... -
Page 20: Build &Revise Group
KZ-16AL User Manual 4.5 Build &Revise Group... -
Page 21: Add/Delete Models
KZ-16AL User Manual 4.6 Add/Delete Models The parameters of different device models are different, please modify them carefully. The model template provided by the manufacturer can be directly imported and used. -
Page 22: Built-In Webpage Configuration
KZ-16AL User Manual 5 Built-in Webpage Configuration 5.1 Login Open http://192.168.3.220 in the browser, enter the user name (admin) and password (admin) in the pop-up login dialog box, and click Login to open built-in webpage of the device. Note: 192.168.3.220 is not the fixed IP of the module. - Page 23 KZ-16AL User Manual...
-
Page 24: Protocol Convert
KZ-16AL User Manual 5.3 Protocol Convert The module's TCP protocol defaults to Modbus TCP, but it can also support Modbus RTU over TCP, just select "Modbus Gateway" to OFF. That is, when ON is selected, it is Modbus TCP protocol, and when OFF is selected, it is Modbus RTU over TCP... -
Page 25: Network Parameter Setting
KZ-16AL User Manual Note: If users need to communicate with their own server, they can modify the parameters here as needed. If you still use the software in the LAN provided by our company, you don’t need to modify it. -
Page 26: Unmodifiable Items
KZ-16AL User Manual 5.5 Unmodifiable Items The relevant parameters in the port 1 interface (PORT1), the following parameters of the serial port part (UART) cannot be modified. -
Page 27: Product Maintenance
7 After-sale Service 7.1 Commitment OneFex provides after-sales service of the device within 2 yeasr from the date of sale. But for damage caused by improper use, you need to send it back and take the freight for repair or adjust. Make sure that the package is in good condition to avoid... -
Page 28: Disclaimer
7.2 Disclaimer This document does not grant any intellectual property license, express or implied, or by hijacking or otherwise. OneFex assumes no responsibility other than those specified in the terms and conditions of sale of the product. And makes no warranties,...
