Summary of Contents for Arkel ARCODE

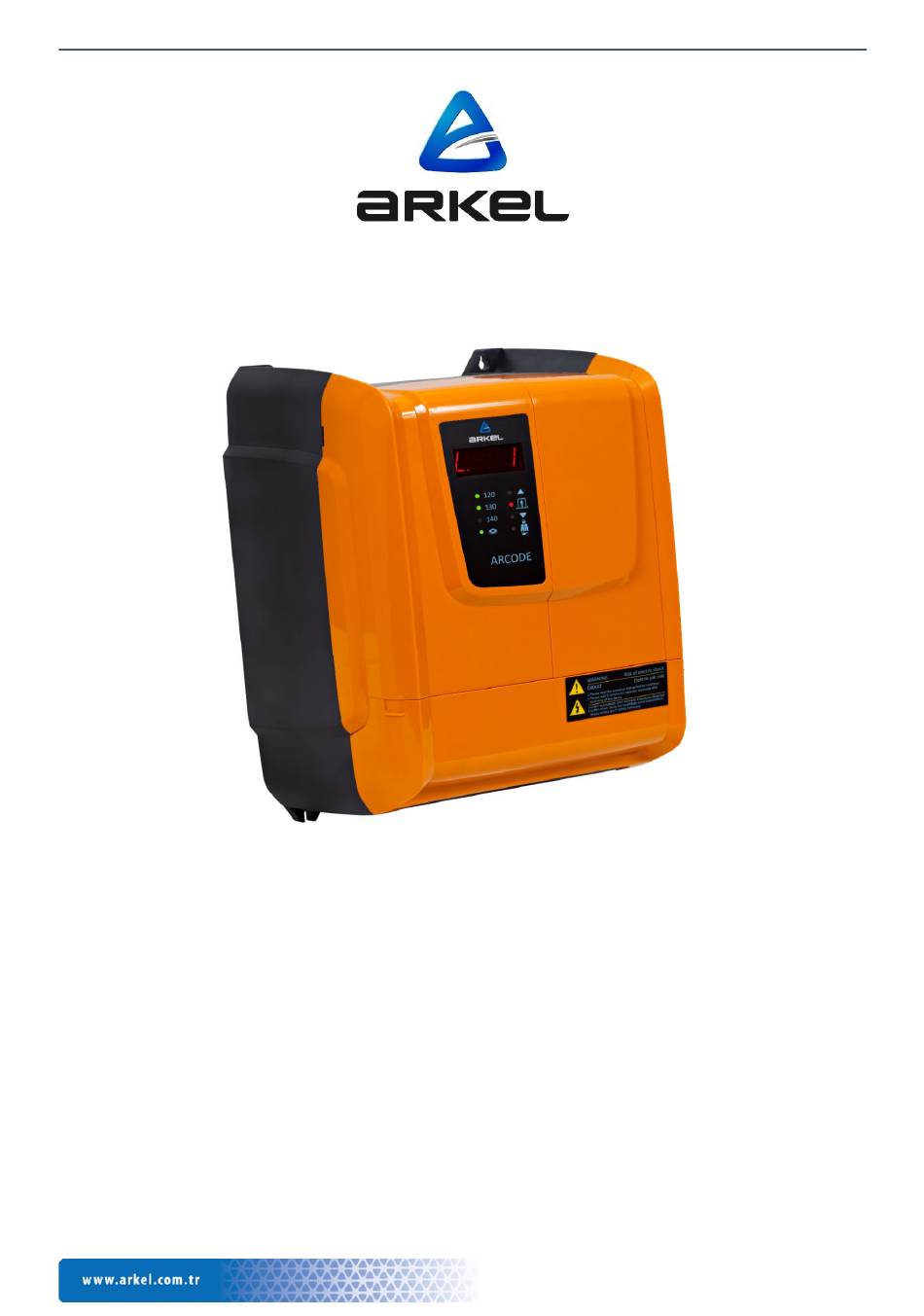

- Page 1 Arcode Quick Installation Guide V2.12 ARCODE INTEGRATED ELEVATOR CONTROLLER FOR TRACTION LIFTS QUICK INSTALLATION GUIDE...
- Page 2 This document has been created to be a guide for Arkel customers. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Arkel is prohibited. Arkel reserves the right to make changes and improvements to any of the products described in this document without prior notice.
-
Page 3: Table Of Contents
SETTINGS OF MSP-16 BOARD ..........................17 11.6. SETTINGS OF MSP-32 BOARD ..........................18 12. MEANING OF 7-SEGMENT MESSAGES ON ARCODE ................... 19 13. CLEARING OF PERMANENT ERRORS ........................19 14. NEW FUNCTIONS WHICH ARE COMING WITH EN81-20 ..................20 By-Pass key ..................................20 Inspection hand terminals .............................. -
Page 4: Mechanical Installation
Arcode Quick Installation Guide V2.12 MECHANICAL INSTALLATION Mount Arcode control cabinet, brake resistor, battery pack and UPS (if required) to their places. 16cm 12cm 34cm Figure-1: Dimensions of battery pack (it is required only when the inverter is supplied with battery during emergency evacuation) (it... -
Page 5: Motor Connections
Arcode Quick Installation Guide V2.12 MOTOR CONNECTIONS Make the connections of motor phases & motor PTC, brakes & brake release contacts, motor fan, encoder, brake resistor and battery pack with UPS (if required). 1 : Motor phases & motor PTC connections... -
Page 6: Preparations For Auto-Tune
PREPARATIONS FOR AUTO-TUNE Auto-tune process must be performed by Arcode before initial set-up of an elevator. In this way Arcode learns characteristic of motor. During the Auto-tune the elevator must be operated manually, therefore the recall command has to be provided. For recall operation make the following connections •... - Page 7 • AREM will run automatically when it is connected CANBus line. It can be connected to KXCBA board or any CANBus access point. For first installation Arcode software must be updated by AREM. (See Software Update). Figure-8c: KXCBA CANBus terminal...
- Page 8 Arcode Quick Installation Guide V2.12 Activate the manual operation mode by turning the recall switch on the recall hand terminal to “REV” position. In this • case the motor can be moved by recall buttons from the control panel. Recall activation switch...
-
Page 9: Auto-Tune
Arcode Quick Installation Guide V2.12 “Maximum travel speed”, “inspection mode-speed” • and “recall speed” which is located in “Travel curve settings” should be set according to motor speed. The nominal speed which is written on motor plate must • be used for parameter “Maximum travel speed”. -
Page 10: Preparations For Normal Operation
Turn the recall switch which is in the control panel to inspection posstion. Press up or down button until see “Auto- tune was completed” If you release button before auto-tune is completed you must run again. Pay attention: Arcode does not start auto-tune if you turn hand terminal which is located on car roof to inspection •... -
Page 11: Shaft Learning & Test Drive
SHAFT LEARNING & TEST DRIVE Arcode integrated elevator system needs to do a special shaft-learning run before going into normal operation. This must be done only once. Before performing a shaft-learning run, please check your magnets and magnetic switches that are needed for encoder... - Page 12 Arcode Quick Installation Guide V2.12 Select icon of “Shaft learning” in the menu and press Enter • button. You can run shaft learning procedure pressing by “F2” button. • To run shaft learning procedure lift must not be in inspection or recall mode and safety circuit must be closed.
-
Page 13: Landing & Car Call Settings
(Note that CPC and CPC-T dipswitch settings are different from each other.) Landing Calls: Arcode can accept landing calls both serial connection (CANBus) and parallel connection. If landing calls are wanted • to use as paralel, the SP-16 board must be used. (see section 11 for more information) •... -
Page 14: Lop Learning
All changes are saved in memory of LCD. Deceleration Distance Figure-19b: LCD type selection Arcode does not need any additional settings to determine deceleration distance because of its direct approach feature. To make comfort settings, “Travel curve settings” must be •... -
Page 15: Software Update
SOFTWARE UPDATE When AREM is first connected to the CANBus line, if AREM’s SD card does not have the software which exsist on Arcode, AREM will inform that an update is needed. Start the update pressing the button F1. The system will be restarted when the update is complete. -
Page 16: Car Panel Controller Boards
SETTINGS OF CPC BOARD Arcode can operate two-doors elevator upto 64 stops, lt collects car calls with the help of a CPC card. Each CPC card can serve up to 24 stops. If there are more than 24 floors or on condition that it has two doors, two CPC cards must be used. For an elevator with 64 stops and two doors, a sum of 6 CPC cards must be used. -
Page 17: Settings Of Io-0210 Board
Arcode Quick Installation Guide V2.12 11.4. SETTINGS OF IO-0210 BOARD In some cases, programmable inputs and outputs may not be enough. Then, this IO-0210 board would be useful. This board gives 2 inputs and 10 transistor outputs to the user. -
Page 18: Settings Of Msp-32 Board
Arcode Quick Installation Guide V2.12 11.6. SETTINGS OF MSP-32 BOARD MSP-16 can serves up to 9 floors for full collective. If the system full collective and more than 9 stops MSP-32 board is used. Dipswitch settings must be set according to Table-7. Check electrical diagram for more information. -
Page 19: Meaning Of 7-Segment Messages On Arcode
Arcode Quick Installation Guide V2.12 MEANING OF 7-SEGMENT MESSAGES ON ARCODE INIT: Elevator goes bottom floor for reset (Initialising) UpEn: Enca board is being updated (Updating Enca) O-in: Only inspection notu: Needed autotuning (No Tuning) noSh: Needed Shaft learning (No Shaft Learning) -
Page 20: New Functions Which Are Coming With En81-20
(before update) is cleared. 04- No connection with ENCA board: If Arcode can not communicate with ENCA board more than 1 second, it gives this error. - Page 21 • Check the PTCs of motor, control panel and brake resistor. Check T1 and T2 terminals on Arcode. T1 and T2 should be short circuit in normal operation. When the temperature • increases, the short circuit will be cutted off and it will turn to open circuit.
- Page 22 22- 3-Phase sequence is wrong: Phase L3 or L1 must be replaced with Phase L2. 23- 24V supply voltage too low: Measure Arcode 24v inputs. This error is taken if the value measured is below 20 VDC. •...
- Page 23 When using Limax33RED + Safebox or Limax33CP, after “Error 36” appears, the “Limax Status” screen in the “Info” menu should be checked. The communication status between Arcode-Arlim-Limax can be seen in the “Limax Status” screen. (Arlim board provides the communication between Arcode and Limax) If “Fault”...
- Page 24 47- Brake resistor overheated: The temperature of brake resistor is estimated depending on the change of voltage in the brake resistor. If the calculated value exceeds a certain value, this error occurs. Check that brake resistor is chosen suitable for Arcode. •...
- Page 25 If it is Midline, the dongle which is proper to Midline should be used. If it is Highline, the dongle which is proper to Highline should be used. 72- Limited feature: If "P0839 Arcode class" is chosen Arcode Basic and if one of the following cases exists, it gives this error. •...
- Page 26 • Check counterweight • Make sure you are using a suitable Arcode Power Class device for your application Check possible mechanical jammings in the shaft • 80- Current was near motor limit continuously: If motor current exceeds over the value which is the multiplication of “P0159”...
- Page 27 In order to enable “P1006” parameter, firstly “P1005” maintenance time control parameter should be set as “On”. 94- Car light fuse is blown: If 3-phases are OK in Arcode, but there is no voltage value(220V) on IBC-S, it gives this error.
- Page 28 If there is a possibility that the contactors may be defective, connect the motor cables directly to the “U, V, W” output terminals on Arcode (the panel is bypassed) to test the systems working. If in this case no error occurs, check the contactors and the connections.
