Summary of Contents for LOWE'S F245375

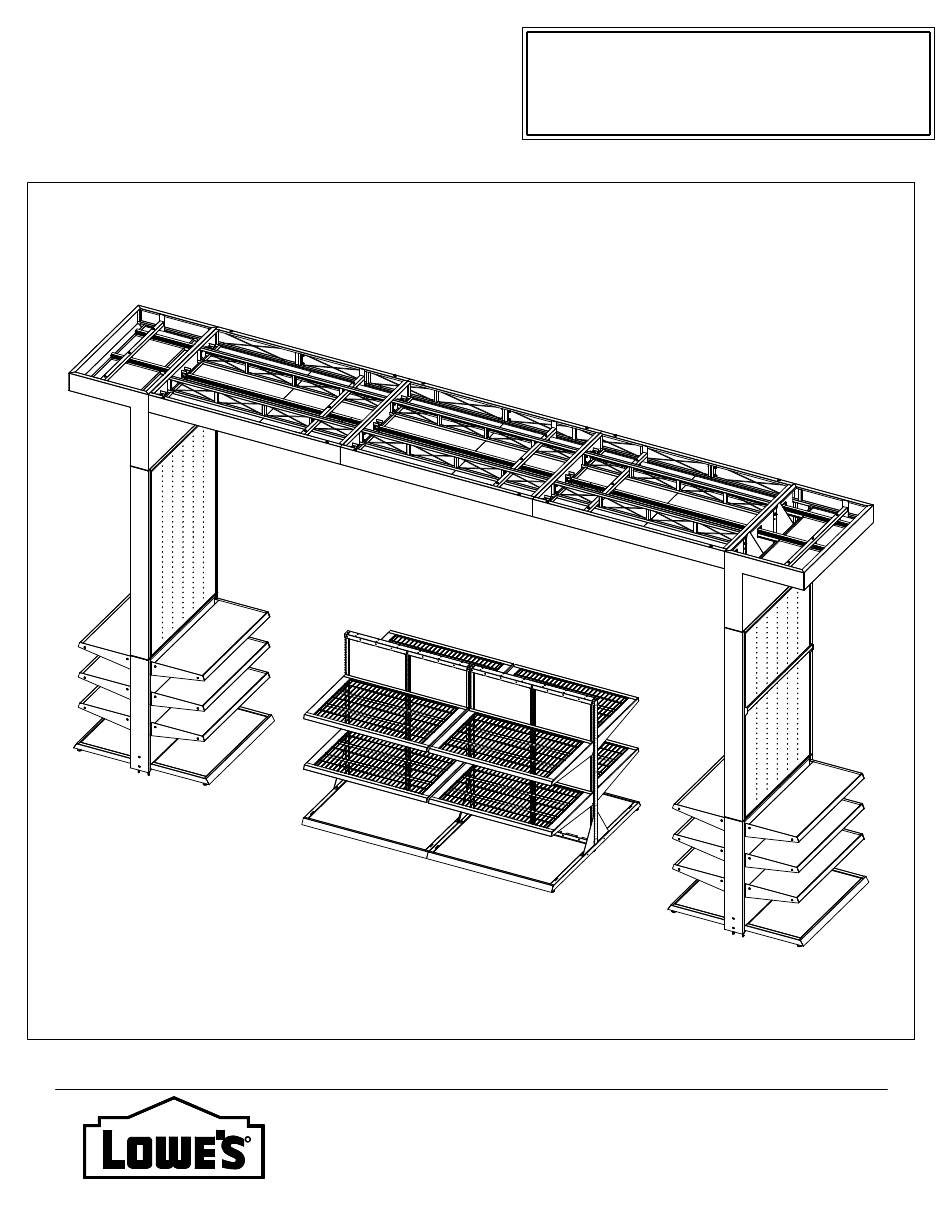

- Page 1 L0642622 LOWE'S ITEM #: F245375 LIGHTING ARCH - VER 7 - DEPARTMENT: LIGHTING INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA INSTALLATION AND ASSEMBLY INSTRUCTIONS Page 1 of 13 A30405-IS-022 Rev.: 5/7/2015...
- Page 2 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA FOR QUESTIONS REGARDING ASSEMBLY OR INSTALLATION, PLEASE CONTACT: AMERICAN DISPLAY & FIXTURE CUSTOMER SERVICE MONDAY-FRIDAY 8:00 am TO 5:00 pm E.S.T. (423)-629-3831 customerservice.adf@mktalliance.com Page 2 of 13 A30405-IS-022 Rev.: 5/7/2015...
- Page 3 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA PART NUMBER DESCRIPTION A30405-87-001 Lower Side Weldment EQ A30405-88-010 UPPER SIDE/VERSA PANEL ASSEMBLY A30405-88-008 ROOF STRUCTURE ASSEMBLY - LF A30405-88-009 ROOF STRUCTURE ASSEMBLY - RT A30405-88-002 ROOF STRUCTURE ASSEMBLY - MID A30405-87-016 Roof Connector Truss Weldment A30405-88-004...
- Page 4 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA HARDWARE BAG SHIPPED WITH LIGHTING ARCH PART NUMBER DESCRIPTION 20021361 #8 x 1/2 HH W/WASHER TEK SCREW, ZN 20030012 3/8-16 SERRATED FLANGE HEX NUT ZN 20030013 1/4-20 SERRATED FLANGE HEX NUT ZN 20030117 1/2-13 HEX NUT, ZN 20050032...
- Page 5 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 1 Layout a set of Chalk Lines per the dimensions shown below. Set (2) Lower Side Weldments to the insides of the Chalk Lines. Drill (6 per Side) 1/2" dia. x 4-1/2" deep holes into floor for anchor bolts using the holes in the Base Plate of the Lower Side Weldments as a guide.
- Page 6 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 2 To build the roof structure, lay each Roof Assembly on its side as shown below. NOTE: the Powered Tracks have Power Directional Stickers, be sure all tracks are in the same direction.
- Page 7 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 3 Lay the Mid Roof Assembly on its side as shown below. NOTE: the Powered Tracks have Power Directional Stickers, be sure all tracks are in the same direction. Slide the Trusses of the Left and Right Roof Assemblies into both ends of Middle Roof Assembly.
- Page 8 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 4 Lay the Upper Side Assemblies on their side as shown below with the Versa Panels facing toward the middle of the Arch. Feed the Versa Panel power cord thru the opening in the Roof Assembly Base Plate. Connect using (6) 1/2-13 x 1-1/2"...
- Page 9 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 5 Check to make sure all Roof hardware is properly tightened. Carefully lift the Roof Assembly up so it is sitting vertically. Using a fork lift, raise the Roof Assembly up over the (2) Lower Side Weldments, align the openings in the bottom of the Roof Assembly with the Channels and lower down onto the Lower Sides.
- Page 10 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 6 Secure each side of the Roof Assembly to the Lower Sides using (6) 1/2-13 x 1-1/2" Bolts, (6) 1/2-13 Nuts, (4) 3/8-16 x 1" Bolts and (4) 3/8" x 1" Washers. Check to make sure all Wall Hardware and Connection Hardware it tight!!! Page 10 of 13 A30405-IS-022...
- Page 11 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 7 On each side, feed the Versa Panel power cord thru the opening in the top of the wall and hang the Versa Panel Outer Assembly on the crossbeams of the Side Panel Assembly and center side to side.
- Page 12 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 8 Install the Diffuser Panels in the Roof Assembly. Step 9 Lift and drop the Lower Side Panels into the Lower Side Weldment. Hang the Bases and Shelves in the Lower Side Weldment per the POG. Page 12 of 13 A30405-IS-022 Rev.: 5/7/2015...
- Page 13 LIGHTING ARCH - VER 7 - INTERIOR DÉCOR W/ NO OUTSIDE GONDOLA Step 10 Remove the Powered Track Cover and cut where needed leaving approximately 1-9/16" opening for the wires and Top Cap. Re-install the Covers and install (1) Single Feed Top Cap over the opening using (2) Screws included in the Cap Kit.
