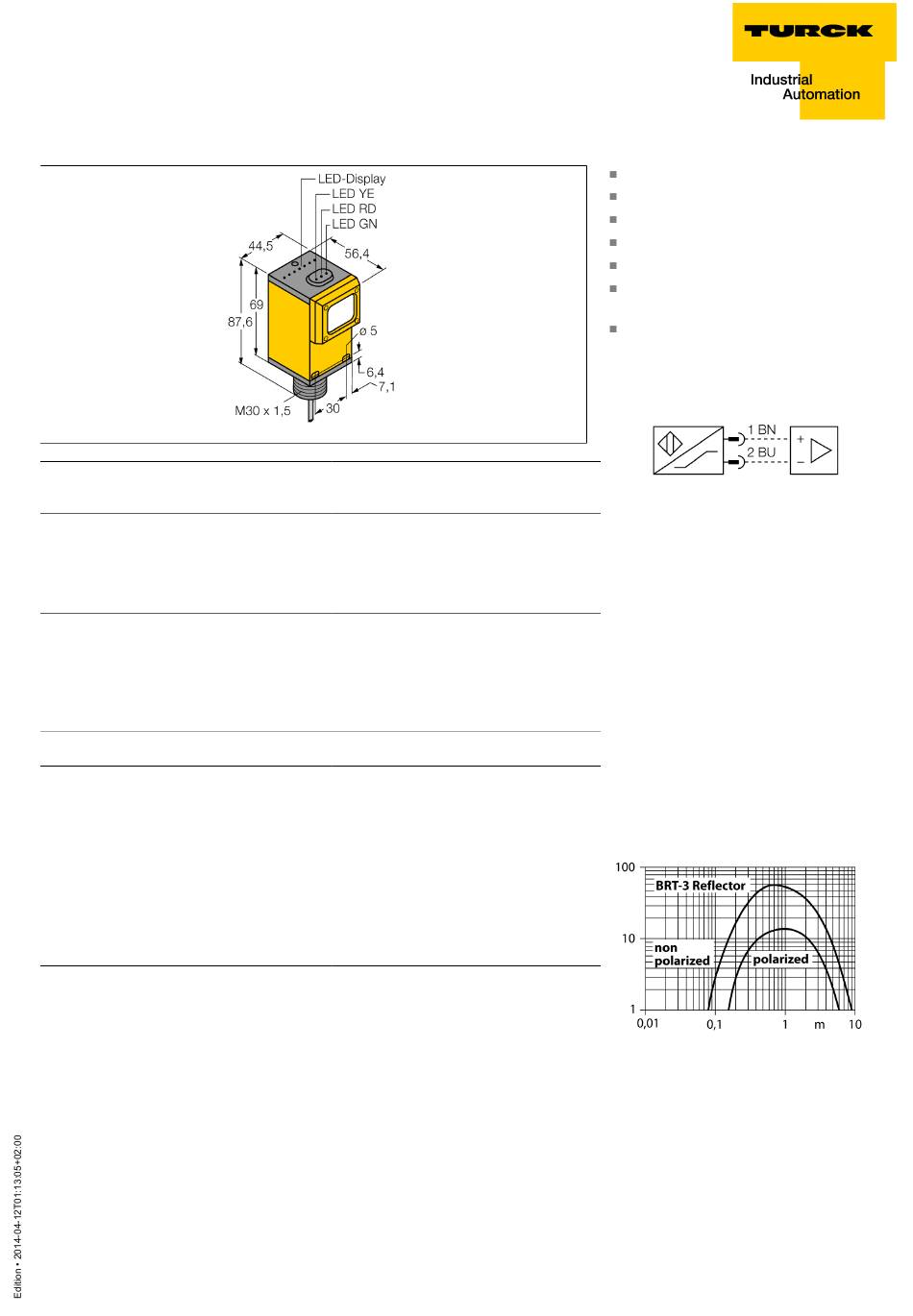

turck Q45AD9LV Operating Manual

Photoelectric sensor
retroreflective sensor
Q45AD9LV
Type code
Ident no.
Operating mode
Light type
Wavelength
Range
Ambient temperature
Voltage
Non-actuated current consumption
Actuated current consumption
No-load current I
0
Output function
Switching frequency
Device designation
Design
Dimensions
Housing material
Lens
Connection
Cable length
Cable cross section
Protection class
MTTF
Protection type
Ex approval acc. to conformity certificate
Switching state
1 / 3 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
Q45AD9LV
3037620
retro-reflective sensor
red
680 nm
80...9000 mm
-40...+70 °C
Nom. 8.2 VDC
ð 1 mA
ï 2.1 mA
ð 2.1 mA
light operation, NAMUR
ð 100 Hz
Ex II 1 G Ex ia IIC T5
rectangular, Q45
54.1 x 44.5 x 87.6 mm
plastic, PBT
plastic, acrylic
cable, PVC
2 m
2 x 0.5 mm
2
IP67
67 years acc. to SN 29500 (Ed. 99) 40 °C
Ex ia IIC T6
KEMA 03ATEX 1441 X
LED red
ATEX category II 1 G, Ex zone 0
Cable, PVC, 2 m
Protection class IP67
Sensitivity adjusted via potentiometer
Operating voltage: 5...15 VDC
NAMUR output: dark <= 1.2 mA ; light
>= 2.1 mA
Acc. to EN 60947-5-6 (NAMUR)
Wiring diagram
Functional principle
Retro-reflective sensors incorporate emitter
and receiver in a single compact housing. The
light beam of the emitter is directed towards
a reflector which returns the light back to the
receiver. An object is detected when it inter-
rupts this beam. Retro-reflective sensors in-
corporate some of the advantages of opposed
mode sensors (good contrast and high excess
gain). Further it is merely required to install
and wire a single device. A smaller sensing
range and susceptibility of devices without po-
larisation filter can be of disadvantage when
shiny objects have to be detected.
Excess gain curve
Excess gain in relation to the distance
