ASSEMBLY INSTRUCTIONS FOR WC-185 & WC-185AS
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify Kwik Goal immediately. Lay out all parts. Remove all cardboard and packaging immediately. Wet or
damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
NOTE: Components may be packaged in one or more additional boxes.
Parts
This equipment has been designed to be used for training only. Training equipment must be anchored AT ALL TIMES
and shall be secured against overturning. Unsecured equipment or collision with equipment can result in serious injury
or death. Train at a minimum distance of 5 yards from equipment. Do not climb on the net or frame at any time! All
fastenings must be checked to ensure they are fully secured before and after each use of this product. Training
equipment not in use must be disassembled and properly stored in a safe, secure area. Assembled training equipment
should not be left unattended. Do not use this equipment during the threat of high winds. Training equipment should
be checked for safety before and after each use. All warning and safety labels included with this product must be
Any modifications to this or any Kwik Goal product will void any and all warranties.

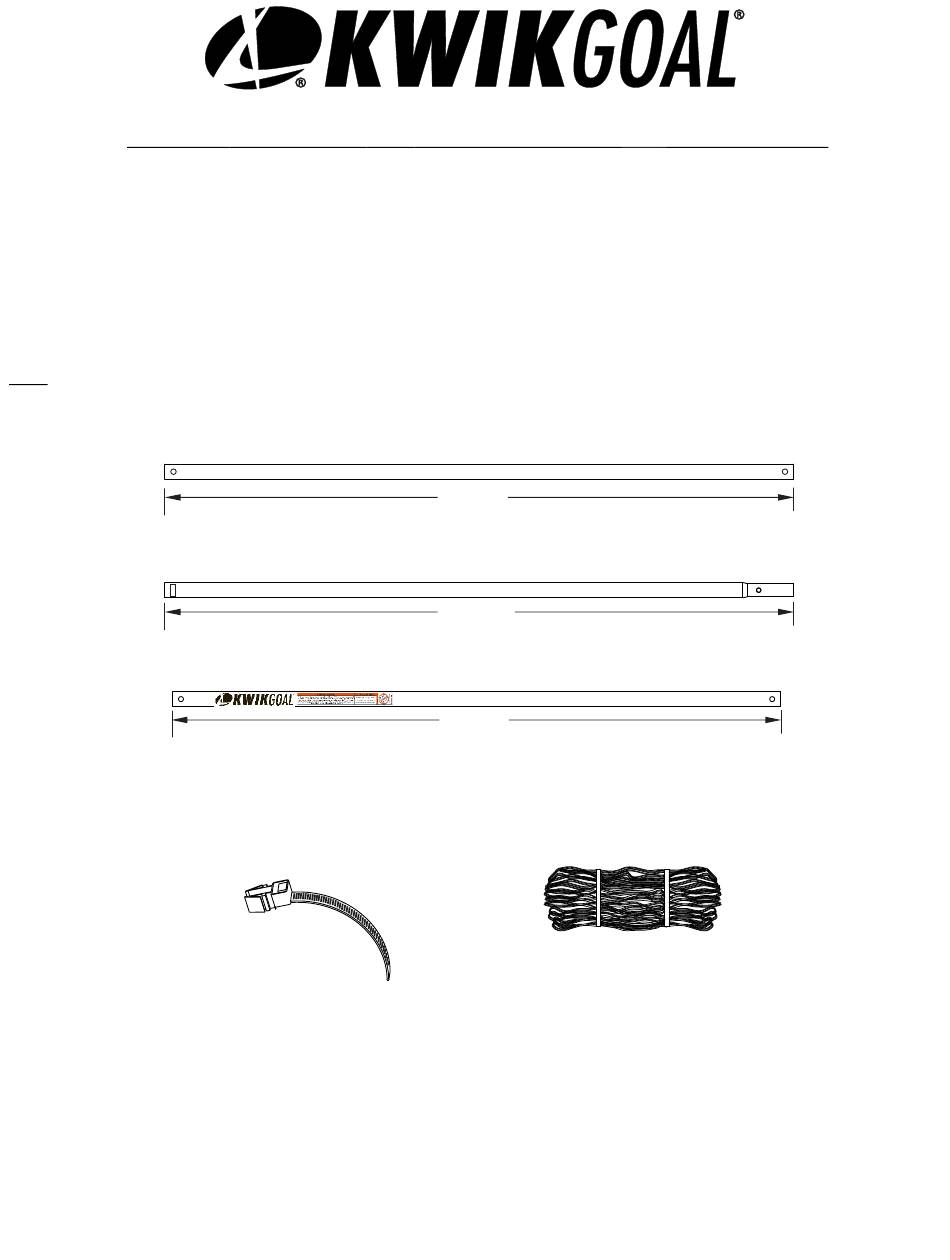

Crossbar w/ Swage (2)
Plastic Cable Tie (4)
(Part# JZ225 Pack of 4)
***CAUTION***
visible at all times.
140 Pacific Drive Quakertown, PA 18951
800-531-4252 Kwikgoal.com
©
2019, Rev 2024 Kwik Goal Ltd.
Crossbar (1)
(Part# WZ1004)
75-3/8"
(Part# UZ1545)
75-3/8"
Post (2)
(Part# UZ1558)
71-9/16"
(Part# WC-24GAW)
NXT
TRAINING FRAME
Net (1)
NZ410 Rev. 05/07/24
Advertisement
Related Manuals for KwikGoal NXT TRAINING FRAME WC-185
Summary of Contents for KwikGoal NXT TRAINING FRAME WC-185
- Page 1 All warning and safety labels included with this product must be visible at all times. Any modifications to this or any Kwik Goal product will void any and all warranties. 140 Pacific Drive Quakertown, PA 18951 800-531-4252 Kwikgoal.com © 2019, Rev 2024 Kwik Goal Ltd. NZ410 Rev. 05/07/24...
- Page 2 If this is not practical, store training equipment in a place where children cannot have access to it. 10. Fully disassemble equipment for seasonal storage. 140 Pacific Drive Quakertown, PA 18951 800-531-4252 Kwikgoal.com © 2024 Kwik Goal Ltd. NZ410 Rev. 05/07/24...
- Page 3 Parts cont. Pilot Hole Peg (1) Carry Bag (1) (Part# UZ847) (Part# 5B406) Crossbar Corner (2) (Part# UZ1554) 92° Mark WC-185 WC-185AS Ground Shoes (2) All Surface Shoes (2) (Part# PT156 set of 2) (Part# WC-ASK set of 2) ***CAUTION*** This equipment has been designed to be used for training only.
- Page 4 3. Lay out crossbars and posts, take note of the direction of stickers on posts. Weave net on to one crossbar using top corner tags as a guide. Connect all crossbars and 92° crossbar corners. Top Side Bar Push 92° Crossbar Corner Post 92°...
- Page 5 4. Spread net along assembled crossbars. To secure net to the corners, insert plastic cable ties into each 92° crossbar corner. Cable Tie Crossbar Corner Top Corner Tag 5. Secure corners of net with cable ties, using top corner tags as a guide. Cable Tie ***CAUTION*** This equipment has been designed to be used for training only.
- Page 6 6. WC-185AS - skip to step 10 for WC-185 continue to step 7. WC-185 WC-185AS Ground Shoes (2) All Surface Shoes (2) (Part# PT156 set of 2) (Part# WC-ASK set of 2) 7. Connect ground shoes to post and remove spike cap from ground shoe.
- Page 7 8. Training frame is designed for one person set up, so lift one post at a time and stand goal up. Post Lift Post Push one ground shoe into field surface with foot as shown in step 3. If soil conditions are hard, mark ground shoe location and use pilot hole peg and follow steps 9.1 through 9.3.
- Page 8 10. If using spiked ground shoes, skip to step 11. Training frame is designed for one person set up, lay all surface shoes at each post at desired location. Lift one post at a time and connect all surface shoe to post, repeat for opposite post.
- Page 9 11. After one ground shoe is in place move opposite shoe in or out to get posts plumb and crossbar level. Crossbar Down - Bow Up - Arch Post Post Cause Bow Cause Arch Cause Arch Cause Bow in Crossbar in Crossbar in Crossbar in Crossbar...
- Page 10 Tie ropes tight Go to kwikgoal.com for additional product information. ***CAUTION*** This equipment has been designed to be used for training only. Training equipment must be anchored AT ALL TIMES and shall be secured against overturning. Unsecured equipment or collision with equipment can result in serious injury or death.
