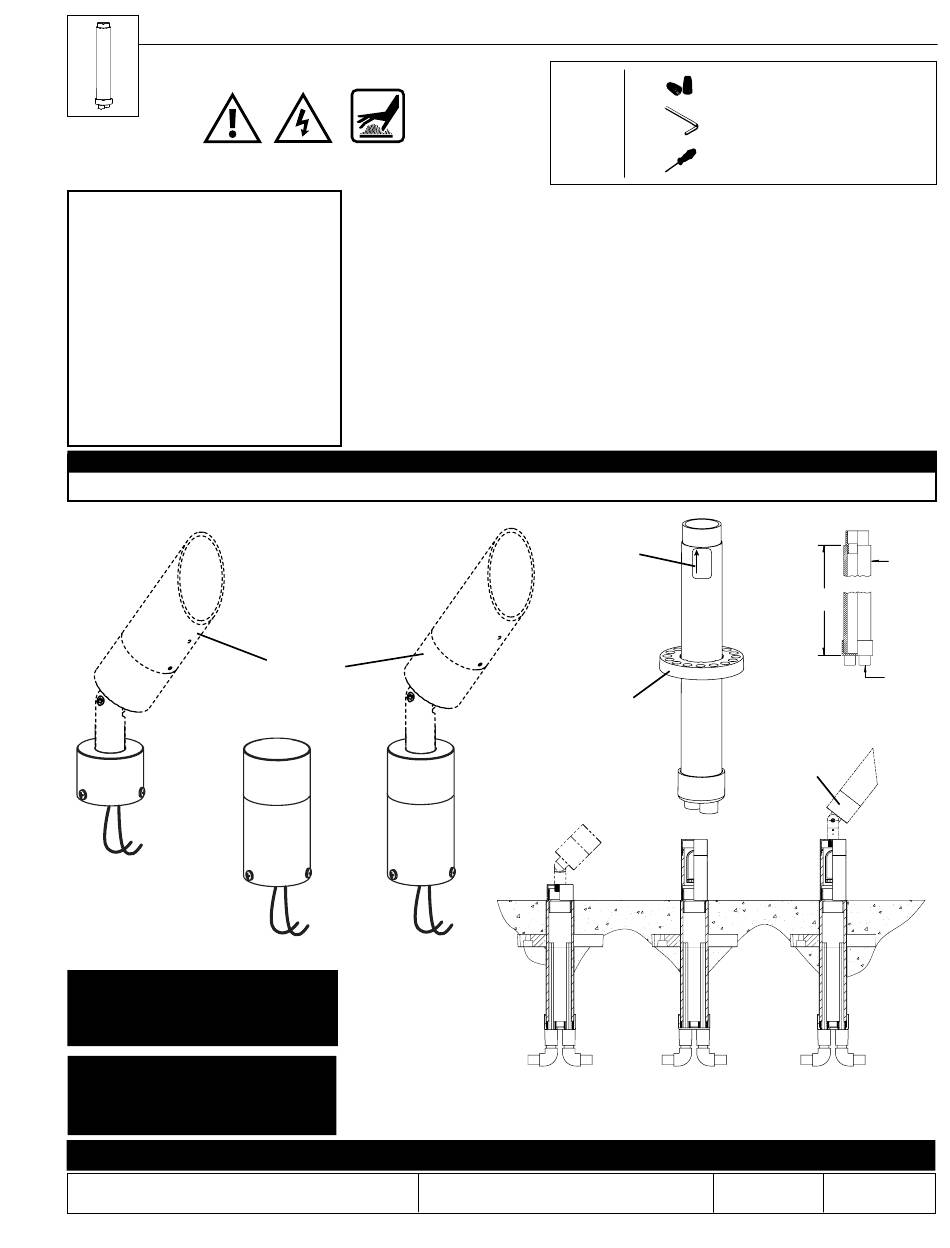

Power Pipe™ Junction Box Installation Instructions
Warning
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
Proper soil preparation is
recommended before installation. See
the DIG-IT guide at www.bklighting.
com/dig-it for more information.
Please refer to the low voltage
design guide at www.bklighting.
com/lvguide before installation for
proper wire selection.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
High Voltage
Hot Surface
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
Follow product label information and instructions.
Qualified Personnel must perform all servicing or relamping of
this product.
Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT LISTINGS AND CERTIFICATIONS
· Suitable for wet locations
Specify Fixture
Separately
40429 Brickyard Drive • Madera, CA 93636 • USA
TOOLS
REQUIRED:
By Others
AND INSTALLATION INSTRUCTIONS
Grade Level Label
Stability Flange™
Grade
Conduit
or UF Cable
12V or
12V or
120V/230V/277V In
120V/230V/277V Out 120V/230V/277V In
Power Pipe Junction Box
With 'B' Cap
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
POWER PIPE™ SYSTEM
Waterproof Wire Connectors
5/64" Allen Wrench
Phillips Screwdriver
Do not block light emanating from product in whole or part,
12" or
as this may cause an unsafe condition.
18"
Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
Replace lamp only with correct wattage and type of lamp
marked on fixture label.
All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
GRADE
12" or
18"
Specify Fixture
Separately
Grade
Conduit
or UF Cable
Conduit
12V Out
120V/230V/277V In
Power Pipe Junction
Power Pipe Junction
Box With Integral
Box With Integral
Transformer For Remote
Transformer With 'B' Cap
Fixtures With 'C' Cap
RELEASED
12-13-16
2" Dia. PVC
Housing
PP Stake 'S'
2" Dia. PVC
Housing
Two 1/2"
PVC Slip
Connectors
PP Junction 'J'
or UF Cable
12V or 120V/230V/277V Out
REFERENCE NUMBER
INS001284
