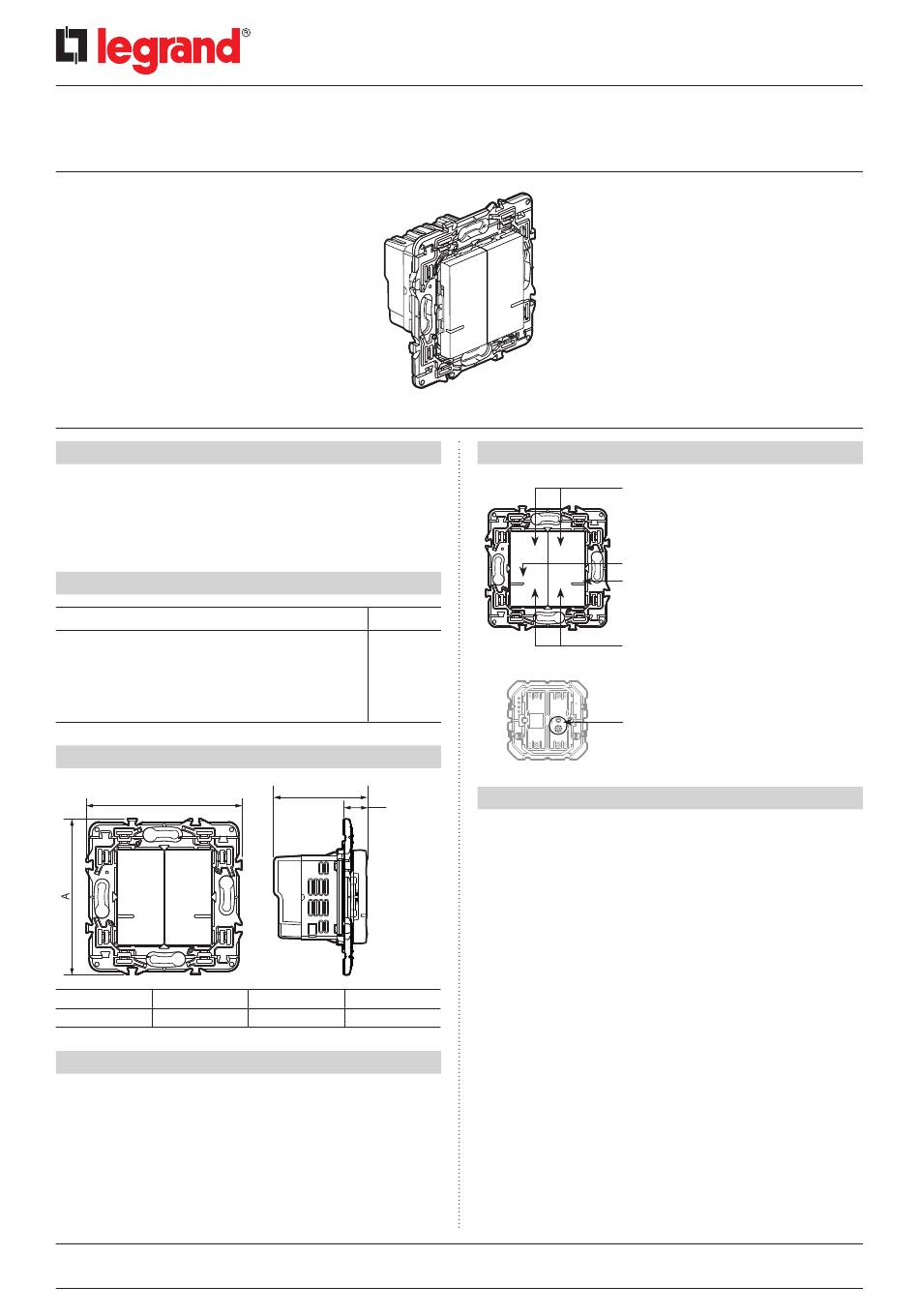

LEGRAND Mosaic 0 777 02LA Manual

Mosaic with Netatmo
TM
Double connected switch with neutral
1. USE
Double switch with neutral for 2 ON/OFF light functions.
Can be used as a two-way switch or to control a lighting group.
Compatible all loads 250 W max. per output.
Easy to install in place of a standard switch in a box 40 mm deep (min.).
Claws and/or screws fixing.
2. RANGE
Description
Product for use in conjunction with the starter pack.
With LED indicator (configuration) and RESET button
(hidden) used to return to factory settings.
Supplied with site protection cover.
To be equipped with cover plate.
3. DIMENSIONS (mm)
B
A B
74 74
4. CONNECTION
Type of terminals: with screws
Terminal capacity: 2 x 1.5 mm or 1 x 2.5 mm
2
Stripping length: 8 mm
Flat screwdriver: 3 mm
Technical data sheet: F03283EN/01
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel.: 33(0)5 55 06 87 87 - Fax: 33(0)5 55 06 88 88
www.legrand.com
White
0 777 02LA
C
D
C D
43.5 11
2
Updated: 28/10/2021
5. OPERATION
ON/OFF
when pressed at the top
LED indicator:
- useful during installation
- illumination function can be activated from
the Home + Control app
ON/OFF
when pressed at the bottom
RESET button
used to return to factory settings
6. TECHNICAL CHARACTERISTICS
6.1 Mechanical characteristics

Protection against impacts: IK 04
Protection against solid bodies/liquids: IP 40
6.2 Material characteristics

Rockers: PC
Colour: White RAL 9003
Mechanism casing: PC
Grid: 6.6 PA + Galfan steel
Claws: Steel
Halogen-free
UV-resistant
Self-extinguishing:
850°C/30 s for insulating components holding live parts in place.
650°C/30 s for other insulating components.
6.3 Climate characteristics

Usage temperature: + 5°C to + 45°C
Storage temperature: 0°C to + 45°C
Cat. No(s): 0 777 02LA
Created: 10/12/2020
1/2
