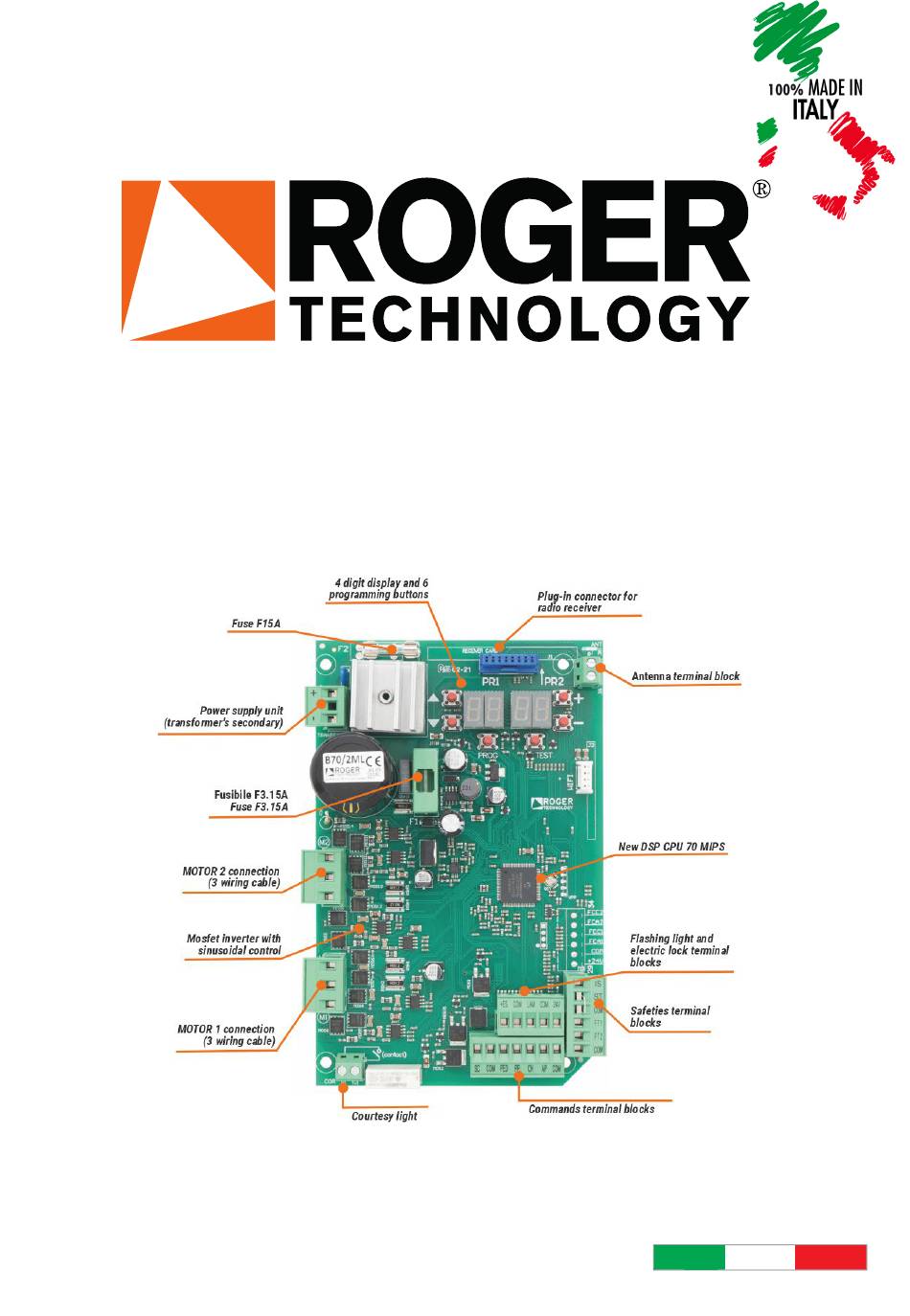

- Page 1 B70 2ML Advanced 24 volts Brushless Control board Attention Installer The manual should be read cover to cover at least once prior to beginning installation Installation flowchart on page MADE IN ITALY...
-
Page 2: Preliminary Checks
Roger Technology WARRANTY Roger Technology Automation Systems warrants the original purchasers or the Roger technology gate(s) opening system for a period of Two Years from the date of purchase (not installation), the product shall be free of defects in materials and workmanship under normal use. -
Page 3: Installation Layout
Installation Layout Control Box Antenna Exit Push Button/Keypad Entry Push Button/Keypad Gate Stop Induction Loop PE Sensor Transmitter PE Sensor Receiver (Not required for Retro Reflective Sensor) Power Source Gate Motor 1 Gate Motor 2 Automation Systems Accessories Requiring Wiring: Keypad - 4 Core PBD/PBD-K - 4 Core PBS/PBS-K - 2 Core... - Page 4 Successful Installation flowchart The below should be followed after the physical installation of the motor as per the Motor installation. Ensure all power connections are Phase 2 Phase 1 completed correctly De-power the system Wire in the Motors According to there Connect the photocell/reflective wiring diagram sensor into the FT1/FT2 depending on...
- Page 5 Quick Reference Guide H93/RX20/I FUSE RECEIVER F15A 1.Power Input (24V AC/DC) TRANSFORMER 2.Parameter display mode PROG TEST F3.15mA WIFI 3.Receiver Chip FUSE F3.15A 4.Command and safety terminal block 5.Motor 1 6.Motor 2 ISEL COM PED AP COM Command and safety terminal block RG58 max 10 m Antenna ISEL...
-
Page 6: High Voltage
Internal Transformer,Wiring HIGH VOLTAGE ANY High voltage Connections MUST be carried out by a QUALIFIED Electrician. PRIMARIO TRASFORMATORE MONOFASE POT. 150 VA 50/60 Hz Cod. 702_10/0 FUSIBILE CEI 61558-2-6 FUSE SECONDARIO 230 Vac (B70/2ML/BOX) FUSIBILE 2 Core Pre wired Power Cable APC External 24 Volts AC Transformer (Low Voltage Systems) The diagram below will illustrate the low voltage transformer connec on to the control board. - Page 7 Battery Backup ( B71/DC/INT) The Diagram below will illustrate the battery backup connection (B71/DC/INT) module. Ensure the system is de-powerwed before beginning the wiring. 1.Connect the 12v 1200mAh in series, then connect JUMPER TRA 3 E 5 the battery chargers Red and Black cables to the batteries as shown in the figure A .Ensure the terminal 3 and 5 is connected with jumper wire.
- Page 8 Solar System Installation Taking into account that the solar panels maximum cable distance is 20 metres and the maximum distance between the solar box and the gate controller is 10 metres nd a suitable location for the mounting of the box accordingly. Both the solar box and the solar panel are completely weatherproof and can be mounted in complete exposure to the elements.
-
Page 9: Parameter Display Mode
3. Wiring the System to the APC Sun Power Taking into account that the solar panels maximum cable distance is 20 metres and the maximum distance between the solar box and the gate controller is 10 metres nd a suitable location for the mounting of the box accordingly. Both the solar box and the solar panel are completely weatherproof and can be mounted in complete exposure to the elements. - Page 10 Parameter Display Mode COMMAND STATUS SAFETY DEVICE STATUS COS1 COS2 POWER STOP Command status: AP - Open, PP - Step Mode ,CH - Close, PED - Par al opening, ORO - Clock are normally OFF. They will illuminate when command is received. Safety Device Status:FT1 and FT2 - Photocell, COS1 and COS2- sensing edge, FA- gate open limit, FC-gate closing limit and SB- release handle open are normally ON.
- Page 11 Step 2: Selecting the System to Single Gate/Double Gate. Select the number of motor installed with parameter 70. Single gate is 70 01 and for Double gate is 70 02. Step 3 : Install the Mechanical stops in both the Open and Closed positions. Step 4 : Move the Gate into closed position.
- Page 12 Pairing & Deleting Wireless equipment(Remotes and keypads) Pairing wireless Equipment L1 L2 - Press the P1 or P2 once (Depending on the function to be enabled) on the receiver. - The LED on the receiver flashes slowly, Now press the desired button on the Remote. PR1PR2 - Then LED remains ON for a 1 Second and the remote is stored.
- Page 13 Connecting a PE Sensor (APC-PE2000) APC-PE2000 PE sensor (Transmitter & Receiver) must be connected back to the control panel. Install the PE2000 Photoelectric sensor on the first entry point of the driveway from post to post at approx. 500mm above ground level.
- Page 14 • LINK 2 wiring connections Set to “Inching” 2 Seconds for BOTH relays COM PED PP AP COM Full Gate opening connect to Relay2(N/O) Pedestrian Gate opening connect to (optional) Relay1(N/O) Remootio3 Connection Full Gate opening connect to PP (Start) Pedestrian Gate opening connect to PED (P.Start) COM PED PP AP COM...
- Page 15 Connecting an APC Mondo Wi-Fi Keypad (APC-WF-KP) Unlike a push button entry switch using a keypad can provide a much higher security for access control for guests, workers, tenants etc. Using a keypad will allow you to manage the users by adding and deleting as required. Its backlit illumination also allows for ease of use at night. Furthermore the keypad can be connected to your Wi-Fi network and can be controlled anywhere in the world through the APP .
- Page 16 Connecting an Electric Lock Ensure the transformer is NOT powered on before proceeding with any low voltage connections ES Lock + COM Lock - You can wire to either side of the coil as shown in the illustrations above. When installing you must install both wires Side-By-Side. The pre-installed capacitor must remain installed Electric lock setting can be Enabled by parameter 28 and 29.
