Safety Instructions
• DO NOT obstruct the fixture's air vents.
• DO NOT install the light fixture in damp locations.
• DO NOT disassemble the light fixture. This will void the warranty.
• DO NOT look into the light source. Be cautious of the high-intensity beam.
• Use a safety cable (not included) when rigging the light fixture overhead.
• Shields and lenses shall be changed if they have become visibly damaged.
• If damaged, the luminaire must be repaired or replaced before further use.
• Only use Fiilex-approved power supply and accessories. Failure to do so may damage the fixture
and will void the fixture's warranty.

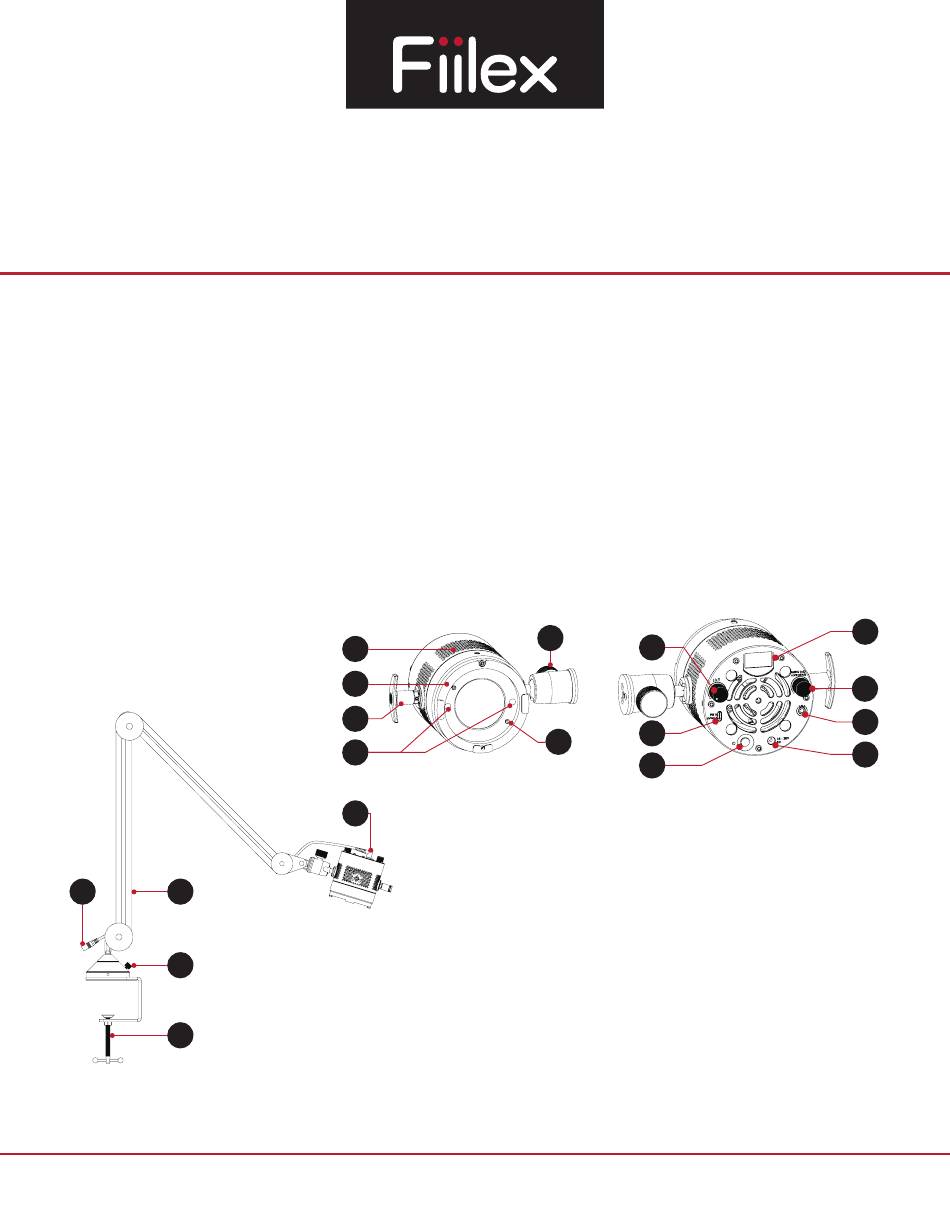

Parts Diagram
14
17
16
15
1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com
V3
User Guide
1
2
3
4
18
1. Vent Holes
2. Foam Rubber Bumper
3. T Handle
4. Accessory Locking Magnet
5. Accessory Locking Pin
6. Ball Joint Handle
7. INT Knob
8. USB Type-C Port
(For updating firmware/RPU)
9. On / Off Button
6
7
8
5
9
10. OLED Display
11. Menu Knob
12. DMX Output (TRRS)
13. DC Input Port (14-30V)
14. Power Cable
15. Clamp
16. Rotation Locking Knob
17. Adjustable Arm
18. DC Power Plug
10
11
12
13
031725A
www.fiilex.com
Advertisement
Related Manuals for Fiilex V3
Summary of Contents for Fiilex V3
- Page 1 • Shields and lenses shall be changed if they have become visibly damaged. • If damaged, the luminaire must be repaired or replaced before further use. • Only use Fiilex-approved power supply and accessories. Failure to do so may damage the fixture and will void the fixture’s warranty.
- Page 2 360° Rotate the adjustable arm (3) to desired location and twist the Twist the ball joint handle (5) counter-clockwise to release V3 head. rotation locking knob (4) to secure the position of the lamp. After adjusting the V3 head to the desired angle, reverse the process to secure.
- Page 3 Control Panel Guide Control panel overview OLED Panel Menu Knob INT Knob REMOTE FW Port DMX Input Port ON/OFF Button DC 14-30V Intensity Controls Menu Knob Controls * Use the INT Knob to modify brightness in any mode * Use the menu knob to adjust all other parameters, navigate the menu, and change modes.
- Page 4 1x Press Twist 1x Press 4) Repeat process in order to change the rest of the settings. *For advanced mode control and more options, visit the main Fiilex webpage. www.fiilex.com 1689 Regatta Blvd. Richmond, CA 94804 | (510) 620-5155 | fiilex@fiilex.com...
