Krups BW710D51 Manual

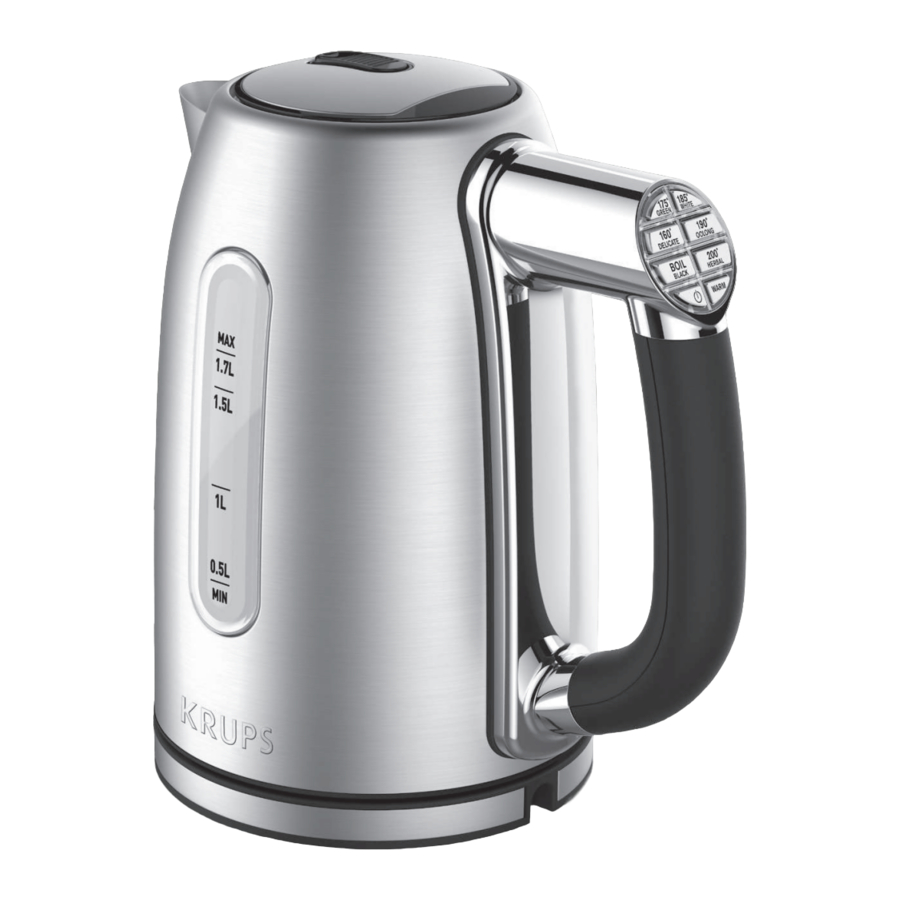

DESCRIPTION

Body
Spout
Handle
Lid
Filter
Power base
Control Panel
ON/OFF button

"BOIL" / "BLACK" tea button
"DELICATE" tea button
"GREEN" tea button
"WHITE" tea button
"OOLONG" tea button
"HERBAL" tea button
"KEEP WARM" button

BEFORE USING FOR THE FIRST TIME

Remove all various packaging, stickers or accessories from both the inside and outside of the kettle (do not forget to remove the transparent protective fi lm from the screen).
„ Adjust the length of the cord by winding it under the base. Wedge the cord into the notch. (fig. 1)
„ Before first use, rinse the kettle. Boil water at maximum capacity 2 or 3 times. Throw away the water.

USE

TO OPEN THE LID

„ Press the opening button on the lid. It lifts automatically. (fig. 2 and 3)

To close, press the button down firmly on the lid (fig 6).

PLACE THE BASE ON A FLAT, STABLE, HEAT-RESISTANT SURFACE AWAY FROM WATER SPLASHES AND ANY SOURCES OF HEAT.

„ Kettle is only to be used with the base provided.

FILL THE KETTLE WITH THE DESIRED AMOUNT OF WATER. (fig 4)

Never fi ll the kettle when it is on its base.
„ Do not fi ll it above the maximum level, or below the minimum level. If the kettle is too full, boiling water may spill out (fig 5).
„ Do not use without water.
„ Check that the lid is closed properly before use.

POSITION THE KETTLE ON ITS BASE. PLUG IT INTO THE OUTLET.
TO START THE KETTLE
Press the on/off button on the handle (fig 7).
All the buttons' LED rings will light up.

TO BOIL THE WATER
2 options:

If you would like to boil water, simply press the BOIL/BLACK, the LED light on the side will turn on and fl ash indicating the boiling process has started (fig 8).
If you would like to choose your own temperature (160°/DELICATE 175°/GREEN - 185°/WHITE - 190°/OOLONG - 200°/HERBAL), press the button associated to your desired temperature, the LED light on the side will turn on and fl ash to indicate the heating process has started.(fig 9).
- „ Once the temperature has been chosen, the heating cycle will begin automatically and will stop once the selected temperature has been reached (accurate to +/- 6°F).
- „ To stop the cycle once it is under way, press ON/OFF button.

KEEP WARM FUNCTION

„ Your kettle has a KEEP WARM function (fig 10). Please select your desired temperature before press the "Warm" button. The water will be heated to the selected temperature and then kept at this temperature for 30 minutes.
„ The maximum permitted temperature for the Keep Warm function is 200°F.
NOTE
„ After 30 minutes, the power will cut off itself.
„ If you use the TEMP button to select a temperature lower than that of the water already in the kettle, the function will not be activated and the cycle will not start.
Example: if the water is 195°F, you will not be able to start cycles for temperatures of 140°F - 155°F - 175°F - 185°F.

Recommended temperatures:

160°F (71°C) DELICATE
175°F (79°C) GREEN
185°F (85°C) WHITE
190°F (88°C) OOLONG
200°F (93°C) HERBAL
212°F (100°C) BLACK/BOIL

THE KETTLE WILL SWITCH OFF AUTOMATICALLY

„ As soon as the water reaches boiling point or the chosen temperature.
„ Do not leave water in the kettle after use as this quickens the formation of scale.

RECOMMENDATIONS FOR USE

„ Although all teas actually come from the same bush (camellia sinensis), their taste and type vary according to their region of production, method of processing (different fermenting, and drying processes and rolling techniques exist) and grade (whole or broken leaves, fannings and dust).
- Green tea: Rolled dried leaves, which are chopped and lightly roasted to prevent them from fermenting. Leave to brew for 3 minutes only. Green teas have a subtle flavour, often bitter, and very pale in color.
- Black tea: Made from older leaves that are rolled, dried and fermented for a considerable period. Brew for 5 minutes (or longer for Turkish or Russian tea). Gives a powerful taste and a superb coppery color.
- Oolong tea: Midway between green and black tea. Slightly fermented. Brew for 7 minutes. Lighter in taste and paler than black colour.
„ Although purists drink tea plain, you may prefer to add cold milk to your cup before pouring in the tea (with Indian or Ceylon tea), or add sugar and lemon (with green or flavoured teas).

CLEANING AND MAINTENANCE

CLEANING YOUR KETTLE.

„ Unplug your kettle.
„ Let it cool down and clean it with a damp sponge.
„ Never immerse the kettle, its base, the cord or the electric plug in water: the electrical connections or the switch must not come into contact with water.
„ Do not use scouring pads.

CLEANING THE FILTER (fig 11).

„ The removable filter consists of a mesh to retain the particles of scale and prevent them from falling into your cup when pouring. This filter neither treats nor removes the hardness of the water. Using the filter will not change water quality. With very hard water, the filter can clog very quickly (10 to 15 uses). It is important to clean it regularly. If it is wet, put it under a running tap, if dry, then brush it gently. Sometimes the lime scale will not detach itself; it will then need descaling.

DESCALING

„ Descale regularly, preferably at least once a month or more frequently if your water is very hard. Temperature detection in the kettle may be affected by limescale.

To descale your kettle.

„ Using white vinegar which can be bought from hardware stores:
- Fill the kettle with 2 cups (0.5 L) of white vinegar,
- Leave to stand for 1 hour without heating.
„ Using citric acid:
- Boil 2 cups (0.5 L) of water,
- Add 1 3/4 tablespoons (0.88 ounces) of citric acid and leave to stand for 15 min.
„ Empty your kettle and rinse 5 or 6 times. Repeat if necessary.

To descale your filter.

„ Soak the filter in white vinegar or diluted citric acid.
„ Never use a de-scaling method other than what is recommended above.

IN THE EVENT OF PROBLEMS

THERE IS NO EVIDENT DAMAGE TO YOUR KETTLE

„ The kettle does not work
- Check if the kettle is properly connected.
- The kettle has been switched on without water or an accumulation of scale has caused the overheat cut-out to operate: allow the kettle to cool and fi ll it with water. Descale first if scale has accumulated.
„ Switch it on: the kettle should start working again after about 15 minutes.

IF YOUR KETTLE HAS BEEN DROPPED, IF IT LEAKS OR IF THERE IS VISIBLE DAMAGE TO THE POWER CORD, THE PLUG OR THE BASE OF THE KETTLE.

„ Return your kettle to your After-Sales Service Center, only they are authorised to carry out repairs. See the warranty conditions and list of centers in the booklet supplied with your kettle. The type and serial number are shown on the bottom of your kettle. This warranty covers manufacturing defects and domestic use only. Any breakage or damage resulting from failure to comply with the instructions for use is not covered by the warranty.
„ The manufacturer reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer.
„ Do not use the kettle. No attempt must be made to dismantle the kettle or its safety devices.
„ If the supply cord is damaged, it must be replaced by the manufacturer, its after-sales service center or a similarly qualified person, in order to avoid any danger.

PREVENTION OF DOMESTIC ACCIDENTS

„ For a child, a burn or scald, even if slight, can sometimes be serious.
„ Educate your children to be aware of hot liquids found in the kitchen. Position the kettle and its supply cord well to the rear of the work surface, out of the reach of children.
„ If an accident does occur, run cold water over the burn immediately and call a doctor if necessary.
„ In order to avoid any accident, do not carry your child or baby at the same time as drinking or carrying a hot drink.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

„ Read all instructions.

Be careful to avoid any spillage on the connector during cleaning, filling or pouring.
Always follow the cleaning instruction to clean your appliance;
- Unplug the appliance.
- Do not clean the appliance while hot.
- Clean with a damp cloth or sponge.
- Never immerse the appliance in water or put it under running water.

  Risks of injuries if you don't use this appliance correctly.

  The heating element surface is subjected to residual heat after use.
„ Do not touch hot surfaces. Use handles or knobs.
„ To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid.
„ Close supervision is necessary when any appliance is used by or near children.
„ Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
„ Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
„ The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
„ Do not use outdoors.
„ The kettle is for household use only.
„ Do not let cord hang over edge of table or counter, or touch hot surfaces.
„ Do not place on or near a hot gas or electric burner, or in a heated oven.
„ Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to the "off" position, then remove plug from wall outlet.
„ Don't press the buttons with wet fingers.
„ Don't clean the control panel with wet cloth or pad in any condition.
„ Do not use appliance for other than intended use.
„ Only use the kettle to heat water. Never heat other liquids in the kettle.
„ Scalding may occur if the lid is removed.

SAVE THESE INSTRUCTIONS

„ Your kettle should only be used with its lid locked, with the base and the antiscale filter supplied.
„ Never touch the filter or the lid when the water is boiling.
„ Never open the lid when the water is boiling.

„ This machine is intended for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center. Visit our website at www.krupsusa.com in the USA or www.krups.ca in Canada or contact your respective country's Consumer Service department for the service center nearest you. To reduce the risk of fire or electric shock, do not attempt to disassemble the machine.
„ Repair should be done at an authorized KRUPS Service Center only.

SHORT CORD INSTRUCTIONS

A short power cord or a detachable power cord is provided to reduce the risks of becoming entangled in or tripping over a longer cord accidentally.
Extension cords are available and may be used if care is exercised in their use.
Extension cord is used:
1. the marked electrical rating of the extension cord should be equal to the electrical rating of the appliance.
2. If the appliance is of the grounded type, the extension cord should be a grounding type 3-wire cord.
3. The longer cord should be arranged so that it will not drape over the counter where it can be pulled on by children or tripped over accidentally. The appliance have a grounding plug.

ADDITIONAL SAFETY INSTRUCTIONS

„ Children should be supervised to ensure that they do not play with the appliance.
„ Your appliance is designed for residential use only.
„ It is not intended to be used in the following applications, and the warranty will not apply for: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
„ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
„ Only plug the kettle into a grounded power outlet. Check that the voltage on the rating plate of the appliance corresponds to that of your electrical installation.
„ Keep the kettle and its power cord away from any source of heat, from any wet or slippery surface and away from sharp corners.
„ Never use the appliance in a bathroom or close to a water source.
„ Never use the kettle when your hands or feet are wet.
„ Place the kettle and its power cord well to the back of the work surface.
„ Always unplug the power cord immediately if you observe any anomaly during operation.
„ Never pull on the power cord to remove it from the wall outlet.
„ Always remain vigilant when the appliance is on, and in particular be careful of the steam coming out of the spout which is very hot.
„ Also be careful as the body of the stainless steel kettle becomes very hot during operation. Only touch the handle of the kettle.
„ Never leave your hand or the power cord on the hot parts of the appliance.
„ Never leave the kettle connected to its base during filling, pouring, cleaning or moving.
„ Always use the filter.
„ Never move the kettle when it is in operation.
„ Protect the appliance from damp and freezing conditions.
„ The warranty covers manufacturing defects and residential use only. Any breakage or damage resulting from a failure to comply with these instructions is not covered by the warranty.
„ Any supply connection error will void the warranty.
„ The warranty does not cover kettles that fail to operate or operate poorly due to a failure to descale the product on a regular basis.
„ Never use scouring pads for cleaning purposes.
„ To remove the anti-scale filter, remove the kettle from its base and allow it to cool down.
„ Never remove the filter when the appliance is filled with hot water.
„ All appliances are subject to strict quality control procedures. These include actual usage tests on randomly selected appliances, which would explain any traces of use.
„ Keep the appliance out of reach of children.
„ Never heat the kettle when it is empty.
„ Never fi ll the kettle past the maximum water level mark, nor below the minimum water level mark. If the kettle is overfilled, boiling water may be ejected.
„ KRUPS reserves the right to modify the characteristics or components at any time in the interests of the consumer.
„ The appliance is only to be used with the stand provided.
„ If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

the safety precautions are part of the appliance. Read them carefully before using your new appliance for the first time. Keep them in a place where you can find and refer to them later on.
