Operations Quick Start Guide
Visibly yours
Lens
Always remove lens cap prior to
use. Refer to User's Guide for
recommended cleaning practices.
Front and left
side view
Input Tray
Used for video, communication
and alternative content
connections to the projector

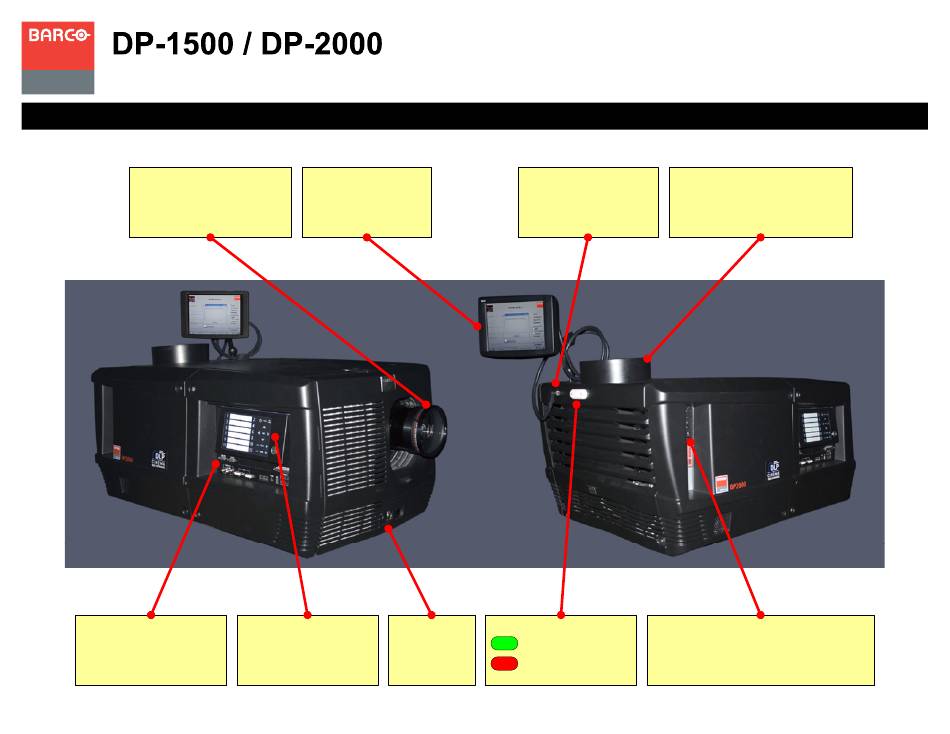

Digital Cinema Projector Components
Touch Panel
Used for normal operation
or for troubleshooting the
projector
Keypad
5-Pin XLR
Used for lamp power, dowser
This connector is
control, macros, lens
currently not
adjustments and test patterns
implemented.
Touch Panel Connector
Provides power and
communication for the
Touch Panel
Tail Light
Green = System OK
Red = Error Condition
https://manual-hub.com/
Exhaust Port
Used to remove heat from the lamp
compartment. Important: The
extraction system must be running.
Rear and left
side view
Mains Power Switch
Powers the projector on and off. This switch shuts
off all electrical connection to the projector. The
lamp must be cooled down before switching off.
P/N R59990110, Rev 01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barco DP-1500
Summary of Contents for Barco DP-1500
- Page 1 Operations Quick Start Guide Visibly yours Digital Cinema Projector Components Lens Touch Panel Touch Panel Connector Exhaust Port Always remove lens cap prior to Used for normal operation Provides power and Used to remove heat from the lamp use. Refer to User’s Guide for or for troubleshooting the communication for the compartment.
- Page 2 Features Macro Buttons Lens Adjustment Lamp Dowser Control Test Pattern Focus Used to preset the Positions the image Press once to turn the Press once to open the Press to enable and Adjusts projector configuration on screen. Used for lamp on. Press once dowser.
- Page 3 Daily Procedures 1. Power Up 3. Play a Movie Procedure Procedure Ensure that the extraction system is on. During normal operations, the server should start the projector automatically. If the projector is not automatically started by the Switch on the Mains Power. Allow up to server, follow the steps below.
- Page 4 Troubleshooting Problem: The lamp does not strike Problem: There is no image on the screen Procedure Check the following potential causes: Procedure Check the following potential causes: Press the Lamp button. Between each strike Check to see if the lamp is on and the attempt, allow 10 seconds (if lamp is cold) or Dowser is open.
