VERSA DESK
WorkNest Cube C - Glass Office Cubicle
VOCC
How can we improve our assembly instructions?
Your comments and suggestions are important to us.
Please e-mail us at: support@versaproducts.com
VERSA DESK
®
American Manufacturing
®
Protected by US Patent No. 10,485,336 & 10,849,424
Assembly Instructions
Lifetime Warranty
REV. 02222024
MADE IN
AMERICA
1 (800) 465-1660
support@versadesk.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Versa Desk WorkNest Cube C VOCC
Summary of Contents for Versa Desk WorkNest Cube C VOCC

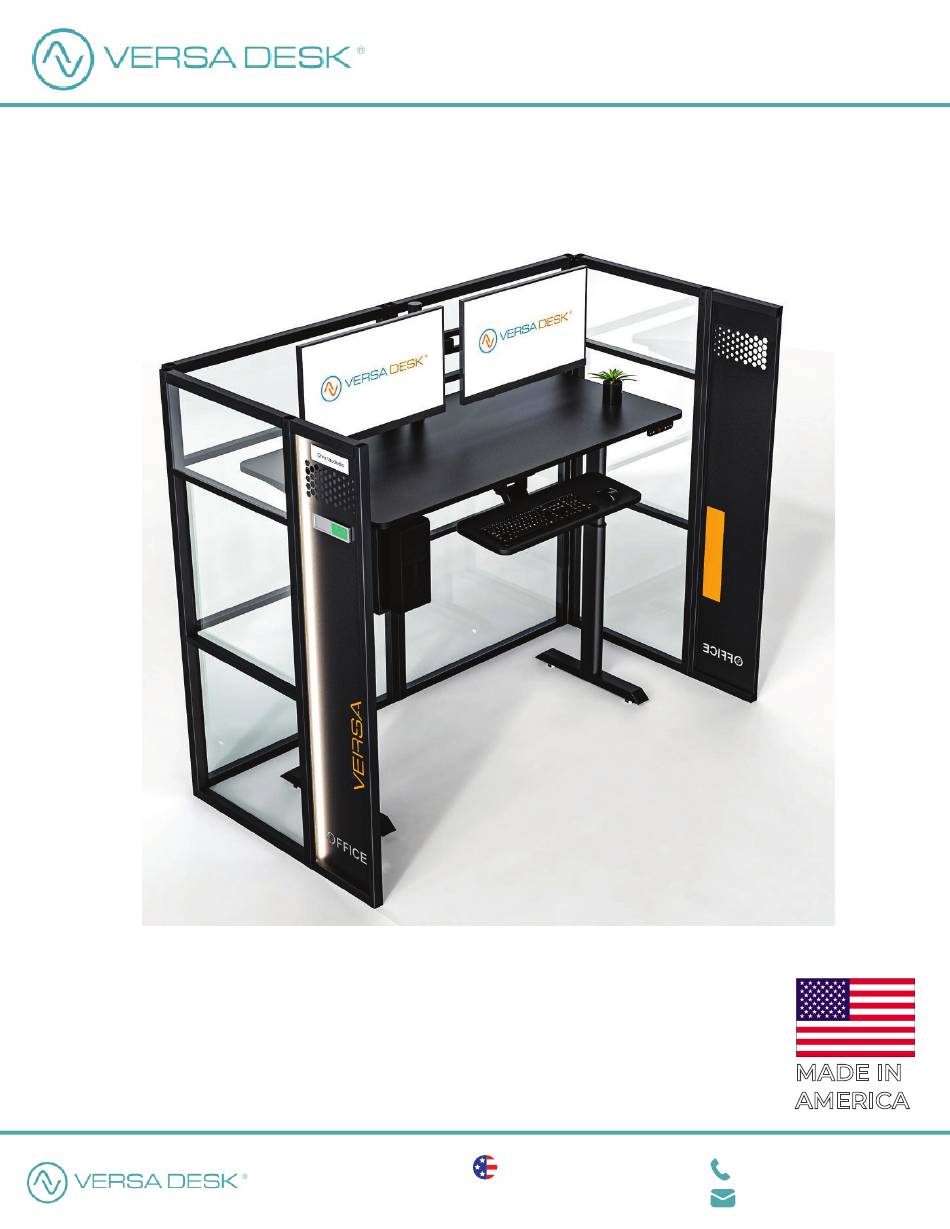

- Page 1 VERSA DESK Assembly Instructions ® WorkNest Cube C - Glass Office Cubicle REV. 02222024 VOCC How can we improve our assembly instructions? MADE IN Your comments and suggestions are important to us. AMERICA Please e-mail us at: support@versaproducts.com 1 (800) 465-1660...
- Page 2 VERSA DESK Assembly Instructions ® Parts 27” Panel 39” Panel End Panel (Left & Right) 2.5” Connecting Bracket 3” Connecting Bracket Connecting Post Inner Corner Outter Corner Connecting Bracket Connecting Bracket 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ®...
-
Page 3: Additional Tools
VERSA DESK Assembly Instructions ® Hardware 1/4-20 x 20mm 4mm Allen wrench Power Supply Furniture Bolt (included) Additional Tools Tape measure Level Attention Assembly is very simple and can be done by (1) person, However, we recommend (2) people for this assembly. - Page 4 VERSA DESK Assembly Instructions ® Connect the 27” Panel to the Connecting Post using (2) Outter Corner Brackets and (4) 20mm Furniture Bolts. 20mm Furniture Bolt Connect the 39” Panel to the 27” Panel using (6) 20mm Furniture Bolts and (2) Inner Corner Brackets.
- Page 5 VERSA DESK Assembly Instructions ® Connect a second 39” Panel to the first using (4) 3” Connecting Brackets and (8) 20mm Furniture Bolts. 20mm Furniture Bolt Repeat Step 1 to connect the 27” Panel to the Connecting Post. Then, connect the second 27” Panel to the 39” Panel.
- Page 6 VERSA DESK Assembly Instructions ® Connect both End Panels to the 27” Panels using (8) 2.5” Connecting Brackets and (16) 20mm Furniture Bolts. 20mm Furniture Bolt Use a Level to make sure that all of the panels are set up properly.
- Page 7 VERSA DESK Assembly Instructions ® Connect the Male end of the provided Power Supply to the Female end of the pre-installed wire on the End Panel. Connect the Power Supply to the outlet to power on the LED Lights Refer to the diagram Below:...
- Page 8 VERSA DESK Assembly Instructions ® Your new cubicle is now ready for use. 1 (800) 465-1660 American Manufacturing Lifetime Warranty VERSA DESK ® support@versadesk.com Protected by US Patent No. 10,485,336 & 10,849,424...
